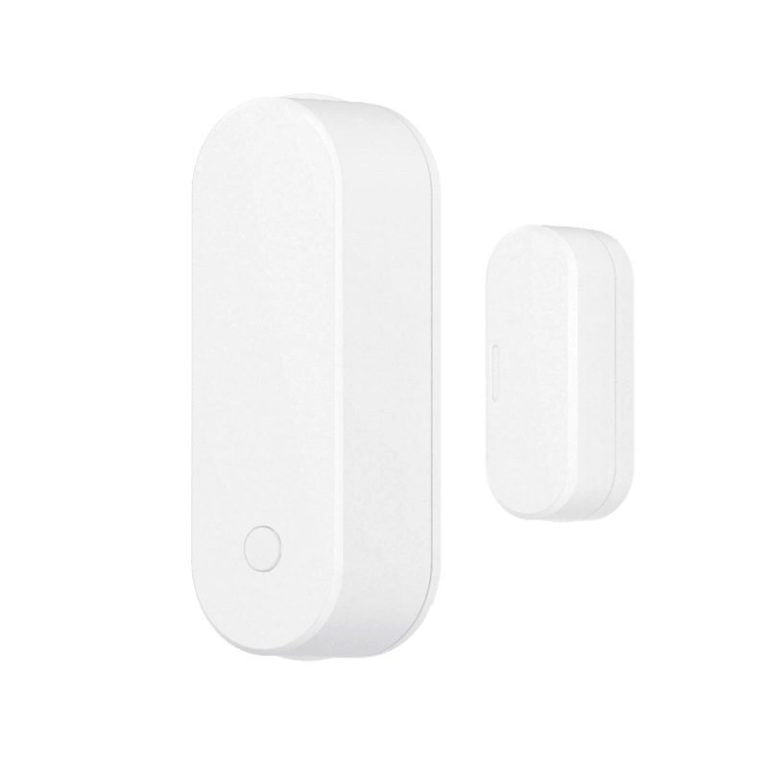

MOKO Smart S03D Bluetooth Door Sensor 150m
Low Stock, 1 left
Product Description
The MOKO Smart S03D is a wireless Bluetooth door and window sensor for reliable open/close monitoring in smart buildings, logistics, warehouses, laboratories and security applications. It uses a Hall-effect magnetic sensor, supports long-range BLE communication up to 150 metres in open areas, and is designed for long-term operation with a replaceable 2600mAh battery.
Product Specifications
| Brand | MOKO Smart |
|---|---|
| Model | S03D |
| Product type | Bluetooth door / window open-close sensor |
| Sensing method | Magnetic / Hall-effect sensor with accelerometer |
| Wireless communication | Bluetooth Low Energy (BLE) |
| Wireless range | Up to 150m in open environment |
| Detection distance | Approximately 20mm |
| Battery | 2600mAh replaceable battery |
| Battery life | Up to 8+ years under default settings |
| Ingress protection | IPX4 |
| Operating temperature | -20°C to +60°C |
| Sensor body dimensions | 77.5 × 27.0 × 24.7mm |
| Magnet dimensions | 40 × 16 × 15mm |
| Weight | 30g |
| Material | PC |
| Installation | 3M tape / bracket |
| Tamper alarm | Supported |
| Certifications / compliance | FCC, CE, RoHS, REACH |
Product Features
- Detects door or window open/close status using a magnetic Hall-effect sensing arrangement.
- Bluetooth Low Energy connectivity supports wireless monitoring and integration with compatible BLE gateway or IoT systems.
- Long-range wireless design provides up to 150m communication distance in suitable open environments.
- Integrated accelerometer and tamper alarm functions support security and asset-monitoring use cases.
- Replaceable high-capacity battery and IPX4 enclosure support long-term deployment in buildings, logistics assets and similar environments.
Package Includes
- 1 × MOKO Smart S03D Bluetooth Door Sensor set
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth Low Energy door and window open/close monitoring
- Up to 150m wireless range in open environments
- Hall-effect magnetic sensing with approximately 20mm detection distance
- Replaceable 2600mAh battery with up to 8+ years service life under default settings
- IPX4 protection with tamper alarm support
