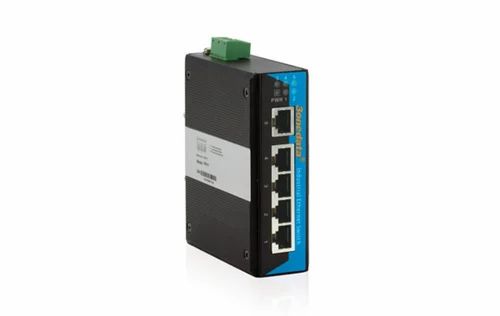

Mootek IES215 5-Port Unmanaged Industrial Ethernet Switch
Lead Time
Product Description
Mootek IES215 5-Port Unmanaged Industrial Ethernet Switch is designed for connecting equipment through the network functions listed below. It suits installers matching existing equipment to the ports, protocols and physical installation this model supports. Ethernet Interface support is listed as 5 × 10Base-T/100Base-TX RJ45. The Mounting specification is DIN rail. The Device Type specification is Unmanaged industrial Ethernet switch. When choosing this industrial networking device, start with the documented configuration.
Check the communication requirements at both ends of the connection. Port format alone does not establish protocol compatibility, and the stated power and mounting arrangement also need to suit the installation. The Number of Ports specification is 5. The Transmission Rate specification is 10/100Mbps. The Forwarding Rate specification is 148,810pps at 100Mbps. The Network Type specification is LAN capable. The Standards specification is IEEE 802.3, IEEE 802.3u.
Applications
Product Specifications
| Brand | Mootek |
|---|---|
| Model | IES215 |
| Device Type | Unmanaged industrial Ethernet switch |
| Number of Ports | 5 |
| Ethernet Interface | 5 × 10Base-T/100Base-TX RJ45 |
| Transmission Rate | 10/100Mbps |
| Forwarding Rate | 148,810pps at 100Mbps |
| Network Type | LAN capable |
| Standards | IEEE 802.3, IEEE 802.3u |
| Management | Unmanaged, plug and play |
| Indicators | LED network-status indicators |
| Protection Rating | IP40 |
| Mounting | DIN rail |
| Operating Temperature | -40°C to 75°C |
| Weight | Approximately 0.34kg |
| Compliance | CE, FCC |
Product Features
- Five-port connectivity:five 10/100Mbps Ethernet ports for connecting industrial controllers, computers and field-network devices is provided by the unit.
- Plug-and-play operation:Allowed by Unmanaged architecture: straightforward deployment without switch configuration.
- Industrial construction:IP40 protection and DIN-rail mounting suit control cabinets and factory installations.
- Wide-temperature operation:Designed to operate from -40°C to 75°C in demanding environments.
- Network visibility:LED indicators simplify monitoring of power and Ethernet-link status.
- Standards compliance:Available functions include IEEE 802.3 and IEEE 802.3u and is listed with CE and FCC compliance.
Package Includes
- 1 × Mootek IES215 industrial Ethernet switch
- 1 × Power cable
- 1 × User manual
