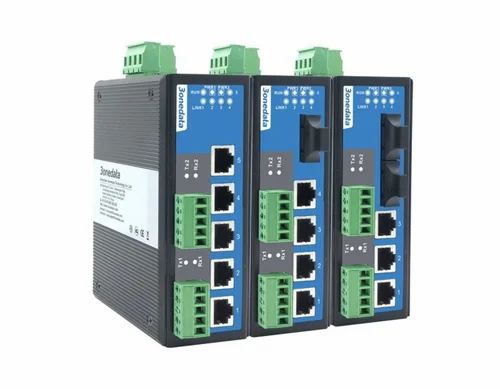

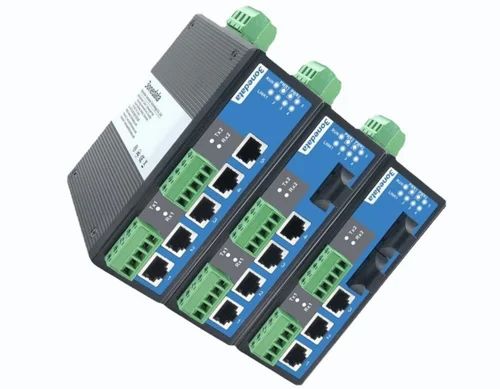

Mootek IES615 5-Port Layer 2 Managed Industrial Ethernet Switch
Mootek IES615 5-Port Layer 2 Managed Industrial Ethernet Switch
Lead Time
Product Description
Mootek IES615 5-Port Layer 2 Managed Industrial Ethernet Switch is designed for connecting equipment through the network functions listed below. It suits installers matching existing equipment to the ports, protocols and physical installation this model supports. The Mounting specification is DIN rail or wall mounting. The Layer 2 Functions specification is 802.1Q VLAN, QoS, RSTP, SW-Ring, port trunking, port mirroring, multicast control. The Switch Type specification is Layer 2 managed industrial Ethernet switch. When choosing this industrial networking device, start with the documented configuration.
Check the communication requirements at both ends of the connection. Port format alone does not establish protocol compatibility, and the stated power and mounting arrangement also need to suit the installation. The Ethernet Ports specification is 5 × 100M copper/fiber combination depending on series configuration. The Serial Ports specification is 2 × RS-232/RS-485. The Management specification is CLI, Web, Telnet, SNMPv1/v2c. The Serial Modes specification is TCP Server, TCP Client, UDP, TCP Auto, RealCom, Advanced TCP Server, Advanced UDP. The Serial Sessions specification is Up to 4 TCP/UDP sessions per serial port.
Applications
Product Specifications
| Brand | 3onedata / supplied by Mootek |
|---|---|
| Model | IES615 |
| Switch Type | Layer 2 managed industrial Ethernet switch |
| Ethernet Ports | 5 × 100M copper/fiber combination depending on series configuration |
| Serial Ports | 2 × RS-232/RS-485 |
| Management | CLI, Web, Telnet, SNMPv1/v2c |
| Layer 2 Functions | 802.1Q VLAN, QoS, RSTP, SW-Ring, port trunking, port mirroring, multicast control |
| Serial Modes | TCP Server, TCP Client, UDP, TCP Auto, RealCom, Advanced TCP Server, Advanced UDP |
| Serial Sessions | Up to 4 TCP/UDP sessions per serial port |
| Alarm | Power/port link-failure alarm with relay output |
| Mounting | DIN rail or wall mounting |
| Operating Temperature | -40°C to 75°C |
| Cooling | Fanless |
| Weight | Approximately 1kg |
Product Features
- Integrated networking:Combines five 100M Ethernet ports with two RS-232/RS-485 serial interfaces.
- Layer 2 management:Available functions include VLAN, QoS, multicast filtering, trunking, mirroring and bandwidth control.
- Fast redundancy:SW-Ring and RSTP help maintain network availability during link failures.
- Flexible administration:Available functions include CLI, Web, Telnet and SNMP management.
- Serial networking:Supported by Each serial port: up to four TCP or UDP sessions and multiple operating modes.
- Industrial reliability:Fanless construction, alarm relay and -40°C to 75°C operation suit harsh installations.
Package Includes
- 1 × IES615 managed industrial Ethernet switch
- Power connection accessories
- User documentation/resource access
Frequently Asked Questions
What is the Mootek IES615 5-Port Layer 2 Managed Industrial Ethernet Switch used for?
What are its main features?
What specifications should I check before choosing this product?
Which interfaces or communication protocols does it use?
What is included in the package?
