Product Description

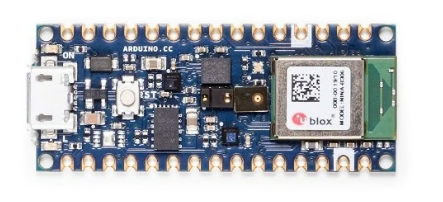

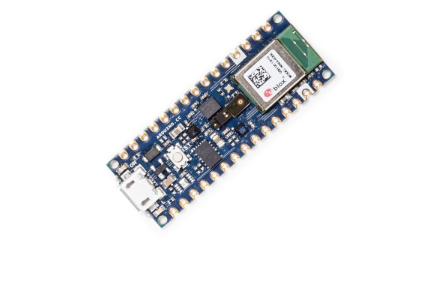

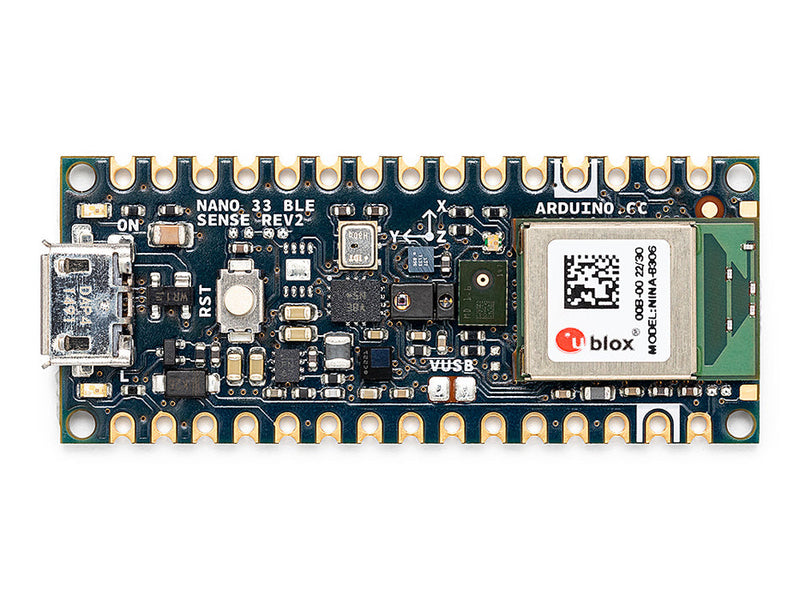

The Official Arduino Nano 33 BLE Sense Rev2 (ABX00069) is a compact, AI-enabled development board built in the classic 45 × 18mm Arduino Nano form factor. It is based on the Nordic nRF52840 microcontroller in a u-blox NINA-B306 module, featuring a 32-bit Arm Cortex-M4F CPU at 64MHz, 1MB Flash, 256KB SRAM, ultra-low-power modes and Bluetooth 5 Low Energy wireless connectivity.

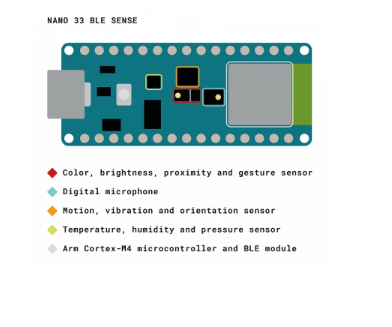

The board integrates a wide range of onboard sensors: the BMI270 3-axis accelerometer and 3-axis gyroscope together with the BMM150 3-axis magnetometer form a 9-axis IMU for motion sensing; the HS3003 measures ambient temperature and humidity; the LPS22HB measures barometric pressure; the APDS-9960 senses proximity, gestures, ambient light and RGB color; and the MP34DT06JTR digital MEMS microphone enables sound recognition applications.
With 14 digital I/O pins, 8 analog inputs, UART, I2C, SPI, USB connectivity, Arduino IDE and MicroPython support, it is ideal for TinyML and edge AI, wearable devices, gesture and voice interfaces, environmental monitoring and BLE-connected smart sensors. Its compact form factor supports header installation or SMT assembly via castellated pads.
Electrical note: The board uses 3.3V I/O and is not 5V tolerant. Arduino specifies 21V as a maximum input-voltage limit, not the recommended operating voltage. Power via USB or a suitable VIN supply according to the official datasheet.

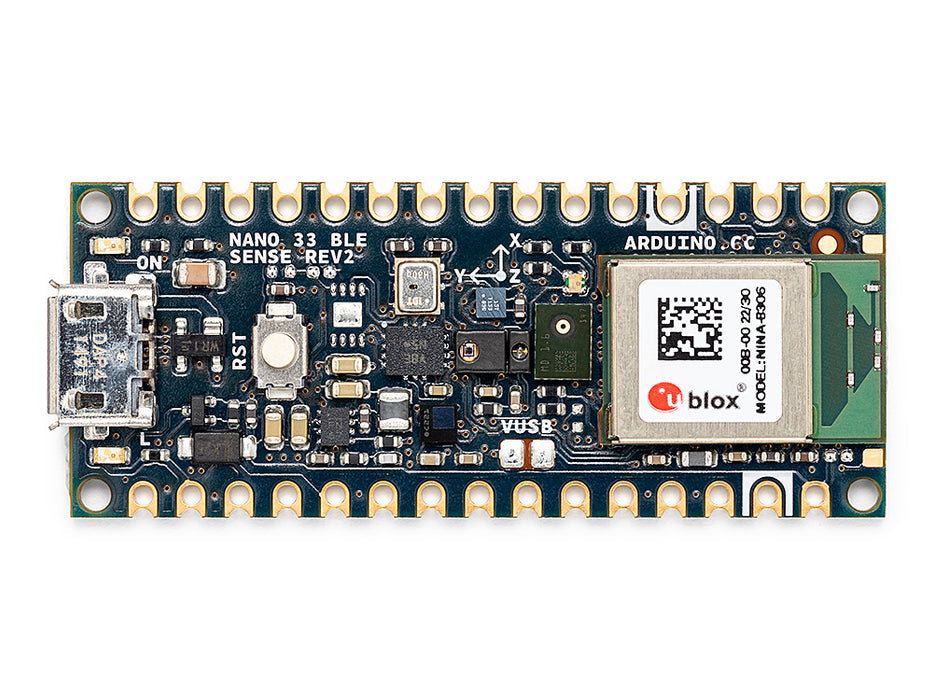

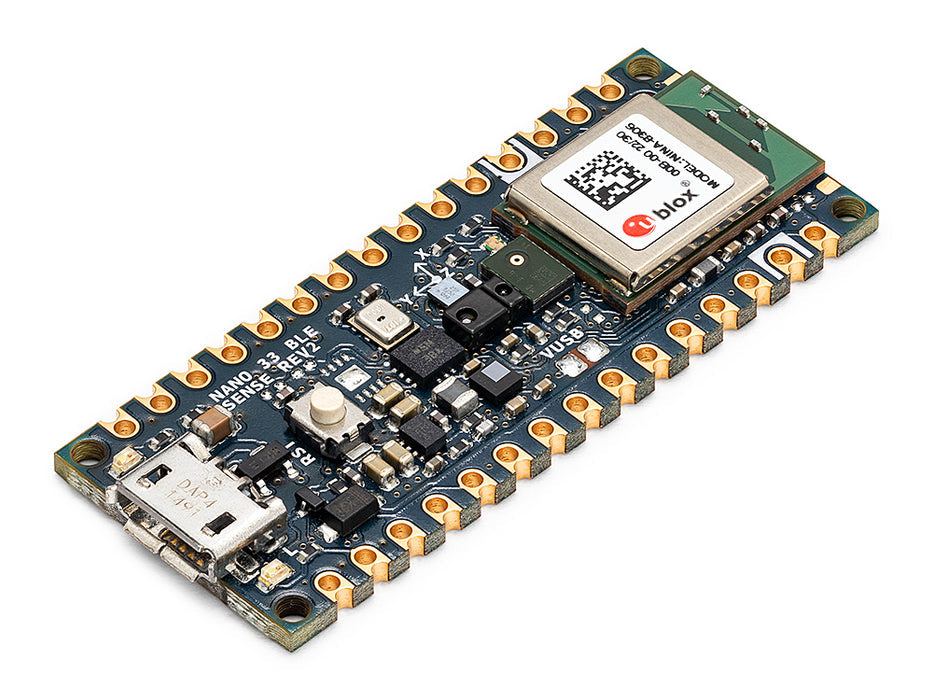

Variant: ABX00069 is the Rev2 board without pre-soldered headers. This listing is for the Nano 33 BLE Sense Rev2, not the different Nano 33 IoT board or the original (Rev1) Nano 33 BLE Sense.
Applications
Product Specifications
| Item Type | Embedded Development Board with Environmental and Motion Sensors |
|---|---|
| OEM / Manufacturer | Arduino |
| Model / Manufacturer Part Number | Nano 33 BLE Sense Rev2 / ABX00069 (without headers) |
| Microcontroller / Chip | Nordic nRF52840 (NINA-B306 module) |
| Processor | 32-bit Arm Cortex-M4F with FPU |
| Clock Frequency | 64MHz |
| Wireless Communication | Bluetooth 5 Low Energy (BLE), 2.4GHz; NFC-A tag support |
| Processor Flash Memory | 1MB |
| SRAM | 256KB |
| EEPROM | None |
| Logic / Operating Voltage | 3.3V, not 5V-tolerant |
| VIN / Input Voltage | 21V maximum input-voltage limit (not nominal operating voltage); USB or VIN power |
| DC Current per I/O Pin | 15mA |

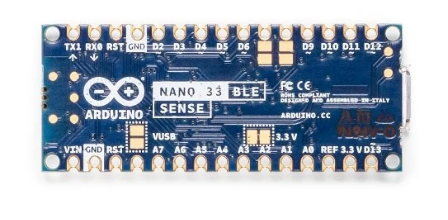

| Digital I/O Pins | 14 |
| PWM Pins | Available on digital pins |
| Analog Input Pins | 8, 12-bit ADC (200ksps); A4/A5 shared with I2C |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| USB | Native USB through nRF52840; Micro-USB connector |
| 9-Axis IMU | BMI270 (3-axis accelerometer + 3-axis gyroscope) and BMM150 (3-axis magnetometer) |
| Digital Microphone | MP34DT06JTR |
| Barometric Pressure Sensor | LPS22HB |
| Temperature & Humidity Sensor | HS3003 |
| Gesture / Proximity / Light / Colour Sensor | APDS-9960 |
| Security Hardware | nRF52840 Arm CryptoCell CC310 and hardware cryptographic support |
| Board Dimensions | 45 × 18mm |
| Weight | Approx. 5g |
| Shipping Weight | 0.03kg |
| Shipping Dimensions | 8 × 6 × 2cm |
| Regulatory Conformity | CE, UKCA, REACH / RoHS manufacturer documentation |
Product Features
- Run on-device TinyML applications for sound, gesture and motion recognition
- Bluetooth 5 LE connectivity and NFC-A tag support
- Ultra-low-power Nordic nRF52840 with Arm Cortex-M4F and hardware cryptography
- 9-axis inertial and magnetic sensing for orientation and wearables
- HS3003 ambient humidity and temperature measurement
- LPS22HB barometric pressure monitoring
- APDS-9960 RGB, ambient-light, proximity and gesture sensing
- MP34DT06JTR PDM digital microphone for audio analysis
- Compact 45 × 18mm Nano footprint suitable for headers or castellated SMT assembly
Package Includes
- 1 × Official Arduino Nano 33 BLE Sense Rev2 development board, ABX00069 (without pre-soldered headers)
Frequently Asked Questions
What is Arduino Nano 33 BLE Sense Rev2 ABX00069?
Which sensors are integrated on the Nano 33 BLE Sense Rev2?
Does ABX00069 support Wi-Fi?
Does the ABX00069 version come with soldered pin headers?
What voltage and development environments does it support?
