Physical AI Controllers BL244 EdgePLC RK3576J Industrial AI Edge Computer
Low Stock, 1 left
Product Description

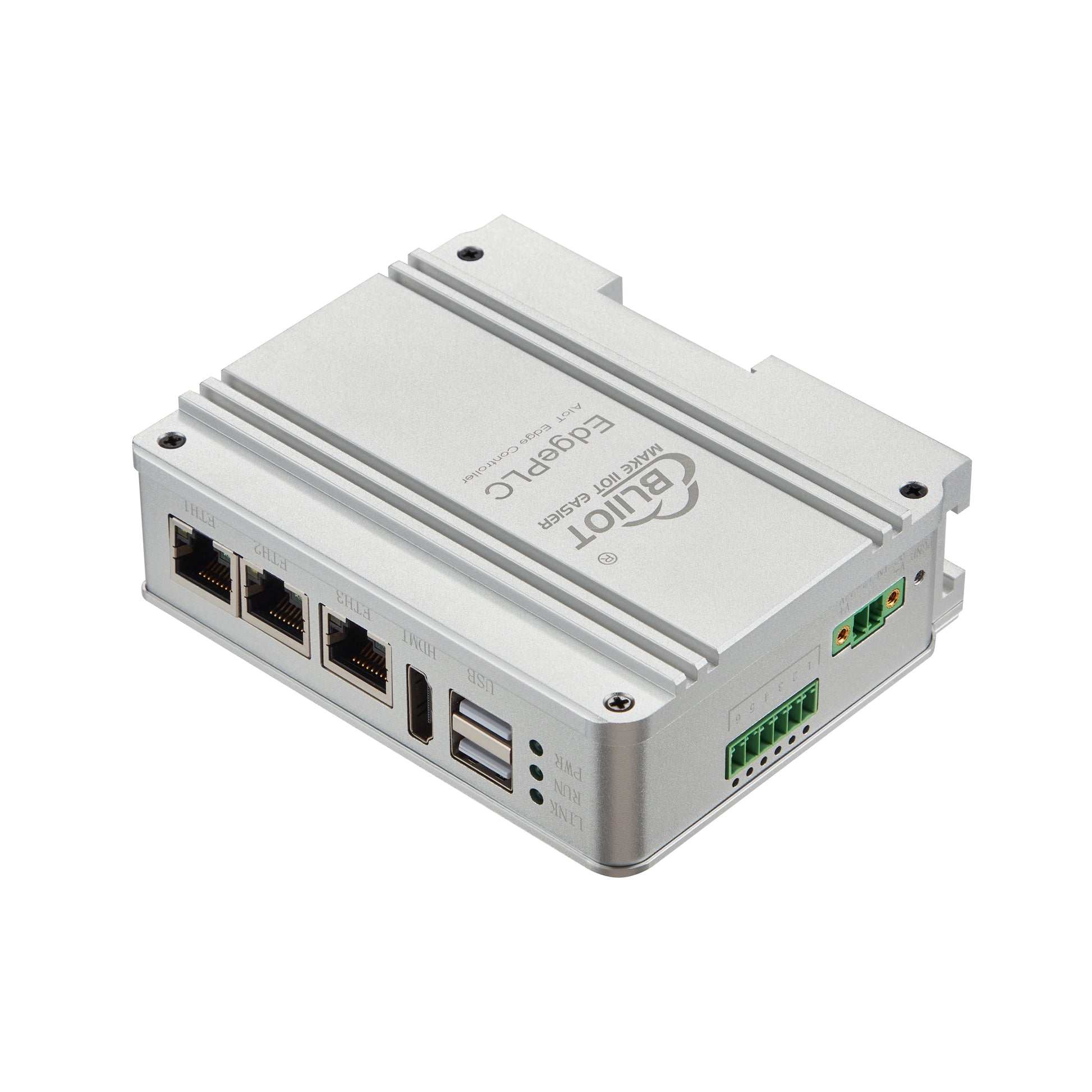

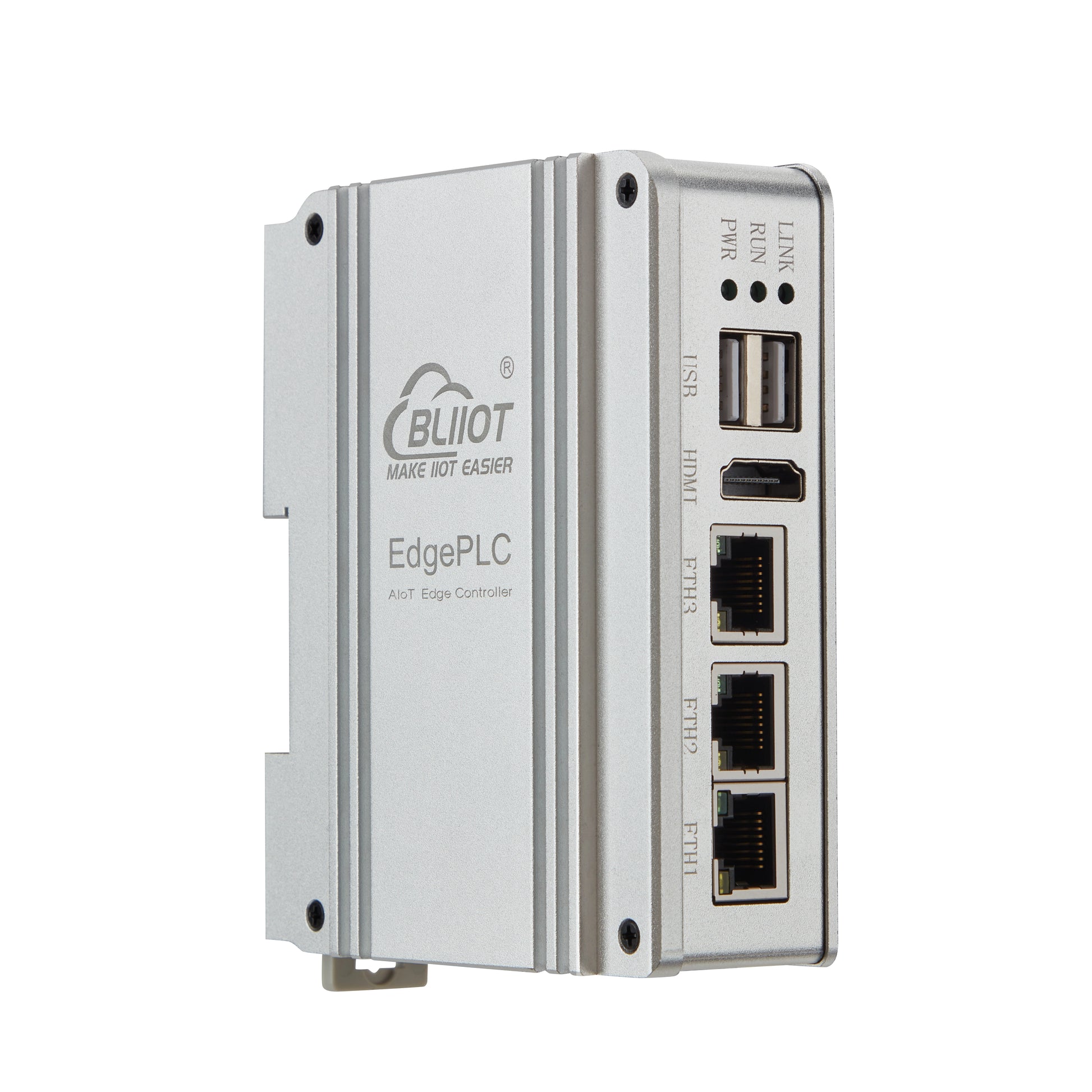

The BL244 EdgePLC is an industrial physical-AI controller that combines deterministic PLC control, high-performance ARM computing, and 6 TOPS edge-AI acceleration in a DIN-rail platform.
Powered by the Rockchip RK3576J/RK3576, it supports modular N-series I/O, real-time Linux, OpenPLC, NexPLC, CODESYS, EtherCAT, Node-RED, Docker, and machine-vision frameworks for robotics, smart energy, and advanced automation.
Applications
Product Specifications
| Model | BL244 EdgePLC |
|---|---|
| CPU | RK3576J/RK3576; 4× Cortex-A72 + 4× Cortex-A53 up to 2.2GHz |
| NPU | 6 TOPS |
| Memory | 2/4/8GB LPDDR4X |
| Storage | 16/32/64GB eMMC; M.2 NVMe |
| Interfaces | Gigabit Ethernet; USB 3.1; HDMI 2.1; RS485/CAN-FD |

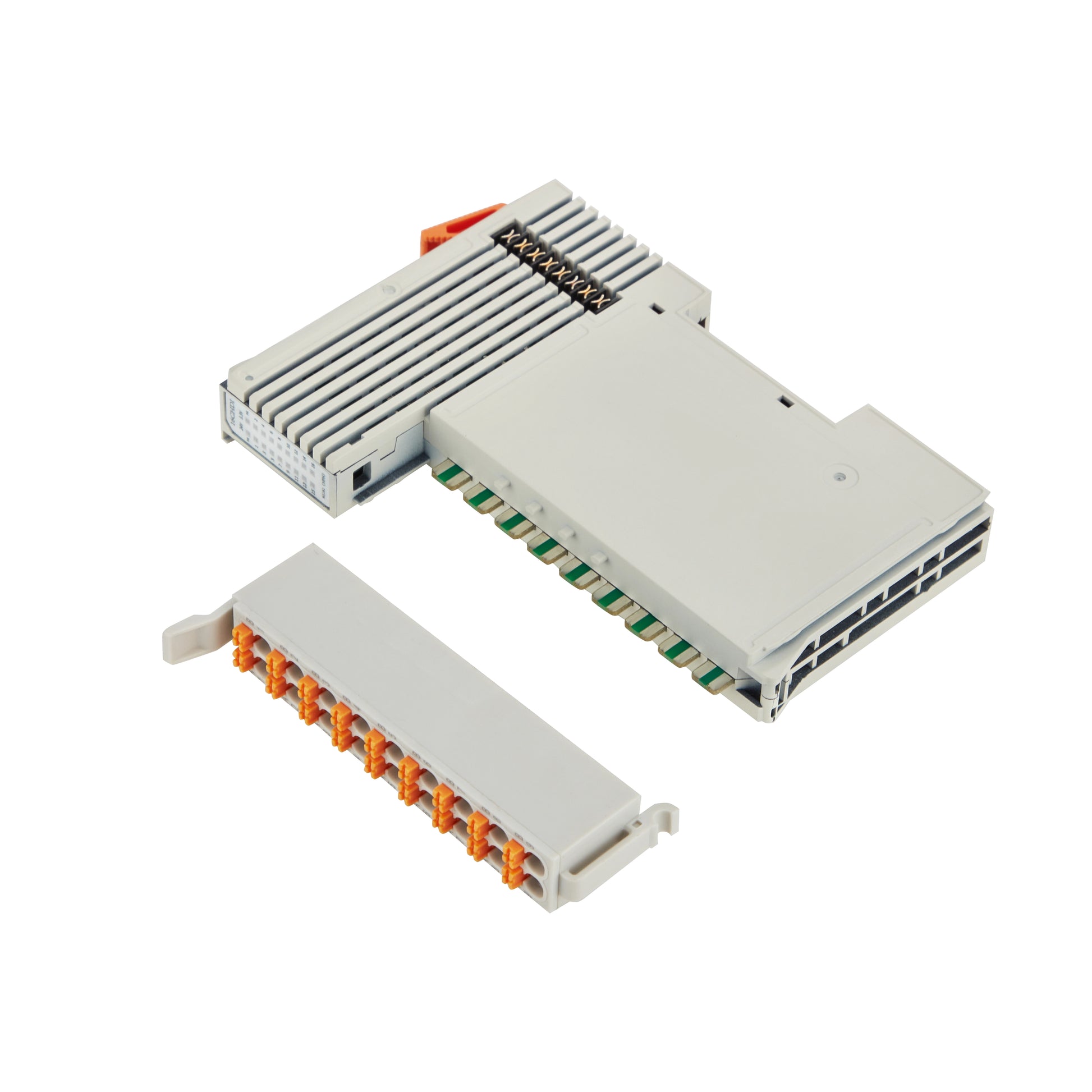

| I/O | Up to 32 N-series modules |
| Software | Ubuntu 20.04; EdgePLC-OS; OpenPLC/NexPLC/CODESYS |
| Protection | IP30; watchdog; reverse-polarity protection |
| Temperature | -40°C to +85°C with RK3576J |
Product Features
- Combines deterministic PLC control, ARM computing and AI inference.
- Supports EtherCAT, Node-RED, Docker, K3s, YOLO, OpenCV and TensorFlow Lite.
- Includes Gigabit Ethernet, USB 3.1, HDMI 2.1, NVMe and optional 4G/5G.
- Modular I/O covers DI/DO, AI/AO, RTD, thermocouple and PWM.
Package Includes
- 1 × BL244 EdgePLC configured to order
- Selected communication and I/O modules
- Terminal connectors and accessories
- Documentation access
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- RK3576J/RK3576 octa-core processor
- 6 TOPS physical-AI NPU
- OpenPLC, NexPLC or CODESYS control
- Up to 32 N-series I/O modules
- -40°C to +85°C industrial operation
