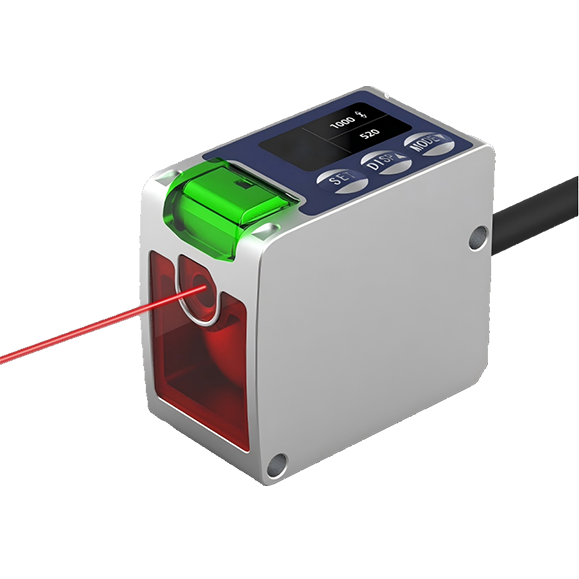

PONO WTA05-5M Laser Distance Sensor, RS485, 12–30VDC, 3 kLux, 650 nm, 1W, Range: 0.05–5m
PONO WTA05-5M Laser Distance Sensor, RS485, 12–30VDC, 3 kLux, 650 nm, 1W, Range: 0.05–5m
Low Stock, 1 left
Product Description
PONO WTA05-5M Laser Distance Sensor — RS485, 0.05–5 m
The PONO WTA05-5M is a compact, high-accuracy industrial laser distance sensor for automation, logistics, robotics, machine positioning and non-contact measurement. With a 0.05 m to 5 m measurement range, ±10 mm accuracy and 5 mm repeatability, it measures distances to target surfaces in automated environments.
The sensor uses a 650 nm, Class 2 laser and can operate under ambient illumination up to 3 klux. Its default measurement frequency is 40 Hz and can be adjusted from 1 Hz up to 2,000 Hz for different sensing and control applications. An RS485 communication interface enables connection to industrial controllers, monitoring systems and gateways.
Designed for rugged installations, the sensor operates from a 12–30 V DC supply and features an IP65-rated enclosure. Its compact 41 × 38 mm footprint and 45 g sensor weight suit space-constrained installations. Manufacturer documentation should be consulted for installation, laser precautions, detailed wiring and protocol configuration.
Product Specifications
| Identification | |
|---|---|
| Item Type | Laser Distance Sensor |
| Model No. / Name | PONO WTA05-5M |
| Measurement Range | 0.05 m – 5 m |
| Accuracy | ±10 mm |
| Repeatability | 5 mm |
| Laser Wavelength | 650 nm |
| Laser Safety Classification | Class 2 (as supplied; verify OEM laser classification documentation) |
| Ambient Light Immunity | 3 kLux |
| Electrical | |
| Supply Voltage | 12–30 V DC |
| Average Current Consumption | 23 mA at 24 V DC |
| Peak Current | 100 mA at 24 V DC |
| Average Power Consumption | 1 W (specified; confirm against the stated 23 mA at 24 V) |
| Communication | |
| Interface | RS485 |
| Communication Protocol | RS485 serial interface (application protocol details to be confirmed from manual) |
| Measurement Frequency | 40 Hz nominal; adjustable 1–2,000 Hz |
| Mechanical | |
| Protection Rating | IP65 |
| Length | 41 mm |
| Width | 38 mm |
| Height | Not specified |
| Product Weight | 45 g |
| Shipping Weight | 0.02 kg (provided figure is less than the product weight; confirm before logistics use) |
| Shipping Dimensions | 10 × 10 × 5 cm |
Product Features
- High Measurement Accuracy: ±10 mm accuracy and 5 mm repeatability for industrial non-contact distance monitoring.
- 0.05–5 m Sensing Range: Suitable for short-range monitoring of machinery, position, product presence and conveying equipment.
- Adjustable Frequency: 40 Hz default measurement frequency, adjustable from 1 to 2,000 Hz.
- RS485 Connectivity: Industrial serial communication interface for integration with control systems and data acquisition equipment.
- Class 2 Laser: 650 nm laser source with stated Class 2 safety classification; follow applicable laser safety precautions.
- Ambient Light Immunity: Designed to tolerate up to 3 kLux of surrounding illumination.
- Compact Lightweight Construction: Approximate width 38 mm, length 41 mm and product weight 45 g.
- IP65 Industrial Protection: Enclosure designed to resist dust and water jets.
Package Includes
- 1 × PONO WTA05-5M Laser Distance Sensor, RS485, 12–30 V DC, 0.05–5 m
