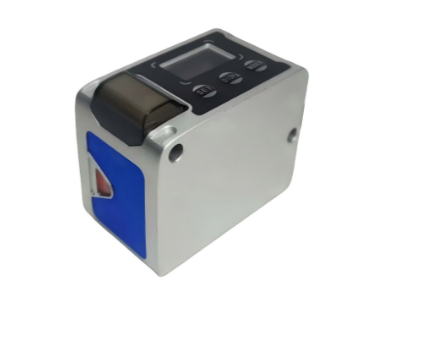

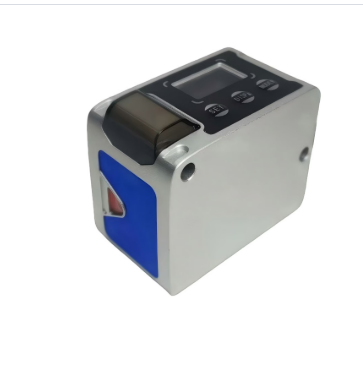

PONO WTA50-50M Laser Distance Sensor, RS485, 12–30VDC, 100Klux, 905nm, 2000Hz, 1.5W, Range: 0.05m–50m
PONO WTA50-50M Laser Distance Sensor, RS485, 12–30VDC, 100Klux, 905nm, 2000Hz, 1.5W, Range: 0.05m–50m
Low Stock, 1 left
Product Description
The PONO WTA50-50M Laser Distance Sensor is a compact, high-performance industrial sensor designed for accurate non-contact measurement in automation, logistics and robotics. Its wide 0.05m–50m measurement range, ±10cm accuracy and fast 2000Hz measurement frequency support stable, real-time distance monitoring in dynamic environments.
The sensor features RS485 communication for integration with industrial controllers and monitoring systems. It operates on 12–30V DC with low 1.5W average power consumption. Strong 100Klux ambient-light immunity and an IP65-rated housing suit challenging industrial conditions. The 905nm Class 1 laser is suitable for industrial non-contact ranging applications.
Typical applications: warehouse automation, robotic positioning, machine monitoring, material handling and object detection.
Product Specifications
| Item Type | Laser Distance Sensor |
|---|---|
| OEM / Brand | PONO |
| Model No. / Name | WTA50-50M |
| Measurement Range | 0.05m–50m |
| Measurement Accuracy | ±10cm |
| Measurement Frequency | 2000Hz |
| Ambient Light Immunity | 100Klux |
| Average Power Consumption | 1.5W |
| Average Current Consumption | 46mA @ 24V |
| Peak Current | 100mA @ 24V |
| Power Supply Voltage | 12–30VDC |
| Communication Protocol / Interface | RS485 |
| Laser Wavelength | 905nm |
| Laser Safety Rating | Class 1 |
| Protection Rating | IP65 |
| Length | 52mm |
| Width | 44mm |
| Weight | 72g |
| Shipping Weight | 0.2kg |
| Shipping Dimensions | 10 × 10 × 5cm |
Product Features
- Long-range non-contact detection up to 50m
- High-speed 2000Hz measurement frequency
- Reliable ±10cm measurement accuracy
- Compact and lightweight 52 × 44mm body
- RS485 industrial communication interface
- IP65 protection for demanding industrial installations
- Low average power consumption of 1.5W
- Easy integration with industrial automation and robotic systems
Package Includes
- 1 × PONO WTA50-50M Laser Distance Sensor, RS485, 12–30VDC, 100Klux, 905nm, 2000Hz, 1.5W, Range: 0.05m–50m
Frequently Asked Questions
What is the PONO WTA50-50M 50m RS485 Laser Distance Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
