Renke RS-SJ-N01R01-1-EX Positioning Water Leakage Sensor
Low Stock, 1 left
Product Description
Industrial positioning water leakage detector for continuous leak monitoring in data centers, warehouses, equipment rooms, archives and other critical facilities. The controller supports RS485 Modbus RTU communication, local LCD indication and relay alarm output, and works with positioning leak-detection cable to identify the approximate leak location.
Product Specifications
| Model | RS-SJ-N01R01-1-EX |
| Power Supply | DC 10–30V |
| Power Consumption | Approx. 0.35W |
| Communication | RS485 / Modbus RTU |
| Display | 128 × 64 LCD |
| Positioning Accuracy | ±(0.5% + 0.5m of sensing-cable length) |
| Relay Capacity | 250V AC, 10A |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 10–95% RH, non-condensing |
| Installation | 35 mm DIN rail |
| Compatible Leak Rope | Approx. 5–200 m |
Product Features
- Model: RS-SJ-N01R01-1-EX
- Communication: RS485 / Modbus RTU
- Power supply: DC 10–30V
- Display: 128 × 64 LCD
- Alarm: Local indication plus relay output
- Compatible sensing cable length: Approximately 5–200 m
- Typical applications: Data centers, warehouses, equipment rooms, archives and other critical facilities
Package Includes
- 1 × Renke RS-SJ-N01R01-1-EX Positioning Water Leakage Sensor
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features

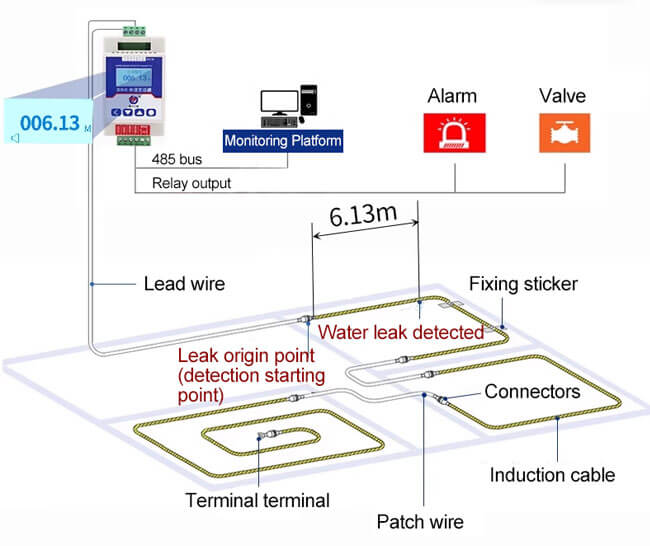

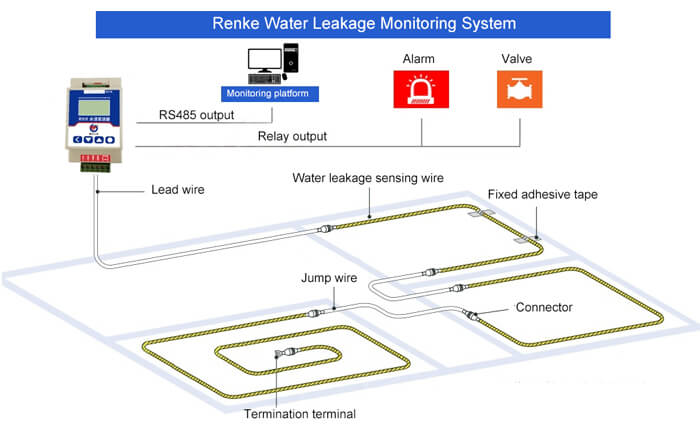

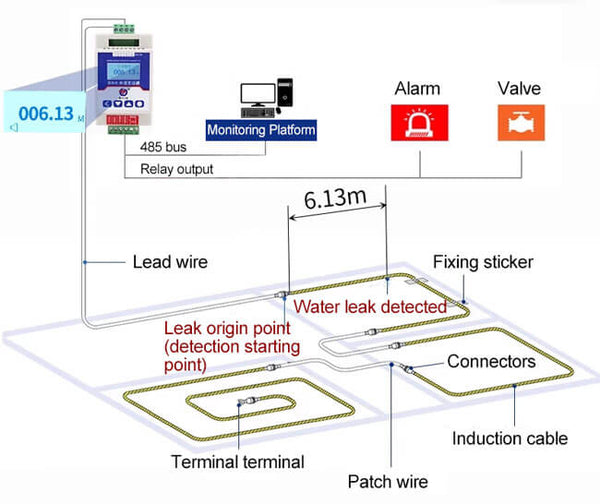

- Positioning leak detection: Detects water leakage and indicates the leak position along a compatible sensing cable.
- RS485 Modbus RTU: Integrates with PLC, SCADA and building-management systems.
- LCD local display: 128 × 64 screen for local status and alarm information.
- Relay alarm output: Supports external alarms and interlock devices.
- Long sensing coverage: Compatible with positioning leak-rope installations from approximately 5 m to 200 m.
- DIN-rail installation: Fits standard 35 mm DIN rail for control-panel mounting.
- Industrial environment: Designed for -30°C to +60°C and non-condensing humidity.
