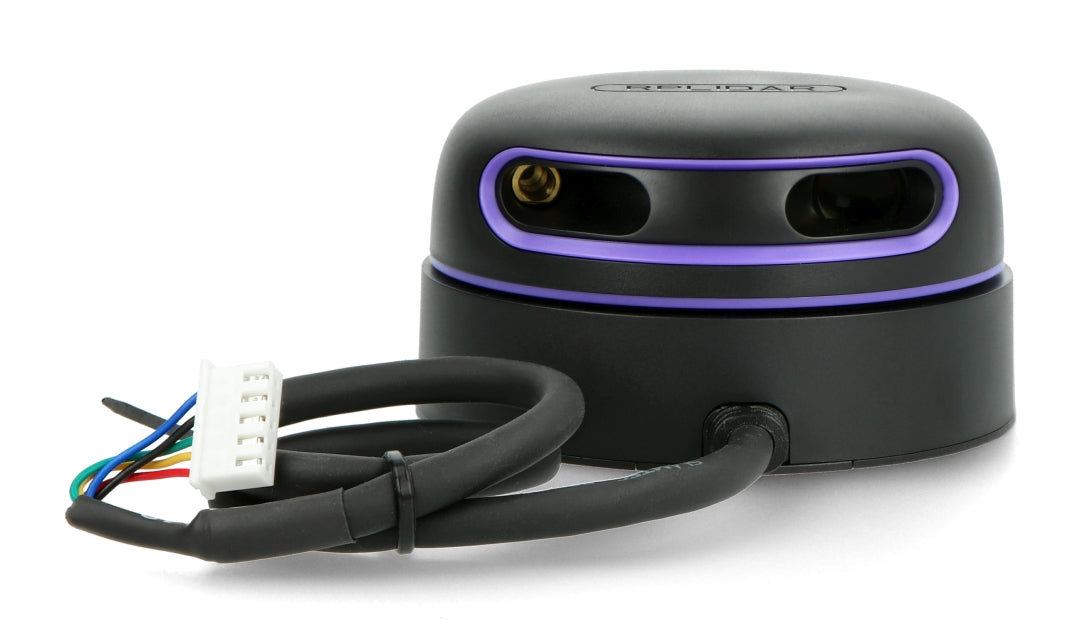

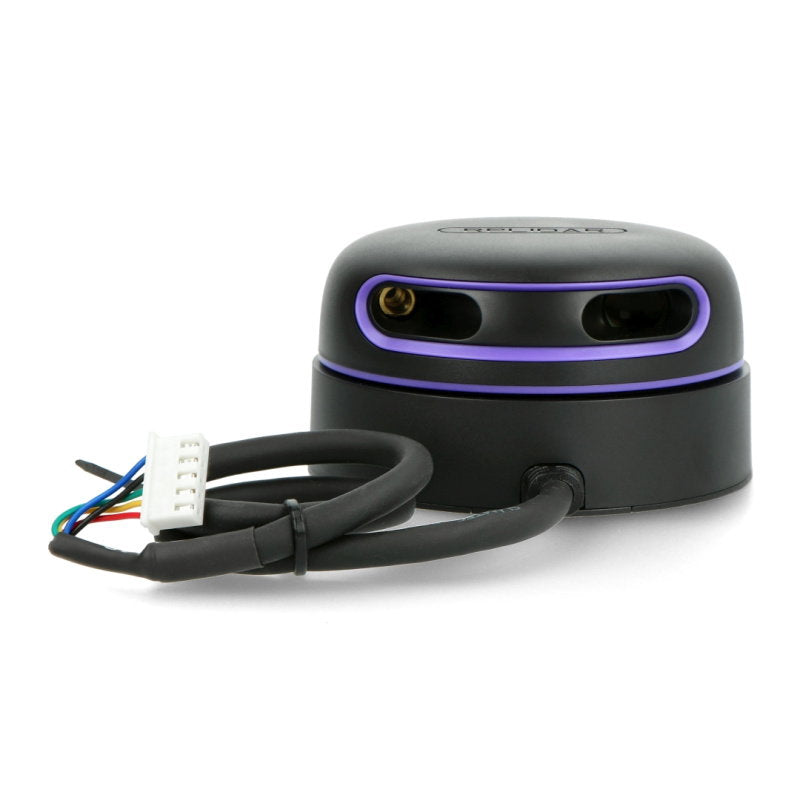

SLAMTEC RPLIDAR A2M12 360° Laser Scanner Kit 12m
Lead Time
Product Description
SLAMTEC RPLIDAR A2M12 is a 360° laser scanner for service robots, SLAM, mapping and autonomous navigation. It provides a 0.2–12 m range, 16,000 samples per second, adjustable 5–15 Hz rotation, 0.225° angular resolution and UART output in a Class 1 laser design.
Product Specifications
| Brand | SLAMTEC |
|---|---|
| Model | RPLIDAR A2M12 |
| Measuring Range | 0.2–12 m |
| Angular Range | 360° |
| Sampling Frequency | 16 kHz |
| Rotational Speed | 5–15 Hz; 10 Hz typical |
| Angular Resolution | 0.225° |
| Laser Safety | Class 1 |
| System Voltage | 5 V |
| System Current | 450–600 mA |
| Power Consumption | 2.25–3 W |
| Output | UART Serial, 256000 baud |
| Dimensions | 76 mm width × 41 mm height |
| Weight | 190 g |
Product Features
- High 16 kHz sampling frequency supports rapid and detailed map generation.
- 360° omnidirectional scanning is designed for SLAM, service-robot navigation and environmental perception.
- Adjustable 5–15 Hz rotation enables tuning for different mapping and control requirements.
- Ultra-thin 41 mm profile supports integration into compact mobile robots.
- Class 1 laser safety and UART serial output simplify embedded robotics deployment.
Package Includes
- 1 × SLAMTEC RPLIDAR A2M12 360° Laser Scanner Kit
Frequently Asked Questions
What is the SLAMTEC RPLIDAR A2M12 360° Laser Scanner Kit 12m used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 360° laser scanning with 0.2–12 m measuring range
- 16 kHz sampling frequency for dense point acquisition
- 5–15 Hz adjustable rotational speed with 10 Hz typical operation
- 0.225° angular resolution for detailed mapping
- Ultra-thin approximately 4 cm Class 1 laser design for service robots
