SmartElex 2 Inch IPS TFT LCD Module 240x320

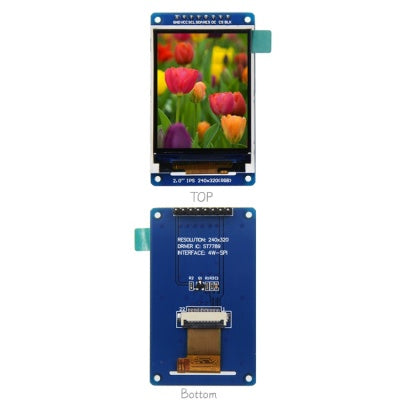

SmartElex 2 Inch IPS TFT LCD Module 240x320
Lead Time
Product Description
SmartElex 2 Inch IPS TFT LCD module for compact embedded interfaces, dashboards and microcontroller projects, featuring a 240 × 320 IPS panel and ST7789P3 controller.
Key highlights: 2-inch IPS TFT LCD, 240 × 320 resolution, ST7789P3 display controller, 4-wire SPI interface, approximately 400 cd/m² brightness and wide-view IPS display performance.
Applications
Product Specifications
| Display Size | 2 inch |
|---|---|
| Resolution | 240 × 320 pixels |
| Panel | IPS TFT LCD |
| Controller | ST7789P3 |
| Interface | 4-wire SPI |
| Brightness | Approx. 400 cd/m² |
| Operating Temperature | Approx. -20°C to 70°C |
Product Features
- IPS Display Panel
Provides vivid colour and wide viewing angles for compact graphical interfaces. - High-Speed SPI Interface
Uses a 4-wire SPI connection for straightforward integration with microcontrollers. - ST7789P3 Controller
Supports common embedded development platforms and display libraries.
Package Includes
- 1 x SmartElex 2 Inch IPS TFT LCD Module
Frequently Asked Questions
What is the SmartElex 2 Inch IPS TFT LCD Module 240x320 used for?
What are its main features?
What specifications should I check before choosing this product?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 2-inch IPS TFT
- 240 x 320 resolution
- ST7789P3 controller
- 4-wire SPI interface
- Approx. 400 cd/m² brightness
