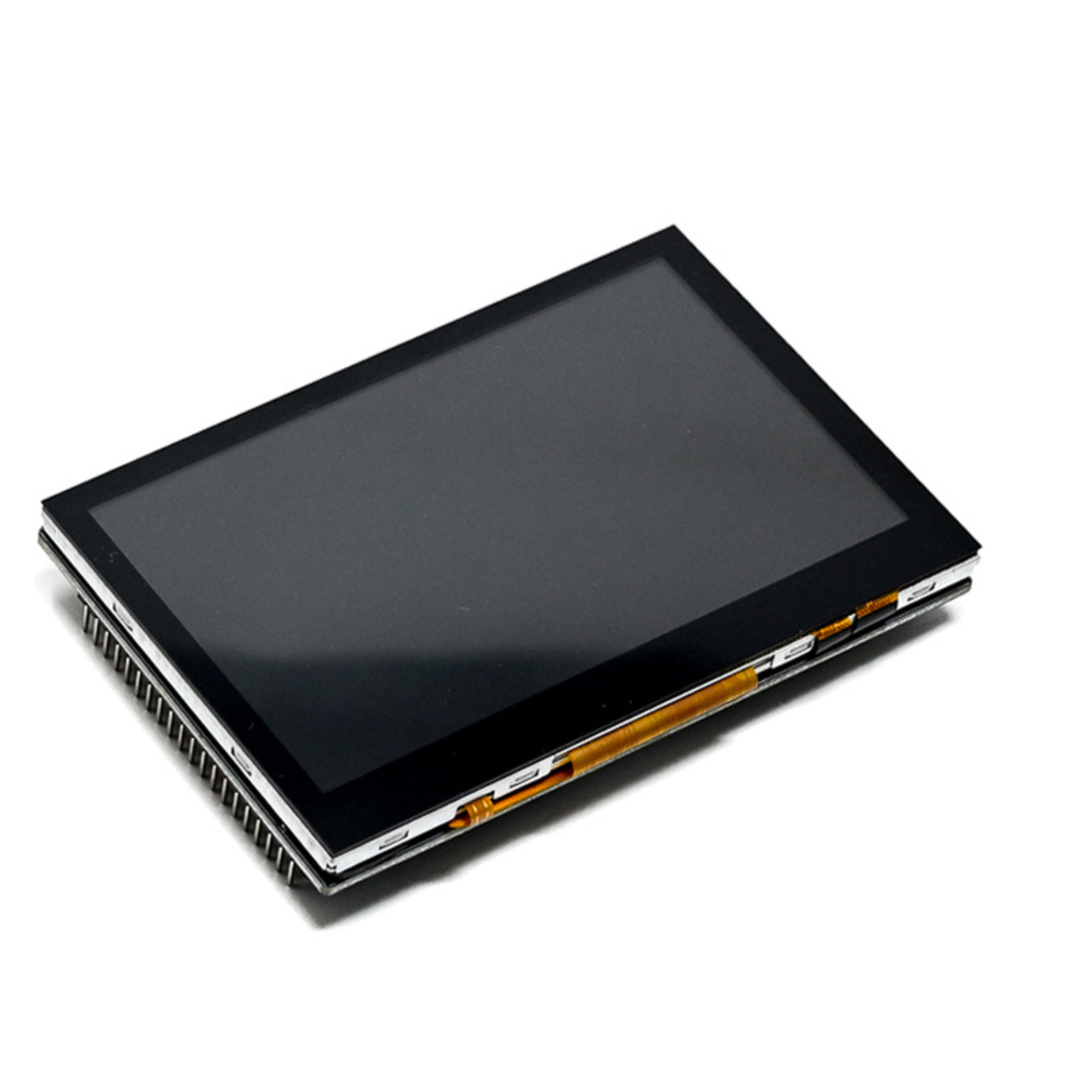

SmartElex 5 Inch TFT Capacitive Touch Display 800x480

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Lead Time
SmartElex 5 Inch TFT Capacitive Touch Display 800x480
  • SmartElex 5 Inch TFT Capacitive Touch Display 800x480

Product Description

SmartElex 5 Inch TFT Capacitive Touch Display 800x480 is designed for adding a screen to the compatible host equipment. It suits projects that need information visible at the device, with screen and connection details guiding the choice. Display Interface support is listed as 24-bit RGB. Touch Interface support is listed as I2C. The Resolution specification is 800 × 480 pixels. When choosing this display module, start with the documented configuration.

Key highlights:Check the screen’s physical fit as well as the host connection. Where touch input is specified, it offers an input option alongside the display; drivers and host requirements still need to match. The display size figure is 5 inch. The Controller specification is ST7265. The Touch Type specification is Capacitive.

Applications

Remote Monitoring & Control Industrial Automation Process Monitoring

Product Specifications

Display Size5 inch
Resolution800 × 480 pixels
ControllerST7265
Display Interface24-bit RGB
Touch TypeCapacitive
Touch InterfaceI2C

Product Features

  1. Large WVGA Display
    a 5-inch 800 × 480 workspace for embedded dashboards and HMI applications is provided by the unit.
  2. Capacitive Touch Input
    Available functions include intuitive user interaction through an I2C touch interface.
  3. 24-bit RGB Graphics
    Delivers rich colour output for industrial, IoT and automation interfaces.

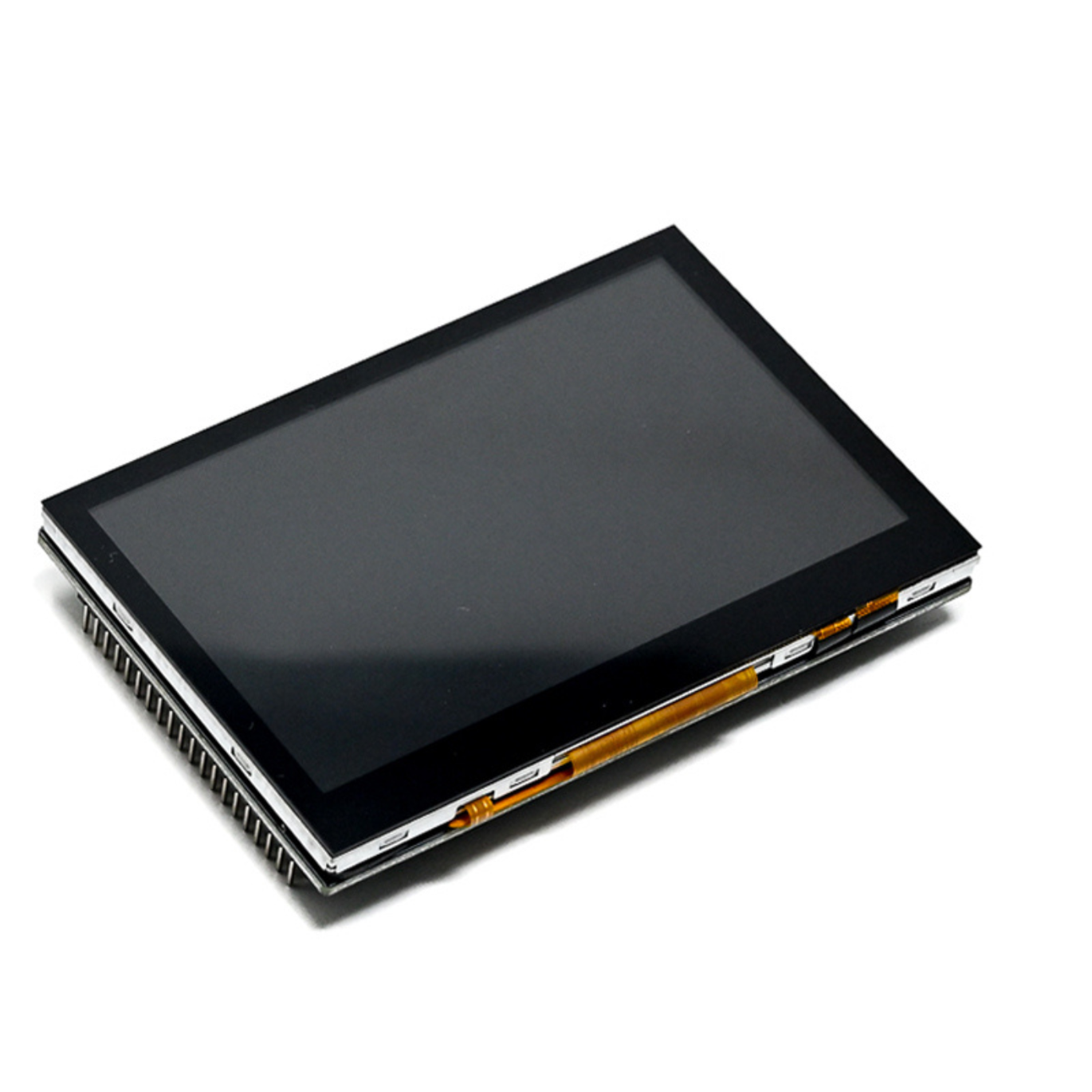

SmartElex 5 Inch TFT Capacitive Touch Display 800x480 - Additional Image 1

Package Includes

  • 1 x SmartElex 5 Inch TFT Capacitive Touch Display

Frequently Asked Questions

What is the SmartElex 5 Inch TFT Capacitive Touch Display 800x480 used for?
SmartElex 5 Inch TFT capacitive touch display for embedded HMI, dashboards and graphical control interfaces, featuring an 800 × 480 pixel colour panel and responsive touch operation.
What are its main features?
5-inch TFT display; 800 x 480 resolution; Capacitive touch; ST7265 controller.
What specifications should I check before choosing this product?
Display Size: 5 inch; Resolution: 800 × 480 pixels; Controller: ST7265; Display Interface: 24-bit RGB.
Which interfaces or communication protocols does it use?
Display Interface: 24-bit RGB; Touch Interface: I2C. Check that your host, gateway or controller supports the listed interface and required configuration.
What is included in the package?
1 x SmartElex 5 Inch TFT Capacitive Touch Display.

Other Information

Suggested Uses
  • Embedded HMI and operator panels
  • Industrial automation dashboards
  • IoT monitoring and control terminals
  • Robotics and machine interfaces
