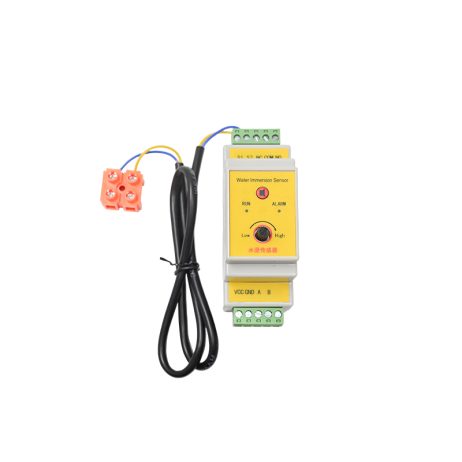

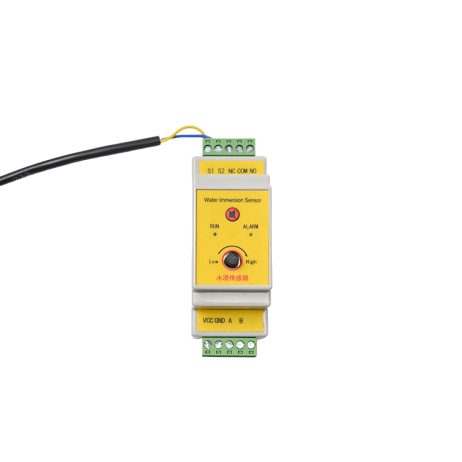

SN-3006H-SJ-NO1 RS485 Rail-Mount Water Immersion Sensor
SN-3006H-SJ-NO1 RS485 Rail-Mount Water Immersion Sensor
Lead Time
Product Description
SN-3006H-SJ-NO1 RS485 Rail-Mount Water Immersion Sensor is designed for the sensing and monitoring work identified in its specifications. It gives a compatible controller or monitoring system access to the quantities this model is designed to measure. It accepts 12–24V DC at the specified input. ABS + copper is specified for the housing material. The dimensions figure is 110 × 60 × 40 mm. When choosing this rail housing water immersion sensor, start with the documented configuration. The measurement range and signal output should suit the job before you choose a sensor. Supply, mounting and environmental limits are separate checks; any stated calibration or handling requirements also remain relevant. The Mounting specification is 35 mm DIN rail. The Response Time specification is ≤1 second. The Current Consumption specification is ≤35mA. The Communication specification is RS485. The Alarm Outputs specification is Relay + integrated buzzer.
Applications
Product Specifications
| Model | SN-3006H-SJ-NO1 |
| Product Type | Rail Housing Water Immersion Sensor |
| Supply Voltage | 12–24V DC |
| Response Time | ≤1 second |
| Current Consumption | ≤35mA |
| Communication | RS485 |
| Alarm Outputs | Relay + integrated buzzer |
| Housing Material | ABS + copper |
| Dimensions | 110 × 60 × 40 mm |
| Weight | Approx. 109g |
| Mounting | 35 mm DIN rail |
Product Features
- Model: SN-3006H-SJ-NO1
- Type: Rail-housing water immersion sensor
- Communication: RS485
- Alarm outputs: Relay and integrated buzzer
- Sensitivity: Adjustable by knob
- Installation: Standard 35 mm DIN rail
- Typical applications: Data centers, equipment rooms, warehouses and automation cabinets
Package Includes
- 1 × SN-3006H-SJ-NO1 RS485 Rail-Mount Water Immersion Sensor
