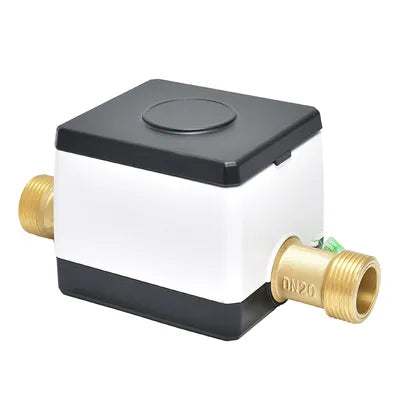

SR003 Ultrasonic Water Meter LoRaWAN GSM 4G RS485
Lead Time
Product Description
The SR003 is a smart ultrasonic water meter for accurate cold-water metering in residential, commercial and utility water-management applications. Available in DN15, DN20 and DN25 sizes, it combines non-contact ultrasonic measurement with an LCD, IP68 protection, long-life 3.6V lithium-battery operation and remote communication options including LoRaWAN, NB-IoT, GPRS/4G, M-Bus and RS485.
Product Specifications
| Manufacturer | Tai'an Desheng Information Technology Co., Ltd. |
| Model | SR003 |
| Measurement Principle | Ultrasonic |
| Medium | Cold water |
| Pipe Sizes | DN15 / DN20 / DN25 |
| Range Ratio | R160 / R250 / R400, configuration dependent |
| Transducer Frequency | 1 MHz |
| Supply Voltage | DC 3-10V, typical 3.6V |
| Battery | ER26500 3.6V lithium, 8500mAh |
| Communication | LoRaWAN / NB-IoT / GPRS / 4G / M-Bus / RS485 |
| Temperature Class | T30 / T50 / T90 |
| Maximum Working Pressure | 1.6 MPa |
| Protection | IP68 |
| Accuracy Class | Class 2 |
| Minimum Measurable Flow Velocity | 0.005 m/s (DN15) |
| DN15 Size | 110 × 101 × 92 mm |
| DN20 Size | 130 × 101 × 92 mm |
| DN25 Size | 225 × 101 × 92 mm |
| Reverse Flow Measurement | Not supported |
Product Features
- Measures small-diameter cold-water flow using ultrasonic technology without traditional mechanical moving parts.
- Supports remote meter-reading and smart-water integration through LoRaWAN, NB-IoT, GPRS/4G, M-Bus and RS485 communication options.
- LCD display supports local reading and diagnostic information while low-power operation is designed for long battery service.
- Available in DN15, DN20 and DN25 sizes with IP68 protection and a maximum allowable working pressure of 1.6 MPa.
- Supports configurable reporting functions and multiple measurement units for residential, commercial and utility deployments.
Package Includes
- 1 × SR003 Ultrasonic Smart Water Meter
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time for orders within India is 7-10 working days. Delivery varies based on location and courier service.
- Delivery time for orders outside India is up to 20 working days. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Ultrasonic water metering with no mechanical moving parts
- DN15, DN20 and DN25 sizes with range ratios up to R400
- LoRaWAN, NB-IoT, GPRS/4G, M-Bus and RS485 communication options
- IP68 enclosure with LCD display and low-power 3.6V lithium battery
- Up to 1.6 MPa working pressure with minimum measurable flow velocity down to 0.005 m/s on DN15
