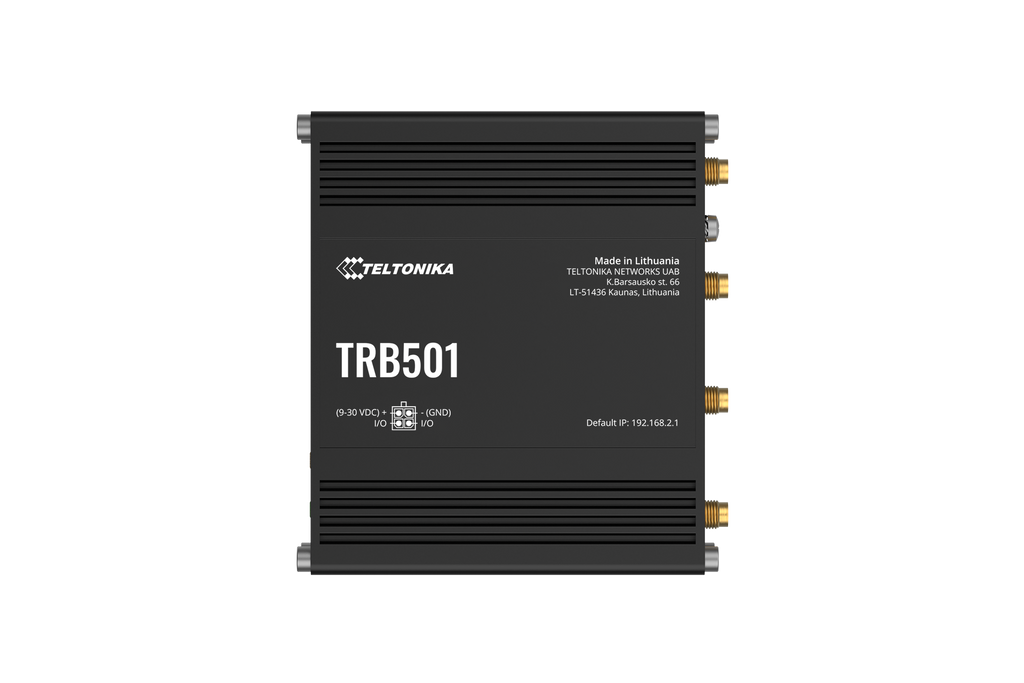

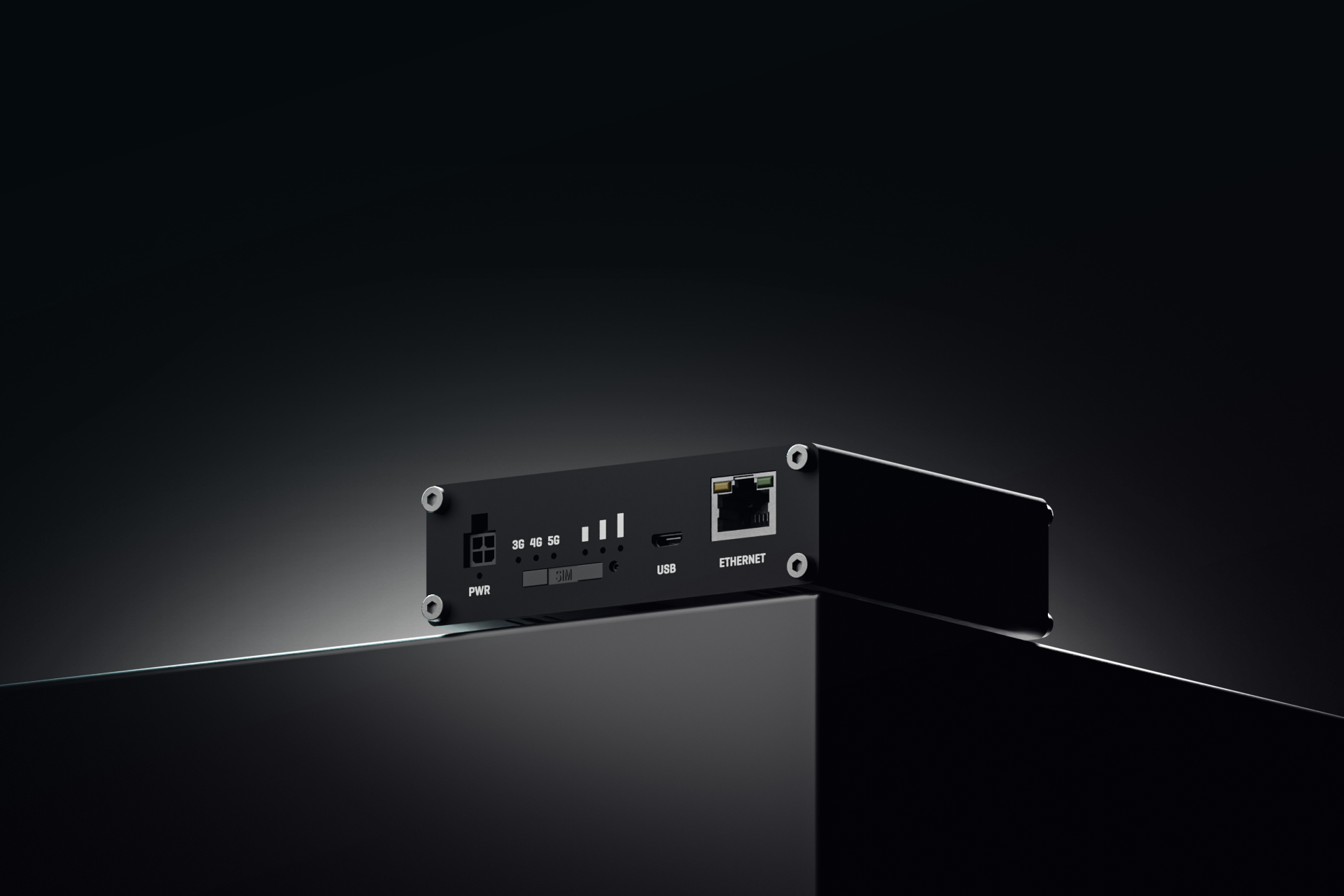

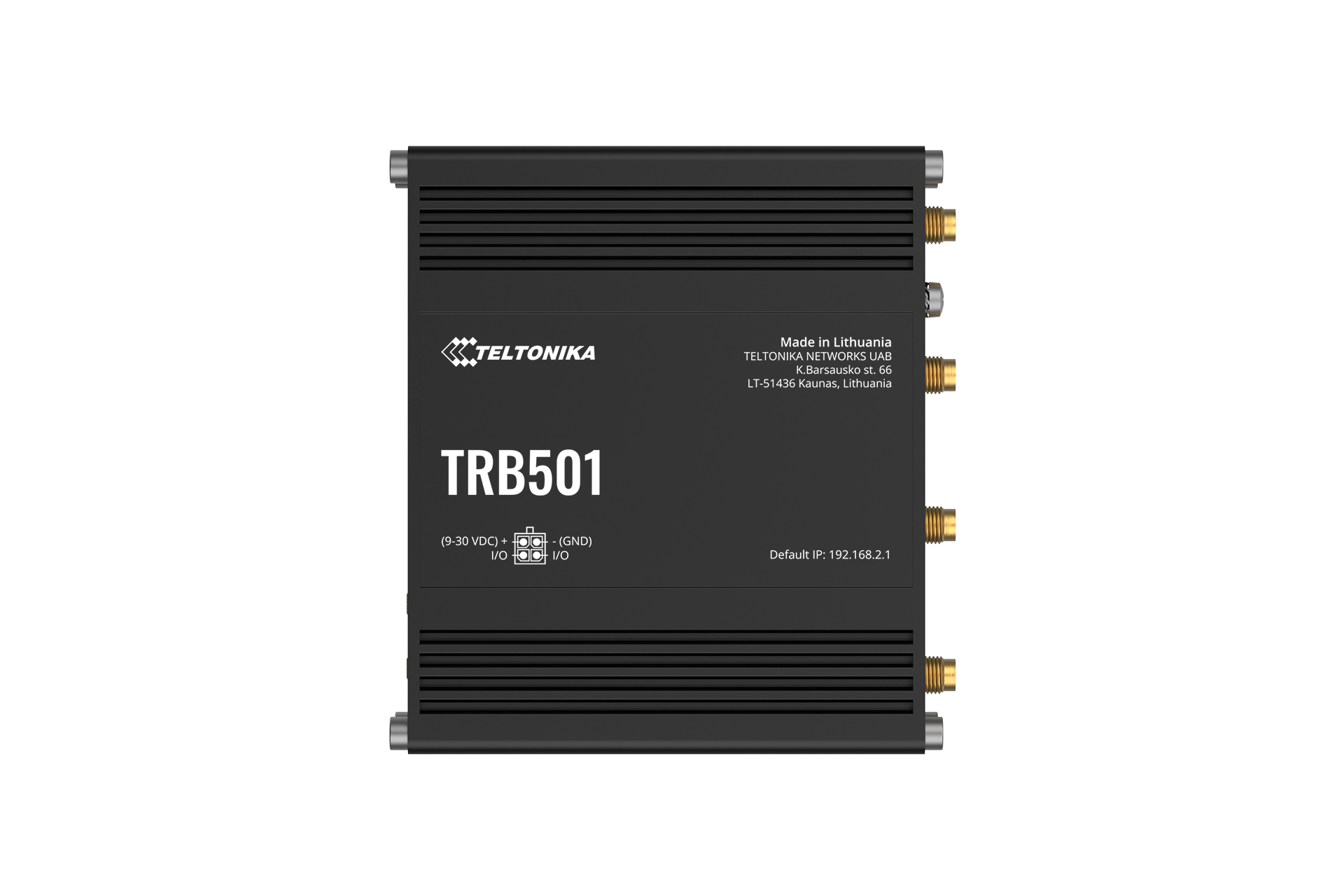

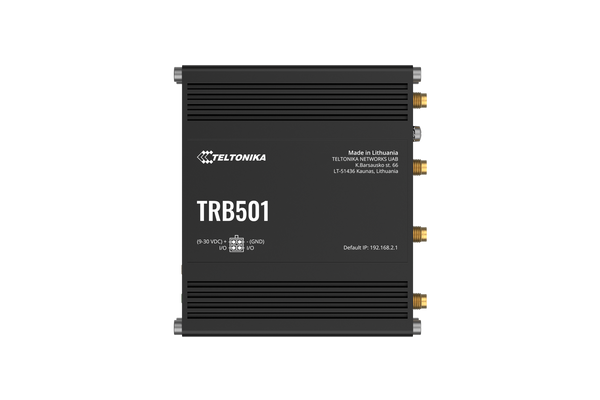

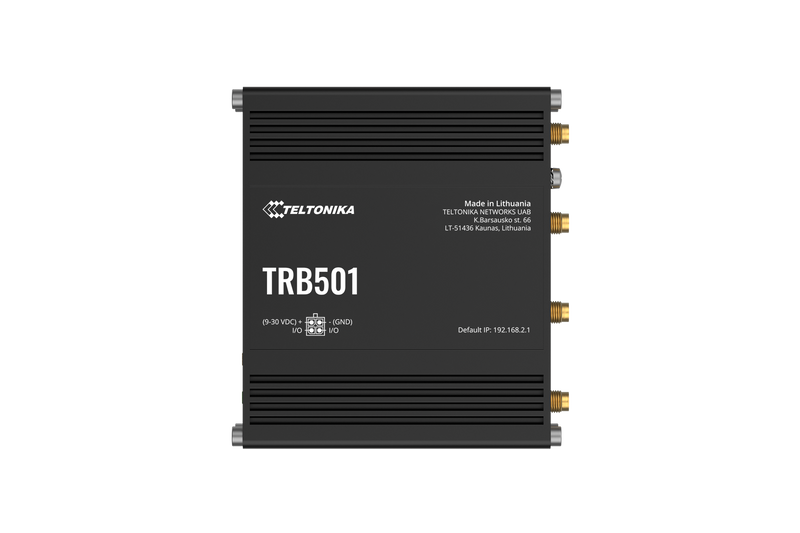

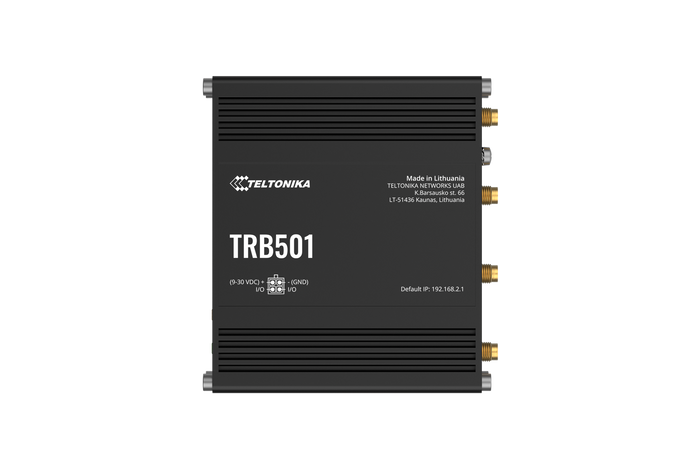

Teltonika TRB501 Industrial 5G Gateway
Lead Time
Product Description
The Teltonika TRB501 is a compact industrial 5G gateway designed for high-speed IoT, M2M and edge-networking deployments. It combines 5G SA/NSA cellular connectivity with a 2.5 Gigabit Ethernet interface, RutOS networking software and industrial digital I/O in a rugged compact form factor.
With 5G speeds up to 3.4 Gbps download, LTE fallback, Mini-SIM and order-code-dependent eSIM support, the TRB501 is suitable for industrial automation, remote monitoring, smart infrastructure, machine connectivity and other data-intensive edge applications.
Applications
IoT Gateway Connectivity
Network Infrastructure Monitoring
Remote Device Management
Edge Data Acquisition
Product Specifications
| Brand | Teltonika |
|---|---|
| Model | TRB501 |
| Device Type | Industrial 5G Gateway |
| Cellular | 5G Sub-6 GHz SA/NSA, LTE fallback |
| Maximum 5G Data Speed | Up to 3.4 Gbps download |
| CPU | 1.5 GHz ARM Cortex-A7 |
| Memory | 512 MB class RAM/Flash platform |
| SIM | 1 × Mini-SIM (2FF) + eSIM support depending on order code |
| Ethernet | 2.5 Gigabit Ethernet |
| Digital I/O | 2 × DI/O |
| Protocols | MQTT, Modbus, OPC UA |
| Operating System | RutOS |
| Power Input | 9–30V DC |
| Mounting | DIN-rail compatible |
| Operating Temperature | -40°C to 75°C |
Product Features
- Compact industrial gateway connects machines and IoT equipment to high-speed 5G networks.
- 1.5 GHz ARM Cortex-A7 processor with 512 MB class memory supports reliable edge-networking workloads.
- Two digital I/O channels support integration with alarms, sensors and industrial control systems.
- Wide 9–30V DC input and DIN-rail mounting suit control cabinets and field installations.
- Industrial operating range from -40°C to 75°C supports demanding deployment environments.
Package Includes
- 1 × Teltonika TRB501 Industrial 5G Gateway
Frequently Asked Questions
What is the Teltonika TRB501 Industrial 5G Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Industrial 5G Sub-6 GHz SA/NSA connectivity with LTE fallback
- Up to 3.4 Gbps 5G download speed
- 2.5 Gigabit Ethernet for high-speed edge networking
- Mini-SIM with eSIM support depending on order code
- RutOS with MQTT, Modbus and OPC UA integration
