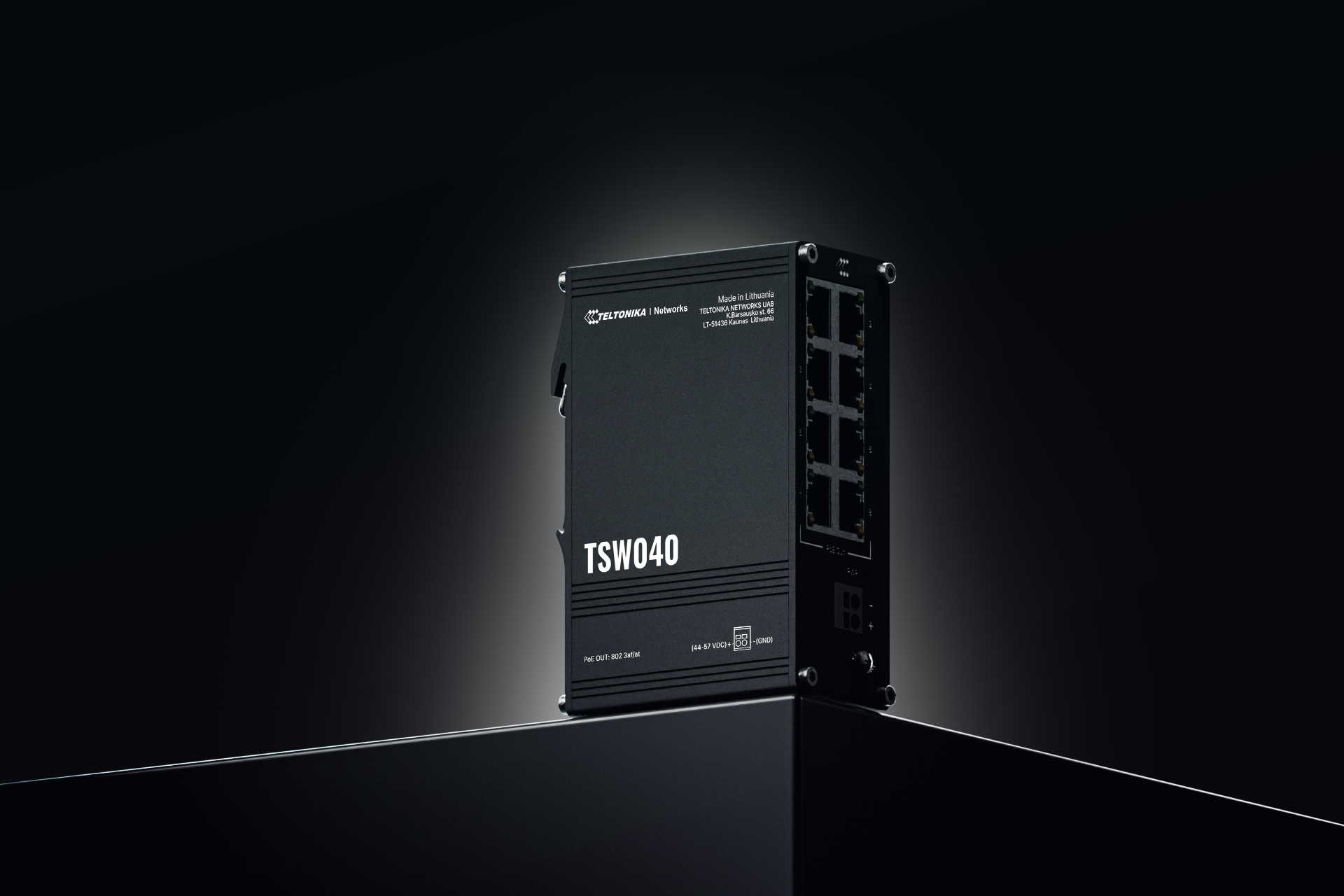

Teltonika TSW040 8-Port Industrial PoE+ Switch 240W
Low Stock, 1 left
Product Description
The Teltonika TSW040 is an unmanaged industrial PoE+ switch designed to power and connect edge devices over Ethernet. It combines eight Fast Ethernet PoE+ ports with IEEE 802.3af/at support, a high total power budget and rugged fanless construction.
Key Features
- 8 x RJ45 10/100 Mbps PoE-out Ethernet ports
- IEEE 802.3af/at PoE+ support
- Up to 30W per port and 240W total PoE power budget
- Unmanaged plug-and-play switching
- 7-57V DC input; 44-57V DC required for PoE output
- Integrated DIN rail and rugged fanless design
Applications
- IP camera networks
- Wireless access point power and data
- Industrial IoT devices
- Edge-network cabinets and automation systems
Product Specifications
| Model | TSW040 |
| Switch Type | Unmanaged |
| Ethernet Ports | 8 x RJ45 10/100 Mbps PoE-out |
| PoE Standard | IEEE 802.3af / 802.3at PoE+ |
| PoE Output | Up to 30W per port |
| Total PoE Budget | Up to 240W |
| Power Input | 7-57V DC |
| PoE-out Supply Range | 44-57V DC |
| Operating Temperature | -40°C to 75°C |
| Mounting | Integrated DIN rail |
| Cooling | Fanless |
Product Specifications
| Model | TSW040 |
| Switch Type | Unmanaged Industrial PoE+ Switch |
| Ports | 8 x RJ45 10/100 Mbps PoE-out |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Output per Port | Up to 30W |
| Total PoE Budget | Up to 240W |
| Power Input | 7-57V DC |
| PoE-out Supply Range | 44-57V DC |
| Operating Temperature | -40°C to 75°C |
| Mounting | Integrated DIN rail |
| Cooling | Fanless |
Product Features
- PoE+ Edge Power: Eight RJ45 ports can deliver IEEE 802.3af/at PoE+ to compatible powered devices.
- Per-Port Capacity: Supports up to 30W PoE output per port.
- High Power Budget: Total PoE output can reach up to 240W with an appropriately sized power supply.
- Wide DC Input: The switch accepts 7-57V DC; PoE-out operation requires 44-57V DC.
- Unmanaged Operation: Plug-and-play switching simplifies installation without controller configuration.
- Industrial Mounting: Integrated DIN rail and fanless construction suit industrial cabinets and edge deployments.
Package Includes
- 1 x Teltonika TSW040 8-Port Industrial PoE+ Switch
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8 x Fast Ethernet RJ45 PoE-out ports
- IEEE 802.3af/at PoE+ support
- Up to 30W per port and 240W total PoE power budget
- Unmanaged plug-and-play industrial switching
- Wide 7-57V DC input; 44-57V DC required for PoE output
- Integrated DIN rail and rugged fanless design
