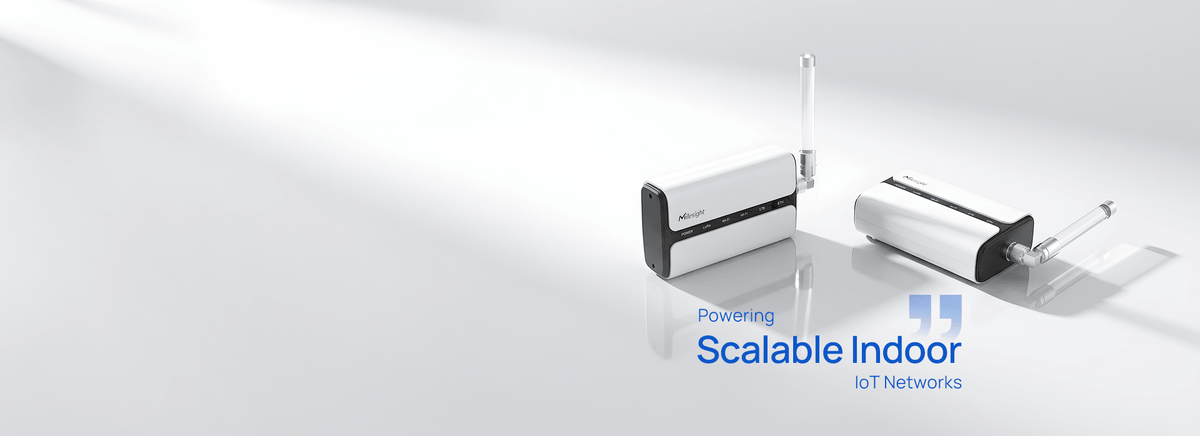

UG65-915M-EA - Indoor LoRaWAN® Gateway
Low Stock, 1 left
Product Description
UG65 is a robust 8-channel indoor LoRaWAN® gateway. Equipped with the SX1302 LoRa chip and a high-performance quad-core CPU, it supports connections with more than 2,000 nodes. It offers a range of up to 15 km in line-of-sight conditions and approximately 2 km in urban environments, making it suitable for smart offices, smart buildings and other indoor applications.
UG65 supports multiple backhaul options through Ethernet, Wi-Fi and optional cellular connectivity. It works with mainstream network servers such as The Things Stack and ChirpStack and includes a built-in network server for easy deployment.

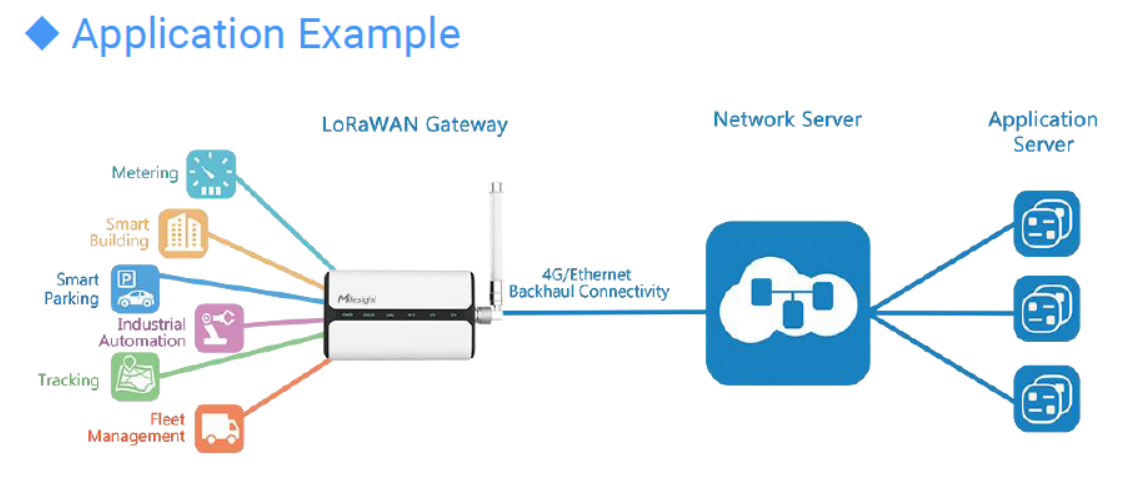

Applications
Product Specifications
| Model | UG65-915M-EA |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory / Flash | 512 MB DDR4 / 8 GB eMMC |
| LoRa chip / Channels | SX1302 / 8 half/full-duplex |
| Frequency | 915 MHz variant; confirm regional plan. UG65 family supports CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Antenna interface | 50 Ω N-Female external connector |
| Sensitivity / Tx power | -140 dBm @292 bps / maximum 27 dBm |
| Device capacity | Around 2000 Class A/B/C devices at 10-minute uplink interval; traffic dependent |
| Range | Up to 15 km line of sight; approximately 2 km urban, conditions dependent |
| Ethernet | 1 RJ45 WAN; 10/100/1000 Mbps; PoE PD; 1.5 kV RMS isolation |
| Wi-Fi | 2.4 GHz IEEE 802.11b/g/n; AP/client mode |
| Cellular | Optional 4G LTE; mini SIM-2FF |
| Embedded server | Built-in codecs, multicast, FUOTA and gateway fleet |
| Integration | MQTT(s), HTTP(s), BACnet/IP, BACnet/SC, Modbus TCP, Modbus RTU over TCP |
| Niagara | Compatible; driver available |
| VPN | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard |
| Management | Web, CLI, SNMP, HTTP/MQTT API, DeviceHub, Milesight Development Platform |
| Development | Python SDK, Node-RED |
| Power | 9–24 V DC; IEEE 802.3af PoE; 5V/1A Type-C |
| Consumption | Typical 2.9 W, maximum 4.2 W |
| Protection / Housing | IP65 / PC+ABS UL94 V0, white and black |

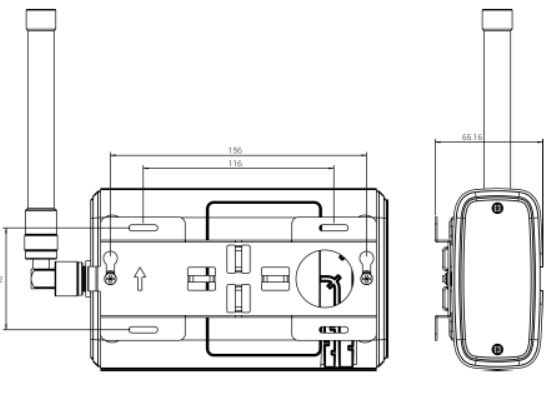

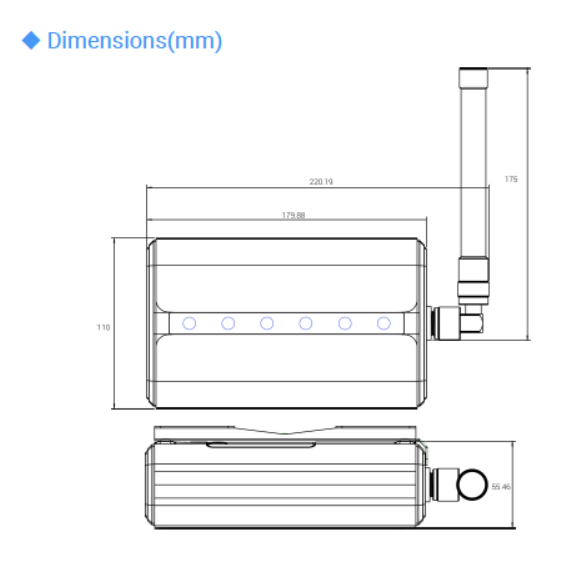

| Dimensions / Weight | 180 × 110 × 55.5 mm / 548 g |
| Mounting | Desktop, wall or pole |
| Operating / Storage temperature | -40°C to +70°C / -40°C to +85°C; cellular performance reduced above 60°C |
| Humidity | 0–95% non-condensing at 25°C |
| Approvals | CE, CE (RED), Telec, JATE, RCM; RoHS; applicability depends on regional model |
Product Features
- Quad-core industrial processor with 512 MB RAM and 8 GB eMMC
- SX1302 chip for high traffic with low consumption
- 8 half/full-duplex channels
- Ethernet, Wi-Fi and optional 4G backhaul with failover
- Desktop, wall or pole mounting
- Remote management with DeviceHub and Milesight Development Platform
- Multiple VPN options for secure communication
- Compatible with The Things Stack, ChirpStack, Actility and AWS
- Noise analyzer for channel selection
- Built-in network server with MQTT(s)/HTTP(s) API
- BACnet and Modbus integration for BMS/PLC
- Python SDK and Node-RED support

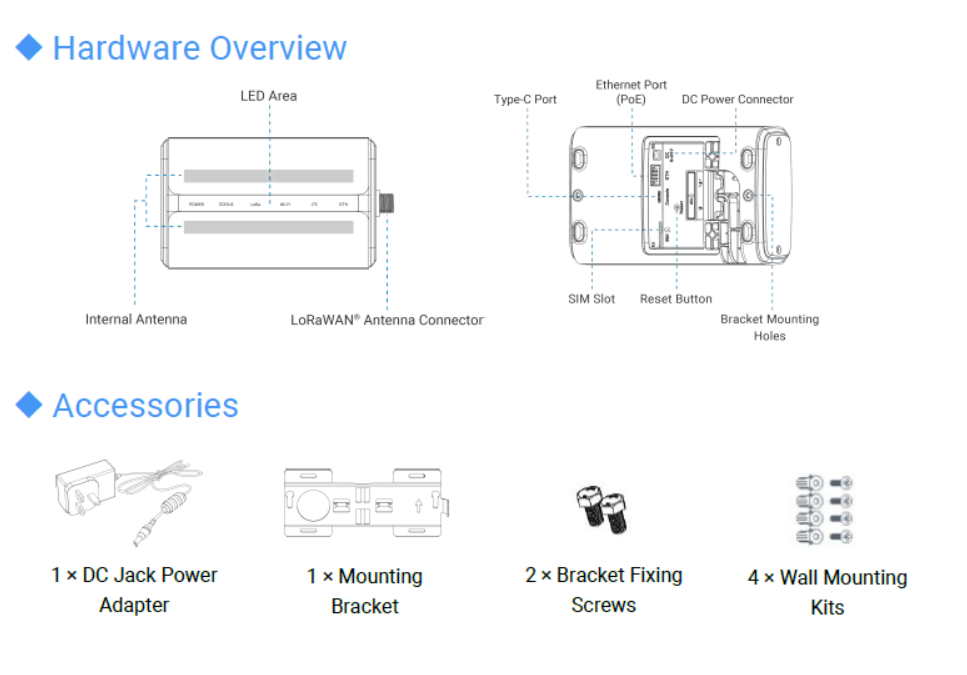

Package Includes
- 1 × UG65-915M-EA Gateway
- 1 × DC jack power adapter
- 1 × mounting bracket
- 2 × bracket fixing screws
- 4 × wall mounting kits

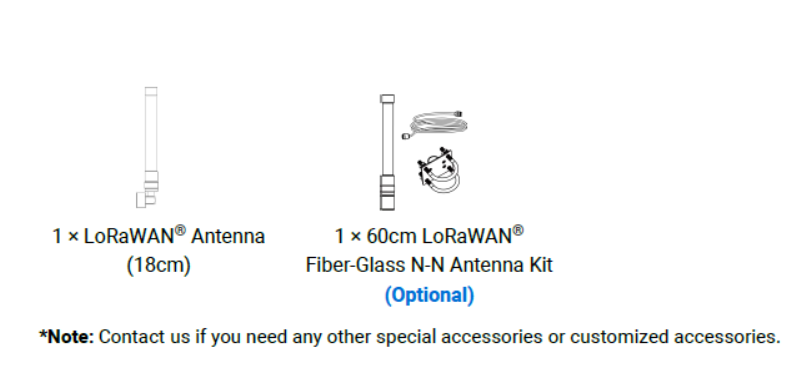

- 1 × 18 cm LoRaWAN antenna; confirm bundle
- 60 cm fibre-glass antenna kit optional
Frequently Asked Questions
What is the UG65-915M-EA - Indoor LoRaWAN® Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
