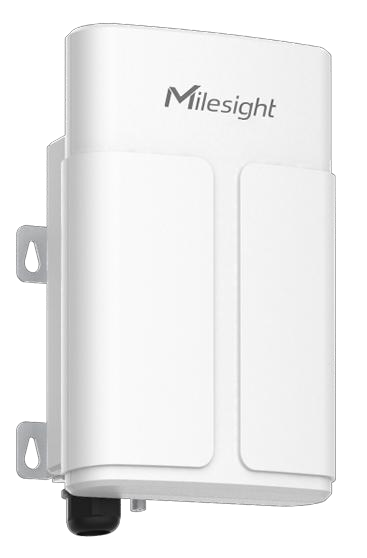

UG67-L08GL-915M - Outdoor LoRaWAN® Gateway
Low Stock, 1 left
Product Description
UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Equipped with the SX1302 LoRa chip and a high-performance quad-core CPU, it supports connections with more than 2,000 nodes. Its range of up to 15 km in line-of-sight conditions and IP67 waterproof enclosure make it suitable for smart agriculture, smart metering and other outdoor applications.

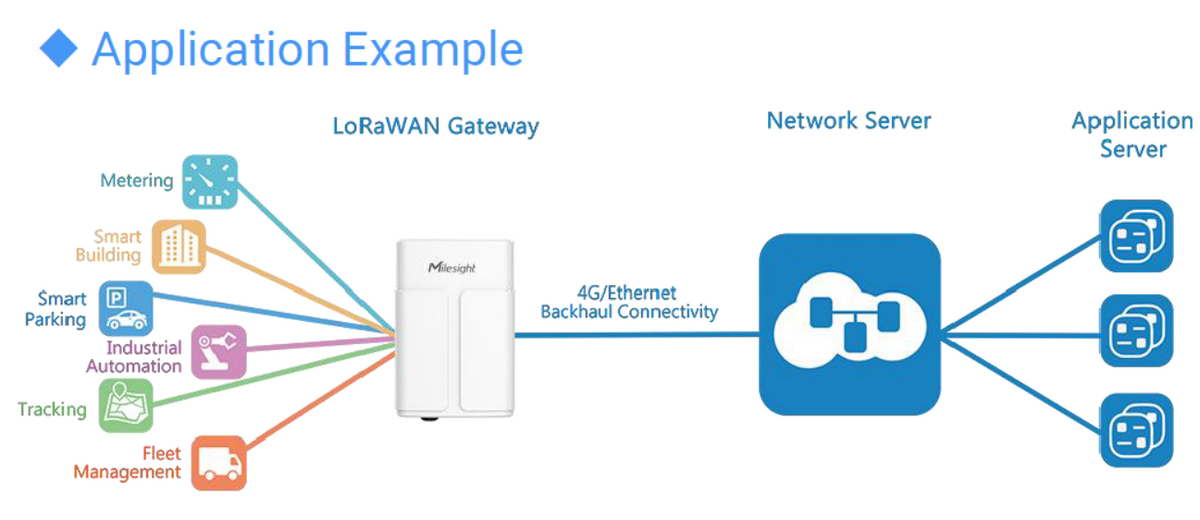

UG67 supports multiple backhaul options through Ethernet, Wi-Fi and cellular connectivity. It works with mainstream network servers such as The Things Stack and ChirpStack, includes a built-in network server, and supports the Milesight Development Platform for easy deployment.
Product Specifications
| Model | UG67-L08GL-915M |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory / Flash | 512 MB DDR4 RAM / 8 GB eMMC |
| LoRa chip / Channels | SX1302 / 8 half/full-duplex |
| Frequency | 915 MHz variant; confirm regional plan. Family: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| LoRa antenna connectors | 2 × 50 Ω N-Female external connectors |
| Sensitivity / Tx power | -140 dBm @292 bps / maximum 27 dBm |
| LBT | Not supported for US915/AU915 |
| Device capacity | Around 2000 Class A/B/C devices at 10-minute uplink interval; traffic dependent |
| Range | Up to 15 km line of sight; conditions dependent |
| Ethernet | 1 RJ45 WAN; 10/100/1000 Mbps; PoE PD; 1.5 kV RMS isolation |
| Wi-Fi | 2.4 GHz IEEE 802.11b/g/n; AP/client mode; internal antenna |
| Cellular | 4G LTE; internal antenna; 1 mini SIM-2FF slot |
| GNSS | GPS/GLONASS/QZSS/SBAS; internal antenna; 2.5 m CEP in open air |
| GNSS sensitivity | -161 dBm tracking/re-acquisition; -149 dBm acquisition |
| Integration | MQTT(s), HTTP(s), BACnet/IP, BACnet/SC, Modbus TCP, Modbus RTU over TCP |
| Built-in server | Codec library, custom codecs, multicast, gateway fleet and FUOTA |
| Niagara | Compatible; driver available |
| Management | Web, CLI, SNMP, HTTP/MQTT APIs, DeviceHub, Milesight Development Platform |
| VPN | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard |
| Development | Python SDK and Node-RED |
| Power | IEEE 802.3af PoE or 6–12 V DC via M12 A-coded connector |
| Consumption | Typical 3.6 W; maximum 4.8 W |
| Power-failure alarm | Capacitor supports sending power-failure alarms |
| USB | Type-C console |
| Built-in | Watchdog, RTC, timer |
| Protection / Housing | IP67 / PC UL94 V0 + ADC-12 aluminium; white |

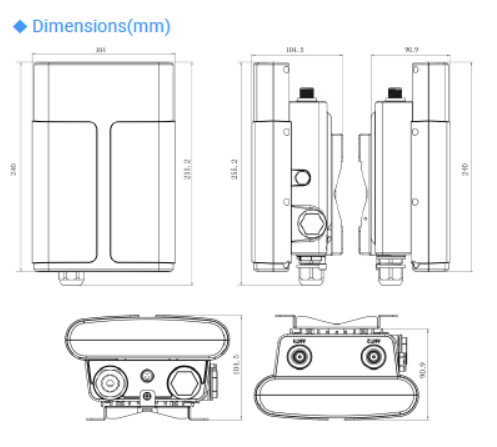

| Dimensions / Weight | 240 × 164 × 90.9 mm / 1463 g |
| Mounting | Wall or pole |
| Operating / Storage temperature | -40°C to +70°C / -40°C to +85°C; cellular performance reduced above 60°C |
| Humidity | 0–95% non-condensing at 25°C |
| Approvals | CE, CE (RED), FCC, TELEC; RoHS; regional applicability to be confirmed |
Product Features
- Quad-core industrial processor with large memory capacity.
- Equipped with the SX1302 chip to handle higher traffic with lower power consumption.
- 8 half/full-duplex channels.
- IP67 waterproof enclosure and industrial design for harsh environments.
- Wall or pole mounting options.
- PoE or DC power supply options.
- Capacitor for sending alarms in the event of a power failure.
- Multiple backhaul options with Ethernet, cellular (4G) and Wi-Fi.
- Secure communication with multiple VPNs, including IPsec, OpenVPN, L2TP, PPTP, DMVPN and WireGuard.
- DeviceHub and the Milesight Development Platform provide easy, centralized management of remote devices.
- Compatible with mainstream network servers such as The Things Stack, ChirpStack, Actility and AWS.
- Detects and analyzes noise levels and provides an intuitive diagram to assist deployment.
- Built-in network server and MQTT(s)/HTTP(s) APIs for easy integration.
- Supports BACnet/IP and Modbus for easy integration of LoRaWAN® data into BMS/PLC systems.
- Embedded Python SDK for custom development.
- Fast, user-friendly programming with the Node-RED development tool.

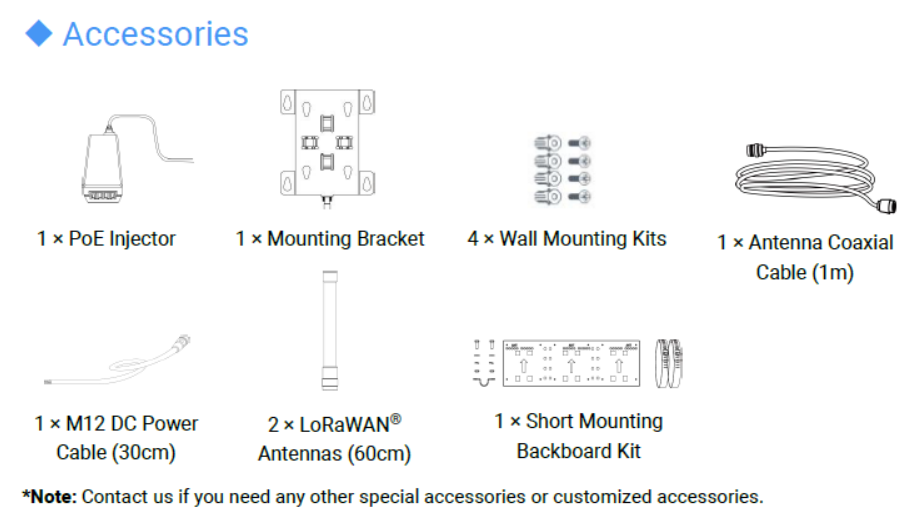

Package Includes
- 1 × UG67-L08GL-915M Outdoor LoRaWAN Gateway
- 1 × PoE injector
- 1 × mounting bracket
- 4 × wall mounting kits
- 1 × antenna coaxial cable (1 m)
- 1 × M12 DC power cable (30 cm)
- 2 × LoRaWAN antennas (60 cm)
- 1 × short mounting backboard kit
