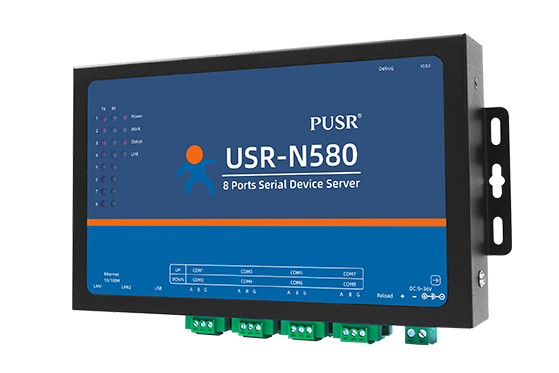

USR-N580 8-Port RS485 Serial to Ethernet Device Server
Lead Time
Product Description
Industrial 8-port RS485 serial device server for connecting multiple field devices to Ethernet and IIoT systems. The USR-N580-H7 provides eight RS485 ports, dual 10/100 Mbps Ethernet, Modbus RTU/TCP support, serial rates up to 921.6 kbps and 9–36V DC input for SCADA, metering and remote automation applications.
Applications
Product Specifications
| Model | USR-N580-H7 |
|---|---|
| Serial Interfaces | 8 × RS485 |
| Ethernet | 2 × 10/100 Mbps |
| Industrial Protocol | Modbus RTU / Modbus TCP |
| Serial Baud Rate | 600 bps to 921.6 kbps |
| Power Input | DC 9–36V |
Product Features
- Connects up to eight RS485 field devices to an Ethernet network for centralized monitoring and control.
- Dual Ethernet ports provide flexible industrial network integration.
- Supports Modbus RTU/TCP communication for PLC, meter and SCADA applications.
- High serial data rates support demanding industrial devices.
- Wide-voltage DC input suits control cabinets and field installations.
Package Includes
- 1 × USR-N580 8-Port RS485 Serial Device Server
Frequently Asked Questions
What is the USR-N580 8-Port RS485 Serial to Ethernet Device Server used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8 independent RS485 serial ports
- 2 × 10/100 Mbps Ethernet ports
- Modbus RTU and Modbus TCP support
- Serial baud rate from 600 bps to 921.6 kbps
- Wide 9–36V DC industrial power input
SKU: 2EEN20050
₹ 9,878.00
Maximum purchase quantity 1 per order.
Bulk orders or B2B inquiries? Email us →
Lead time
| Item is currently out of stock, but you can still place an order. Estimated delivery time will be notified to you by email. |
Category:
Serial Device Servers
