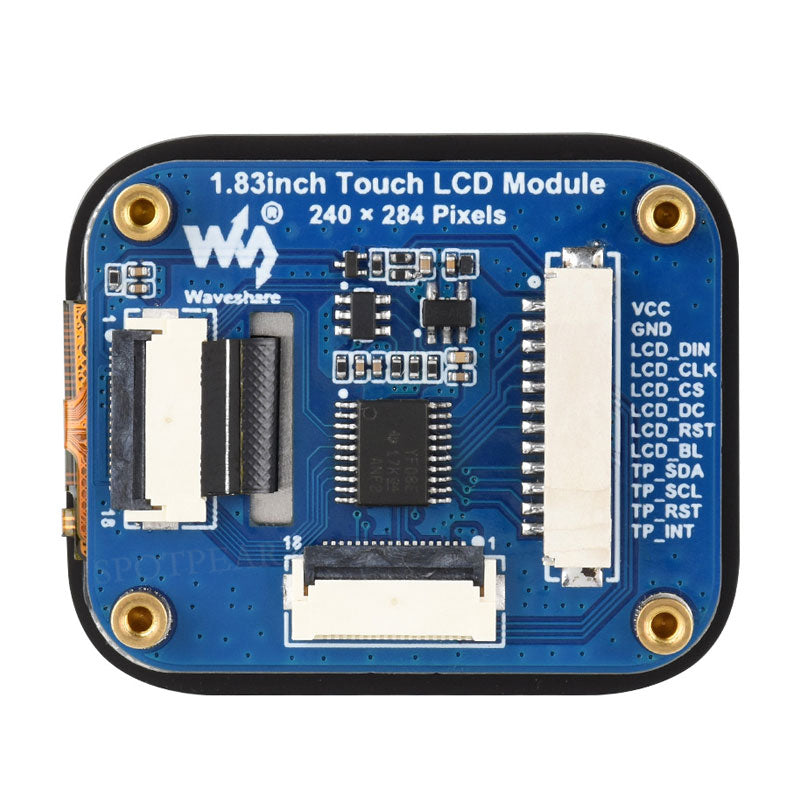

Waveshare 1.83 Inch 240x284 Touch LCD Display Module
Low Stock, 1 left
Product Description
The Waveshare 1.83 Inch Touch LCD Display Module is a compact 240×284 IPS display for embedded interfaces and portable electronics. It combines a ST7789T3-driven SPI display with CST816S capacitive touch over I2C, supports 3.3V/5V systems through onboard level shifting, and offers a wide viewing angle for microcontroller and development-board projects.
Product Specifications
| Display Size | 1.83 inch |
|---|---|
| Display Type | IPS LCD |
| Resolution | 240 × 284 |
| Colors | 262K |
| LCD Controller | ST7789T3 |
| Touch Type | Capacitive |
| Touch Controller | CST816S |
| Display Interface | SPI |
| Touch Interface | I2C |
| Logic Compatibility | 3.3V / 5V |
Product Features
- Compact High-Resolution Display
The 1.83 inch IPS panel provides a 240×284 pixel viewing area for compact graphical interfaces. - Capacitive Touch
CST816S touch control enables responsive user interaction through an I2C interface. - Simple Host Integration
The LCD communicates over SPI while the touch controller uses I2C, making it suitable for common development boards and microcontrollers. - Flexible Logic Supply
Onboard level shifting supports integration with both 3.3V and 5V host systems.
Package Includes
1 × Waveshare 1.83 Inch 240x284 Touch LCD Display ModuleOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 1.83 inch IPS LCD with 240×284 resolution
- 262K-color display
- ST7789T3 LCD controller
- CST816S capacitive touch controller
- SPI display interface and I2C touch interface
- 3.3V/5V compatible with onboard level shifting
- Wide viewing angle for compact embedded HMI designs
