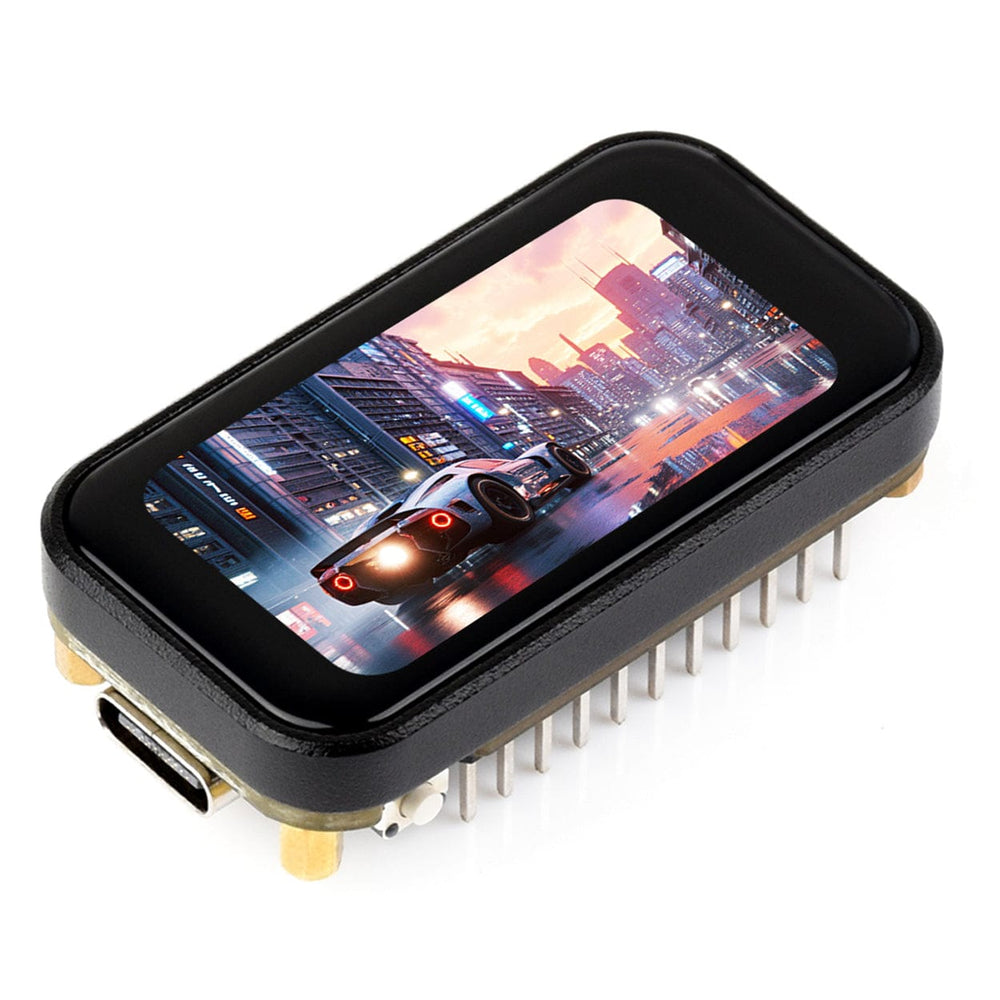

Waveshare ESP32-C6 1.47 Inch 172x320 Touch Display Development Board
Waveshare ESP32-C6 1.47 Inch 172x320 Touch Display Development Board
Low Stock, 1 left
Product Description
The Waveshare ESP32-C6 1.47 Inch Touch Display Development Board combines an ESP32-C6 RISC-V wireless MCU with a 172×320 capacitive touch IPS display. Wi-Fi 6, Bluetooth 5 LE, onboard IMU, microSD, USB-C and battery support make it suitable for compact IoT dashboards, smart controls and portable connected devices.
Applications
Product Specifications
| MCU | ESP32-C6FH8 |
|---|---|
| CPU | 32-bit RISC-V, up to 160MHz |
| Wireless | Wi-Fi 6, Bluetooth 5 LE |
| Flash | 8MB |
| Display | 1.47 inch IPS |
| Resolution | 172 × 320 |
| Touch | Capacitive |
| Motion Sensor | 6-axis IMU |
| Storage | microSD |
| USB | USB-C |
| Battery Support | Lithium battery charging/connector support |
Product Features
- Modern Wireless MCU
ESP32-C6 combines RISC-V processing with Wi-Fi 6 and Bluetooth Low Energy connectivity. - Integrated Touch Display
The 1.47 inch capacitive IPS screen enables compact interactive dashboards and controls. - Motion Sensing
An onboard 6-axis IMU supports orientation, motion and gesture-aware applications. - Portable Development
microSD, USB-C and battery support simplify standalone and portable prototypes.
Package Includes
1 × Waveshare ESP32-C6 1.47 Inch 172x320 Touch Display Development BoardOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- ESP32-C6 RISC-V MCU up to 160MHz
- Wi-Fi 6 and Bluetooth 5 LE
- 1.47 inch 172×320 capacitive touch IPS display
- 8MB Flash
- Onboard 6-axis IMU
- microSD card support
- USB-C programming and power
- Lithium-battery charging support
- Suitable for LVGL graphical interfaces
