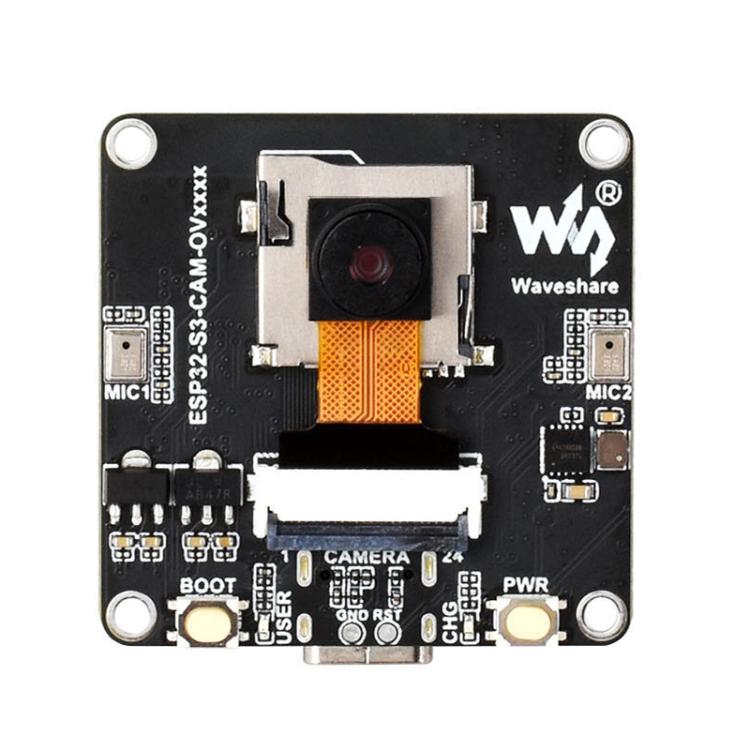

Waveshare ESP32-S3 AIoT Camera Development Board with OV5640
Low Stock, 1 left
Product Description
The Waveshare ESP32-S3 AIoT Camera Development Board with OV5640 is an integrated vision and audio development platform for edge-AI and connected imaging projects. It combines an ESP32-S3 MCU, 5MP OV5640 camera, Wi-Fi/Bluetooth LE, PSRAM/Flash, dual-microphone audio, microSD and battery support.
Applications
Product Specifications
| MCU | ESP32-S3 |
|---|---|
| CPU | Dual-core Xtensa LX7, up to 240MHz |
| Wireless | Wi-Fi, Bluetooth LE |
| Camera | OV5640, 5MP |
| PSRAM | 8MB |
| Flash | 16MB |
| Audio | Dual-microphone / audio I/O |
| Storage | TF / microSD |
| USB | USB interface |
| Battery | Lithium-battery charging support |
Product Features
- 5MP Vision Input
The included OV5640 camera supports embedded image capture for vision and recognition projects. - ESP32-S3 Edge Processing
Dual-core processing and ample PSRAM/Flash support connected vision and AIoT workloads. - Wireless Connectivity
Integrated Wi-Fi and Bluetooth LE simplify remote monitoring and connected camera applications. - Audio and Storage
Dual-microphone/audio features and microSD support enable richer multimedia prototypes and local recording.
Package Includes
1 × Waveshare ESP32-S3 AIoT Camera Development Board 1 × OV5640 Camera Module 1 × 8Ω 2W SpeakerOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- ESP32-S3 dual-core Xtensa LX7 MCU up to 240MHz
- OV5640 5MP camera module
- Wi-Fi and Bluetooth LE
- 8MB PSRAM and 16MB Flash
- Dual-microphone/audio I/O support
- TF/microSD storage
- USB interface
- Lithium-battery charging support
- Designed for image capture, recognition and AIoT projects
