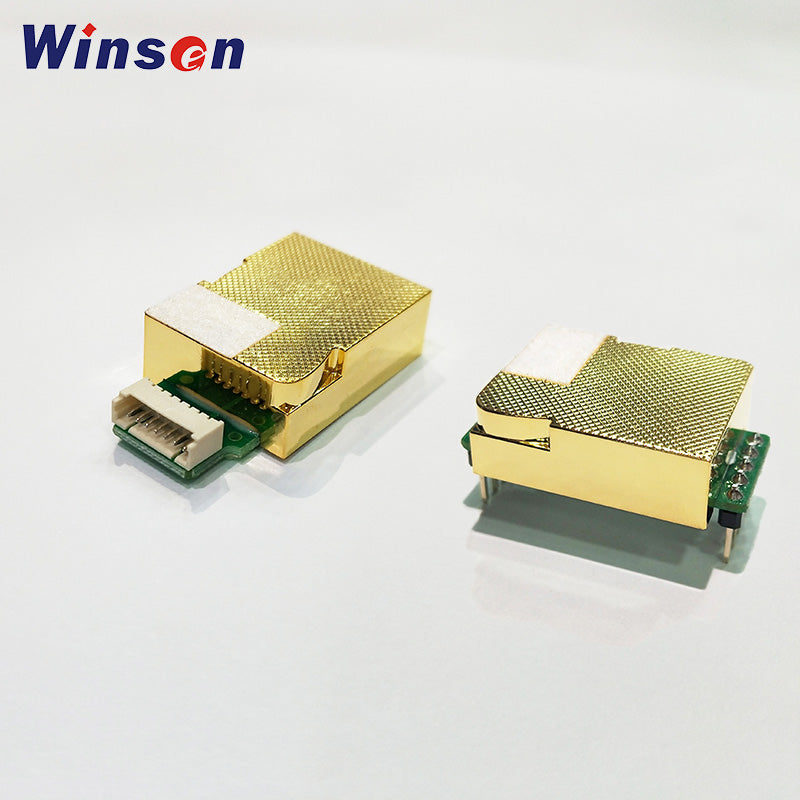

Winsen MH-Z19C NDIR CO₂ Sensor for HVAC and Indoor Air Quality
Lead Time
Product Description
Winsen MH-Z19C NDIR CO₂ Sensor for HVAC and Indoor Air Quality is designed for the sensing and monitoring work identified in its specifications. It gives a compatible controller or monitoring system access to the quantities this model is designed to measure. The Working Voltage specification is 5.0 ± 0.1 V DC. The Detection Range specification is 400–10,000 ppm (optional range). The Resolution specification is 1 ppm. When choosing this sensor module, start with the documented configuration. The measurement range and signal output should suit the job before you choose a sensor. Supply, mounting and environmental limits are separate checks; any stated calibration or handling requirements also remain relevant. The dimensions figure is 32.9 × 19.7 × 8.6 mm. The Detection Gas specification is Carbon Dioxide (CO₂). The Detection Principle specification is Non-Dispersive Infrared (NDIR). The Accuracy specification is ±(50 ppm + 5% of reading). The Average Current specification is <40 mA at 5 V.
Applications
Product Specifications
| Model | MH-Z19C |
| Detection Gas | Carbon Dioxide (CO₂) |
| Detection Principle | Non-Dispersive Infrared (NDIR) |
| Detection Range | 400–10,000 ppm (optional range) |
| Resolution | 1 ppm |
| Accuracy | ±(50 ppm + 5% of reading) |
| Working Voltage | 5.0 ± 0.1 V DC |
| Average Current | <40 mA at 5 V |
| Peak Current | 125 mA at 5 V |
| Output | UART (3.3 V TTL) and PWM |
| Preheat Time | 1 minute |
| Response Time | T90 <120 seconds |
| Working Temperature | −10 to 50 °C |
| Working Humidity | 0–95% RH, non-condensing |
| Storage Temperature | −20 to 60 °C |
| Dimensions | 32.9 × 19.7 × 8.6 mm |
| Weight | 5 g |
| Service Life | More than 10 years |
Product Features
- Operation is based on NDIR infrared technology for selective, oxygen-independent CO₂ measurement.
- Available functions include an optional 400-10,000ppm measurement range with 1ppm resolution.
- UART 3.3V TTL and PWM outputs for controller and IoT integration is provided by the unit.
- Supported by Built-in temperature compensation: stable measurement across the operating range.
- Gold-plated sensing chamber improves durability and resistance to water vapour.
- Use this version for HVAC, indoor-air-quality monitoring and ventilation control.
Package Includes
- 1 × Winsen MH-Z19C NDIR CO₂ Sensor Module
Frequently Asked Questions
What is the Winsen MH-Z19C NDIR CO₂ Sensor for HVAC and Indoor Air Quality used for?
What are its main features?
What specifications should I check before choosing this product?
What operating or installation limits should I consider?
What is included in the package?
