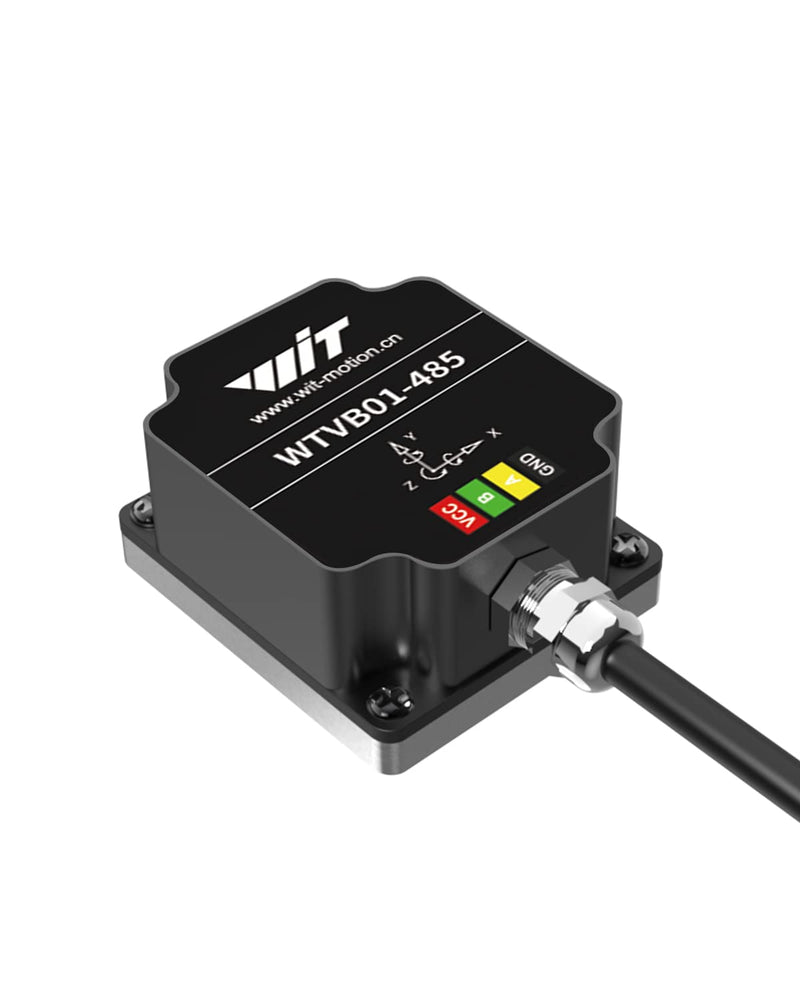

WIT WTVB01-485 RS485 Industrial Vibration Sensor
Lead Time
Product Description
Industrial-grade WIT WTVB01-485 vibration sensor for real-time condition monitoring of motors, pumps, fans and other rotating machinery. It provides RS485 communication with an adjustable 4800–230400 bps baud rate and outputs three-axis vibration velocity, vibration angle, vibration displacement and temperature data. The rugged IP67 design, wide 5–36V DC supply range and configurable detection/filter settings make it suitable for predictive maintenance and industrial equipment monitoring.
Applications
Product Specifications
| Brand | WIT / WitMotion |
|---|---|
| Model | WTVB01-485 |
| Sensor type | Industrial vibration sensor |
| Communication interface | RS485 |
| Protocol | Modbus RTU |
| Baud rate | 4800–230400 bps |
| Input voltage | 5–36V DC |
| Measurement axes | X / Y / Z |
| Vibration velocity range | 0–50 mm/s |
| Vibration displacement range | 0–30000 µm |
| Vibration frequency range | 1–100 Hz |
| Filtering | Digital filtering |
| Protection rating | IP67 |
| Operating temperature | -40°C to +85°C |
| Dimensions | Approx. 47 × 38 × 33 mm |
| Weight | Approx. 182 g |

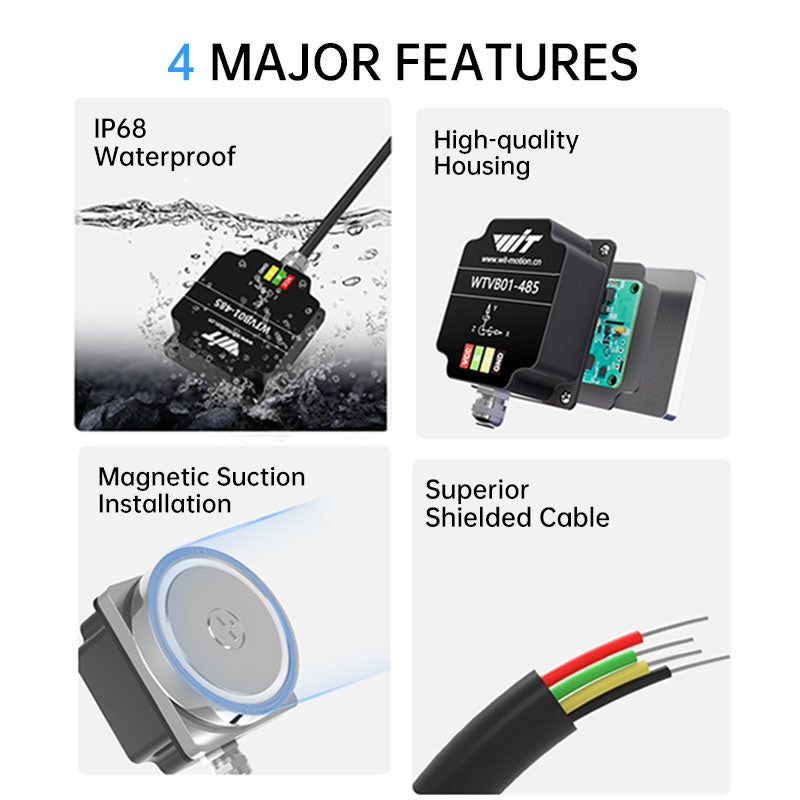

Product Features
- Designed for continuous vibration and condition monitoring of motors, pumps, fans, compressors, generators and other rotating machinery.
- RS485 Modbus communication enables integration with PLC, SCADA, industrial gateways and data-acquisition systems.
- Configurable baud rate from 4800 to 230400 bps supports flexible industrial network settings.
- Provides three-axis vibration data including vibration velocity, displacement and frequency for predictive-maintenance applications.
- Digital filtering and configurable sensor parameters help improve measurement stability in industrial environments.
- Rugged IP67 housing supports installation in dusty and moisture-prone equipment areas.
Package Includes
- 1 × WIT WTVB01-485 RS485 Vibration Sensor
- 1 × Standard connection cable
Frequently Asked Questions
What is the WIT WTVB01-485 RS485 Industrial Vibration Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Industrial RS485 Modbus vibration sensor for machinery condition monitoring
- Adjustable communication baud rate from 4800 to 230400 bps
- Three-axis vibration monitoring for rotating equipment
- Vibration velocity, displacement and frequency measurement
- Digital filtering for stable industrial monitoring
- IP67 enclosure with wide 5–36V DC input
SKU: 2ESE20020
₹ 7,499.00
