WS101-915M - LoRaWAN® Smart Button, Control Made Simple, Convenience Redefined
WS101-915M - LoRaWAN® Smart Button, Control Made Simple, Convenience Redefined
Low Stock, 1 left
Product Description
WS101 is a LoRaWAN®-based smart button for wireless controls, triggers and alarms. Multiple user-defined press actions can control devices or trigger scenes. Milesight also offers a red-button version for SOS calls.
Compact and battery-powered, WS101 is easy to install and carry. With compatible Milesight LoRaWAN® gateways, Milesight IoT Cloud and Milesight Development Platform solutions, users can receive alerts and trigger sensors or appliances remotely. Applications include smart homes, offices, hotels and schools.
Product Specifications
| Model | WS101-915M |
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal |
| Frequency | 915 MHz variant; regional plan to be confirmed. Family supports CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx power | 22 dBm (915 MHz) |
| Sensitivity | -137 dBm @300 bps |
| Mode | OTAA/ABP, Class A |
| Controls | 1 external button: short press, long press, double press; 1 internal reset button |
| Indicators | 1 status/alarm LED and 1 buzzer |
| Configuration | Mobile app via NFC or LoRaWAN downlink |
| Advanced feature | Milesight D2D controller |
| Power | 1 × 1650 mAh ER14335 Li-SOCl2 battery |
| Battery life | Up to 5 years advertised; supplied datasheet estimates 9.3 years (SF7, US915) / 7.1 years (SF10, US915) at 1080-minute reporting interval, 10 presses/day and 25°C. Actual life depends on use and environment. |
| Operating temperature | -20°C to +60°C |
| Humidity | ≤90%, non-condensing |
| Protection | IP30 |
| Housing | Flame-retardant polycarbonate |
| Color | White housing; white scene button or red SOS button available |
| Weight | 38.8 g including battery |

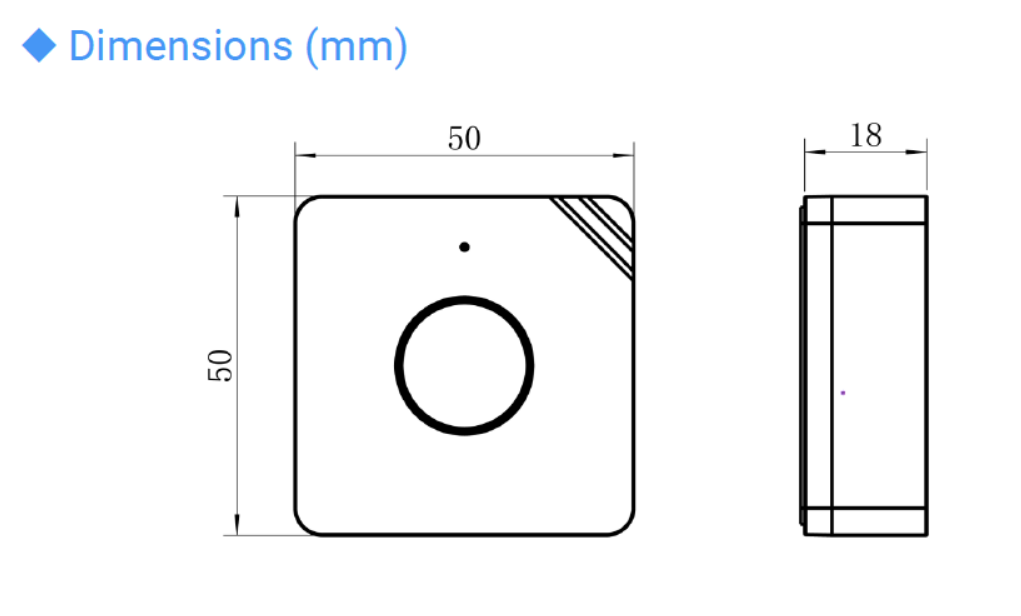

| Dimensions | 50 × 50 × 18 mm; button diameter 20 mm |
| Installation | Flat surfaces using screws or 3M tape; lanyard mounting |
| Approvals | CE, FCC, LoRaWAN® Certified; RoHS |
Product Features
- Supports multiple press actions to control devices, trigger scenes or send emergency alarms
- Compact size for easy installation and carrying
- Built-in LED and buzzer indicate press actions, network status and low battery
- Wireless transmission up to 15 km in line of sight, subject to deployment conditions
- NFC one-touch configuration with card emulation mode
- Milesight D2D enables ultra-low latency direct control without a gateway
- Works with standard LoRaWAN® gateways and network servers
- Compatible with Milesight IoT Cloud and Milesight Development Platform
Package Includes
- 1 × WS101-915M LoRaWAN® Smart Button
- 1 × 1650 mAh ER14335 battery (device power supply)
- Mounting accessory contents to be confirmed with the supplied package
