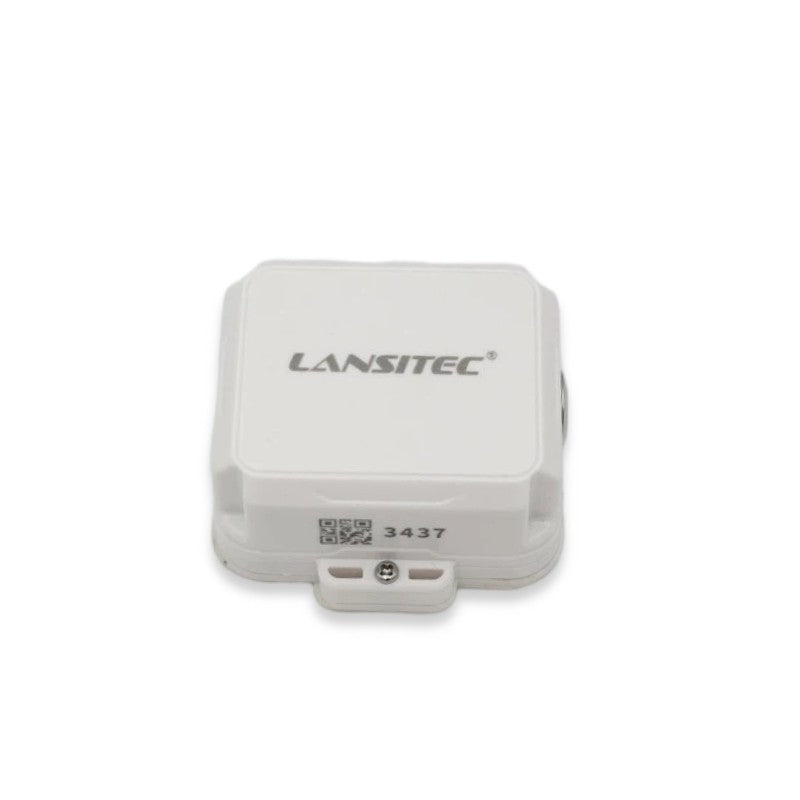

100-000C4 - LTE Cat-1 Asset Management Tracker
Low Stock, 1 left
Product Description
LTE Cat-1 Asset Management Tracker
The Lansitec 100-000C4 LTE Cat-1 Asset Management Tracker combines multi-GNSS outdoor positioning, Bluetooth 5.0 beacon scanning and LTE Cat-1 cellular reporting in a compact IP68-rated enclosure. Designed for containers, transit cases, equipment and unattended assets, it supports satellite position reports, nearby BLE tag inventories and motion, shock, door-open and tamper monitoring. Compatible applications can use these reports for asset visibility, geofencing and utilisation analysis.
Two non-rechargeable 4,000 mAh Li-SOCl₂ batteries provide 8,000 mAh total capacity and OEM-rated operating life of more than three years in suitable use scenarios. The 133 g PC/ABS housing measures 78 × 79 × 35 mm including mounting lugs, or 78 × 66 × 35 mm without them, and operates from −45°C to +85°C. Lansitec cites less than 2.5 m GNSS precision in reference conditions, approximately 3 m BLE positioning precision with suitable infrastructure, up to 30,000 GNSS or 500,000 BLE positioning reports, 40 offline stored positions and Bluetooth firmware updates. Optional temperature sensing must be specified when ordering.
Applications
Container & Cargo Tracking
Industrial Equipment Monitoring
Cold-Chain Monitoring
Warehouse Asset Tracking
Museum & Exhibit Security
Remote Inventory Management
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-000C4 |
| Product Model | LTE Cat-1 Asset Management Tracker |
| TwoElectrons SKU | 2ESE2212 |
| Category | RTLS / Asset Tracking |
| Primary Application | Long-term asset, logistics case, container and equipment tracking |
| Cellular Connectivity | 4G LTE Cat-1, region-specific radio options |
| Cellular SIM | Nano SIM or eSIM |
| Data Transport | MQTT, HTTP(S), TCP, UDP |
| Multi-GNSS | GPS, BeiDou/BDS and GLONASS (OEM current product page); additional constellations listed in OEM datasheet may be firmware dependent |
| GNSS Positioning Accuracy | Less than 2.5 m CEP, OEM reference conditions |
| GNSS Cold Start | 30–60 seconds |
| Assisted GNSS | Supported |
| Bluetooth Version | Bluetooth 5.0 |
| BLE Formats | iBeacon, Eddystone, compatible private BLE broadcasts |
| Bluetooth TX Power | −20 to +4 dBm, adjustable in 4 dBm increments |
| Bluetooth Receiver Sensitivity | −96 dBm |
| BLE Indoor Positioning Accuracy | Approx. 3 m, with compatible infrastructure |
| BLE Beacon Association | Supported |
| Battery Type | Non-rechargeable lithium thionyl chloride (Li-SOCl₂) primary cells |
| Battery Configuration | 2 × 4,000 mAh |
| Total Nominal Battery Capacity | 8,000 mAh |
| Estimated Battery Endurance | More than 3 years, depending on reporting duty cycle and network conditions |
| GNSS Report Capacity | Approximately 30,000 reports at intervals greater than 10 minutes (OEM reference) |
| Bluetooth Positioning Capacity | Approximately 500,000 reports (OEM reference) |
| Standby Current | 15 µA |
| Maximum Current | 145 mA |
| Device Report Interval | 5 s × n, n = 1–65,536 |
| Heartbeat Interval | 30 s × n, n = 1–65,536 |
| GNSS Report Interval | 5 s × n, n = 1–65,536 |
| Shock / Vibration Alerts | Supported |
| Door Open / Close Monitoring | Supported |
| Tamper Detection | Supported |
| Geo-fence Tracking | Supported with compatible tracking platform |
| Movement Duration and Status | Supported |
| Offline Position Memory | 40 positions, uploads when network reconnects |
| BLE Data Filtering | Configurable selective payload reporting |
| BLE Data Compression | Supported |
| FOTA | Bluetooth firmware-over-the-air upgrade supported |
| NFC Provisioning | Supported per OEM product features; requires compatible setup tools |
| Temperature Monitoring | Optional OEM configuration; specify before order |
| Optional Temperature Sensor Range | −40°C to +85°C |
| Optional Temperature Sensor Accuracy | ±5°C (OEM chamber-temperature reference) |
| Optional Temperature Sensor Resolution | 0.25°C |
| Dimensions (with Mounting Lugs) | 78 × 79 × 35 mm |
| Dimensions (without Mounting Lugs) | 78 × 66 × 35 mm |
| Weight | 133 g |
| Enclosure Material | PC and ABS |
| Ingress Protection | IP68 |
| PCB Coating | Waterproof coating |
| Operating Temperature | −45°C to +85°C |
| Storage Temperature | −60°C to +90°C |
| Relative Humidity | 0–95% RH, non-condensing |
| Cellular Network Requirement | Active SIM/eSIM, compatible LTE Cat-1 radio variant, mobile coverage and configured application server |
Product Features
- Multi-Technology Asset Tracking: Combines GNSS outdoors, Bluetooth 5.0 proximity or compatible indoor positioning and 4G LTE Cat-1 uplinks to connected asset-management applications.
- Long-Life Battery: Two 4,000 mAh Li-SOCl₂ primary cells provide an 8,000 mAh nominal battery pack. Lansitec estimates over three years of operation with suitable use; batteries are non-rechargeable.
- Outdoor and Indoor Positioning: GNSS provides less than 2.5 m CEP reference positioning outdoors; BLE RSSI positioning is approximately 3 m with compatible anchors, tags and installed software.
- Rugged Mountable Housing: IP68 PC/ABS enclosure with waterproof PCB coating, mounting lugs, wide operating-temperature support and compact 133 g form factor.
- Asset Condition and Security: Monitor acceleration/movement duration, vibration/shock, tampering, and container or case door-open events with supported application rules and alerts.
- Bluetooth Tag Association: Scans and inventories nearby compatible BLE beacon/tag advertisements to associate goods with a protected container or equipment case.
- Resilient Reporting: Supports MQTT, HTTP(S), TCP and UDP over LTE Cat-1; retains up to 40 locations when out of coverage and forwards them after network reconnection.
- Device Management: Supports configurable reporting/heartbeat intervals, filtered BLE payload uplinks, compression, supported NFC pairing, Bluetooth firmware updates and optional temperature monitoring.
Package Includes
- 1 × Lansitec 100-000C4 LTE Cat-1 Asset Management Tracker with standard 2 × 4,000 mAh Li-SOCl₂ battery configuration
SIM/eSIM subscription, separate BLE tags, installation hardware, optional temperature sensor and tracking software are not assumed to be included. Confirm the accepted OEM packing list.
Frequently Asked Questions
What is the Lansitec 100-000C4 LTE Cat-1 Asset Management Tracker used for?
Does the 100-000C4 provide indoor and outdoor location tracking?
What batteries are included and what is the expected lifespan?
Is it waterproof and does it detect tampering or door opening?
How does it connect and can it be configured remotely?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 4G LTE Cat-1 asset tracker integrating multi-GNSS and Bluetooth 5.0 positioning
- Less than 2.5 m GNSS accuracy (CEP, OEM reference); approximately 3 m BLE indoor accuracy with compatible RTLS
- Two 4,000 mAh non-rechargeable lithium-thionyl-chloride batteries (8,000 mAh total)
- IP68-rated PC/ABS enclosure with waterproof-coated PCB for industrial deployments
- Three-plus-year OEM-estimated battery autonomy under suitable report settings
- Motion, vibration/shock, tamper, door opening and geo-fence monitoring
- Up to 30,000 GNSS reports or 500,000 Bluetooth-positioning reports per OEM reference
- Offline cache of 40 positions, Bluetooth FOTA, NFC provisioning and BLE tag association
