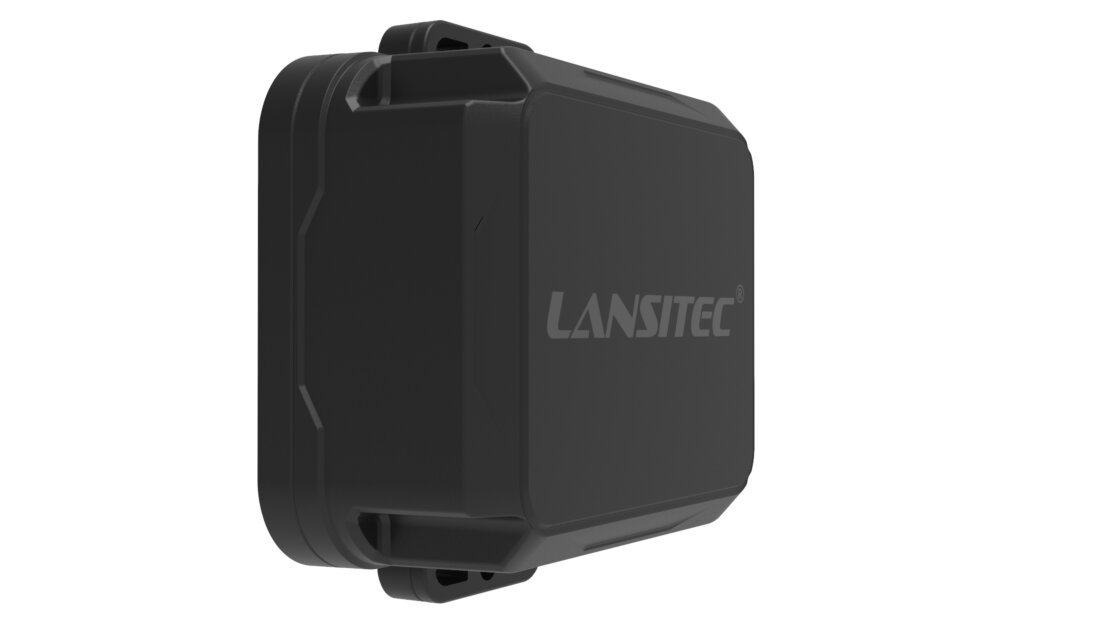

100-000S1 - LoRaWAN Valve Positioning Sensor
Low Stock, 1 left
Product Description
LoRaWAN Valve Positioning Sensor for Remote Industrial & Municipal Valve Monitoring
The Lansitec Valve Positioning Sensor leverages LoRa technology and a built-in magnet sensor to track valve rotation angles with 1° accuracy. This compact device measures both the direction and total number of turns, reporting real-time data to a LoRaWAN gateway. With configurable heartbeat intervals and operating modes, plus support for FOTA over Bluetooth, it delivers reliable performance and minimal maintenance in industrial or municipal environments.
Applications
Pipeline Flow Control
Municipal Water Management
Industrial HVAC Systems
Smart Irrigation
Remote Infrastructure
Offshore & Marine Operations
Product Specifications
| Model / Part Number | 100-000S1 |
| Product Type | LoRaWAN Valve Positioning Sensor |
| Dimensions | 78 × 79 × 35 mm with mounting lugs; 78 × 66 × 35 mm without mounting lugs |
| Ingress Protection | IP68 |
| Weight | 133 g |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -10°C to +30°C |
| Operating Humidity | 0%–95% RH, non-condensing |
| Housing Material | PC and ABS |
| PCB Coating | Waterproof coating |
| Battery | 2 × 2800mAh (5600mAh total) |
| Typical Battery Life | Approximately 4 years at 5 valve-state reports per day |
| Activation Mode | OTAA or ABP |
| LoRa Frequency | US915 / AU915 / EU868 / EU433 / AS920-923 / AS923-925 / RU864 / ID920 / KR920 / IN865 / KZ865 / CN470 / CN470-Ali |
| LoRa TX Power | 0 to 14 dBm |
| LoRa Sensitivity | -137 dBm @ SF12, BW 125 kHz |
| LoRa Communication Distance | >1 km in an urban area |
| Encryption | AES128 |
| Angle Accuracy | 1° |
| Degree Range | 0°–360° |
| Maximum Number of Turns | ±50 |
| Report Delay | 5 s |
| Standby Current | 20 μA |
| FOTA Over Bluetooth | Supported |
| 3D Accelerometer / G-sensor | Supported |
| Calibration | Supported |
Product Features
- 1° Rotation Accuracy: Precisely detects forward or reverse valve turns within a 360° range for accurate valve-state monitoring.
- Compact Design: The small 78 × 79 × 35 mm enclosure with mounting lugs is easy to install where space is limited.
- LoRaWAN Connectivity: Transmits secure AES128-encrypted data over distances greater than 1 km in urban environments.
- Long Battery Life: Dual 2800mAh batteries provide 5600mAh total capacity and approximately four years of typical service at five valve-state reports per day.
- FOTA Over Bluetooth: Firmware can be updated without disassembling or uninstalling the sensor.
- 3D Accelerometer: The built-in G-sensor supports motion-based detection and system calibration.
Package Includes
- 1 × 100-000S1 LoRaWAN Valve Positioning Sensor
Frequently Asked Questions
What is the 100-000S1 - LoRaWAN Valve Positioning Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 1° valve rotation accuracy across a 0°–360° range
- Forward/reverse rotation detection with cumulative turn counting up to ±50 turns
- LoRaWAN long-range connectivity with AES128 encryption and IN865 support
- IP68 compact enclosure for demanding industrial and municipal environments
- Dual 2800mAh batteries (5600mAh total) with approximately four years of typical operation
- FOTA over Bluetooth for convenient firmware updates
- Built-in 3D accelerometer (G-sensor) for motion detection and calibration
- Configurable reporting with approximately 5-second valve-state report delay
