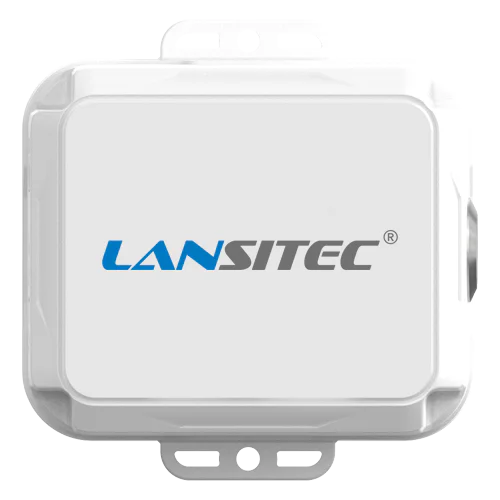

100-00165 - LoRaWAN Asset Management Tracker
Low Stock, 1 left
Product Description
LoRaWAN Asset Management Tracker
100-00165 - LoRaWAN Asset Management Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. Bluetooth Protocol support is listed as Bluetooth 5.0, iBeacon. LoRaWAN Protocol support is listed as LoRaWAN 1.0.2B, Class A. Power is provided through the stated Li/SOCl2 4000mAh × 2 arrangement. When choosing this lorawan asset management tracker, start with the documented configuration. Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. The Bluetooth TX Power specification is -20 to +4 dBm, configurable in 4 dBm steps. The LoRa TX Power specification is 0 to 20 dBm. This version also supports mechanical power switch enable/disable. The LoRa Frequency specification is US915 / AU915 / EU868 / EU433 / AS923 / RU864 / KR920 / IN865 / CN470. The Temperature Sensor Range specification is -40°C to +85°C.
Product Specifications
| Product / Part Number | 100-00165 |
|---|---|
| Product Type | LoRaWAN Asset Management Tracker |
| Dimensions | 78 × 79 × 35 mm with mounting lugs; 78 × 66 × 35 mm without mounting lugs |
| Operating Temperature | -45°C to +85°C |
| Storage Temperature | -60°C to +90°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Weight | 133 g |
| Housing Material | ABS and PC |
| PCB Coating | Waterproof coating |
| Ingress Protection | IP68 |
| Battery | Li/SOCl2 4000mAh × 2 |
| GNSS Position Reports | Approx. 30,000 times when report interval is greater than 10 minutes |
| Bluetooth Positioning | Approx. 500,000 times |
| Standby Current | 15 μA |
| Maximum Current | 145 mA |
| Bluetooth Protocol | Bluetooth 5.0, iBeacon |
| Bluetooth TX Power | -20 to +4 dBm, configurable in 4 dBm steps |
| Bluetooth Sensitivity | -96 dBm |
| LoRaWAN Protocol | LoRaWAN 1.0.2B, Class A |
| Activation Mode | OTAA or ABP |
| LoRa Frequency | US915 / AU915 / EU868 / EU433 / AS923 / RU864 / KR920 / IN865 / CN470 |
| LoRa TX Power | 0 to 20 dBm |
| LoRa Sensitivity | -137 dBm @ SF12, BW125kHz, 868/915MHz |
| LoRa Communication Distance | >1 km in urban area |
| Encryption | AES128 |
| GNSS System | BDS / GPS / GLONASS (the Lansitec source page labels this row “Encryption” under GNSS) |
| GNSS Position Accuracy | <2.5 m CEP |
| GNSS Cold Start | 30–60 s |
| Position Report Interval | 5s × n (1–65536) |
| Heartbeat Report Interval | 30s × n (1–65536) |
| Switch | Mechanical |
| Optional Temperature Report | Available on request; advise Lansitec upon ordering |
| Temperature Sensor Range | -40°C to +85°C |
| Temperature Accuracy | Chamber temperature in the beacon, ±5°C |
| Temperature Resolution | 0.25°C |
| Tamper Detection | Supported |
| FOTA over Bluetooth | Supported |
| Movement Duration | Supported |
| Door Open/Close Sensing | Supported |
| Vibration Shock Detection | Supported |
| Asset Management with Bluetooth Tags | Supported; reports nearby Bluetooth tags |
| Offline Position Cache | 40 positions |
| Mechanical Power Switch Enable/Disable | Supported |
| 3D Accelerometer | Supported |
| NFC Tag | 1 KB |
Product Features
- Indoor and Outdoor Location:Outdoor locations use GNSS, while Bluetooth 5.0 provides the indoor positioning method.
- Movement and Shock Events:Movement duration and shock detection help monitor machine operation, movement and use beyond configured parameters.
- IP68 Housing:An IP68 housing protects the tracker against water and dust; operation must remain within the specified temperature limits.
- Nearby Tag Reporting:Nearby Bluetooth tag reports support inventory monitoring for items held in containers and transit cases.
- Battery Operation:Two 4000mAh Li/SOCl2 batteries power the tracker for thousands of positioning reports.
- Position Storage and Firmware Updates:Up to 40 location records can be cached while the network is unavailable. Firmware updates use Bluetooth.
- Tamper and Door Events:Tamper and door-state sensing report device removal or unexpected container opening.
- Reporting Configuration:Position and heartbeat intervals are configurable, allowing report frequency to be matched to the monitoring task and battery use.
Package Includes
- 1 × 100-00165 LoRaWAN Asset Management Tracker
Frequently Asked Questions
What is the 100-00165 - LoRaWAN Asset Management Tracker used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
