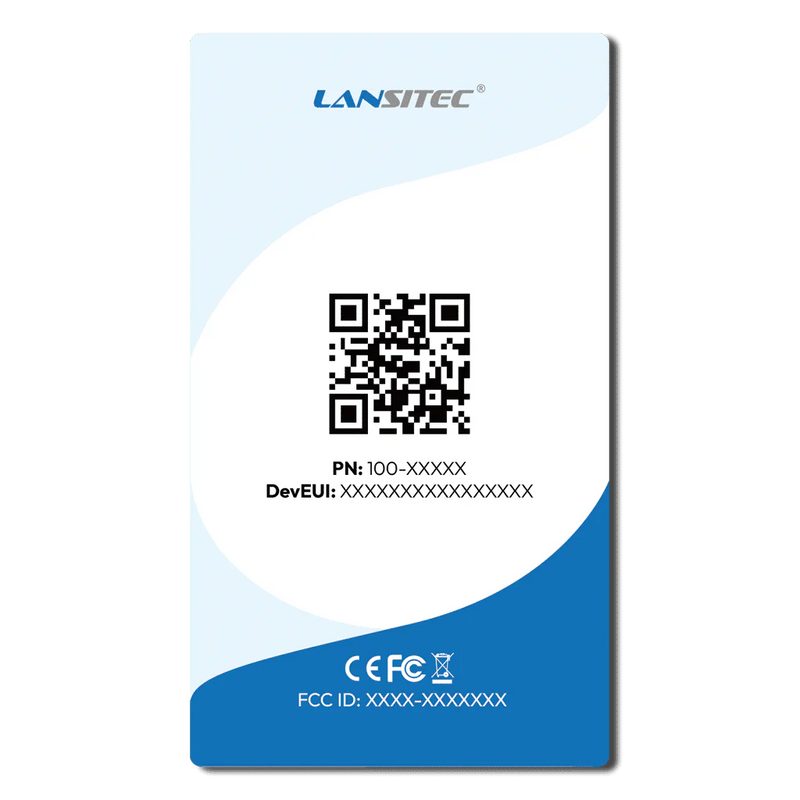

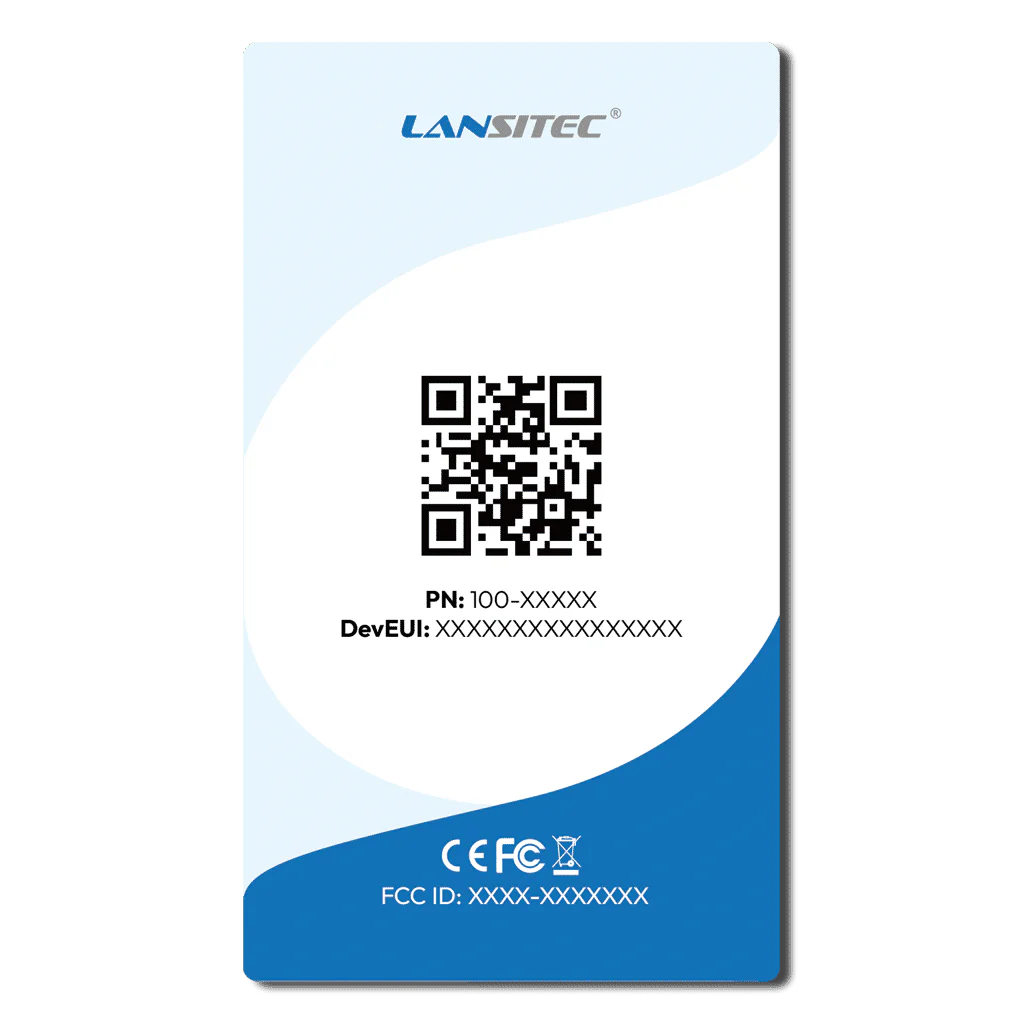

100-00173 - LoRaWAN Tracking Label
Low Stock, 1 left
Product Description
LoRaWAN Tracking Label
100-00173 - LoRaWAN Tracking Label is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. Bluetooth Protocol support is listed as Bluetooth 5.0. LoRaWAN Protocol support is listed as LoRaWAN 1.0.2B. Power is provided through the stated 1800mAh disposable lithium battery arrangement. When choosing this lorawan tracking label, start with the documented configuration.
Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. The Battery Life specification is >3 years at 6 GNSS reports per day. This version also supports low-battery alert. The LoRa Frequency specification is US915 / AU915 / EU868 / EU433 / AS923 / RU864 / KR920 / IN865 / CN470. The dimension figure is 120 × 75 × 3 mm. The Operating Temperature specification is -35°C to +75°C.
Applications
Package & Pallet Tracking
Warehouse Inventory Control
Cold Chain Logistics
Rental & Leasing Management
Smart Returnable Packaging
Product Specifications
| Model / Part Number | 100-00173 |
|---|---|
| Product Type | LoRaWAN Tracking Label |
| Dimension | 120 × 75 × 3 mm |
| Operating Temperature | -35°C to +75°C |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 0%–95% RH, non-condensing |
| Weight | 50 g |
| Ingress Protection | IP66 |
| Battery | 1800mAh disposable lithium battery |
| Battery Life | >3 years at 6 GNSS reports per day |
| Operating Current | 20 μA–139 mA |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915 / AU915 / EU868 / EU433 / AS923 / RU864 / KR920 / IN865 / CN470 |
| LoRa Distance | >1 km in urban area |
| LoRa Sensitivity | -139 dBm @ SF12, BW125kHz, 434/470MHz; -137 dBm @ SF12, BW125kHz, 868/915MHz |
| Bluetooth Distance | 150 m line of sight |
| Indoor Tracking | Bluetooth, 1–3 m accuracy |
| Outdoor Tracking | GNSS, <2.5 m CEP |
| 3D Accelerometer | Supported |
| Encryption | AES128 |
| Low-Battery Alert | Supported |
| Vibration Intensity Adjustment | Supported |
| Operating Mode | Adjustable GNSS coordinate acquisition frequency, adjustable LoRa communication frequency, automatic BLE/GNSS tracking switching |
| Certification | CE, FCC, RCM |
Product Features
- Ultra-Thin & Disposable Design:At just 3 mm thick, it is easy to attach to packages or pallets for lightweight single-use tracking.
- Intelligent Motion Detection:The 3-axis accelerometer detects movement or tampering and can help adjust tracking behavior to conserve power.
- Dual Indoor/Outdoor Tracking:Automatically switches between Bluetooth for 1–3 m indoor accuracy and GNSS for less than 2.5 m CEP outdoors.
- Rugged IP66 Enclosure:Helps protect against moisture, dust and everyday transit conditions.
- Long Battery Life:Supported by the disposable lithium battery: more than three years of operation at six GNSS reports per day.
- Low Operating Costs:LoRaWAN connectivity avoids recurring cellular data-plan costs.
Package Includes
- 1 × 100-00173 LoRaWAN Tracking Label
Frequently Asked Questions
What is the 100-00173 - LoRaWAN Tracking Label used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
