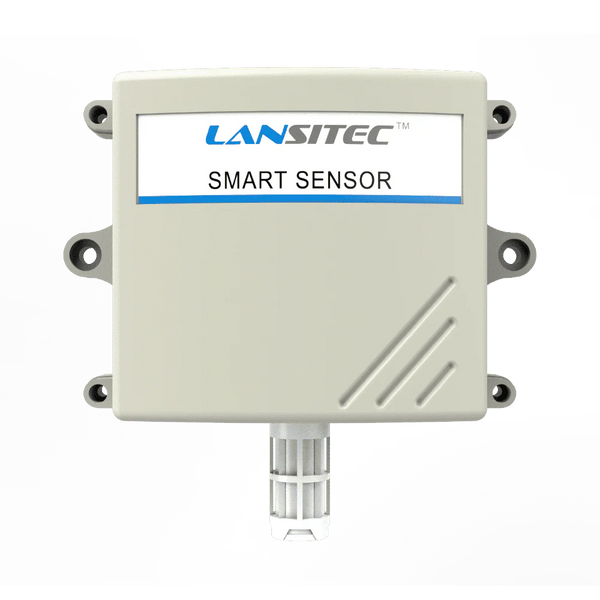

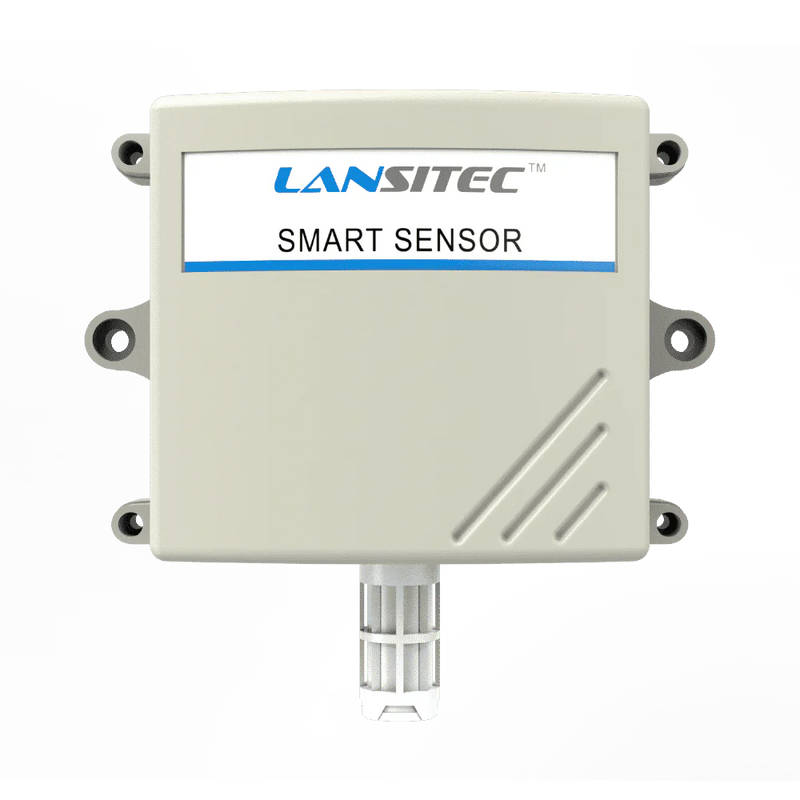

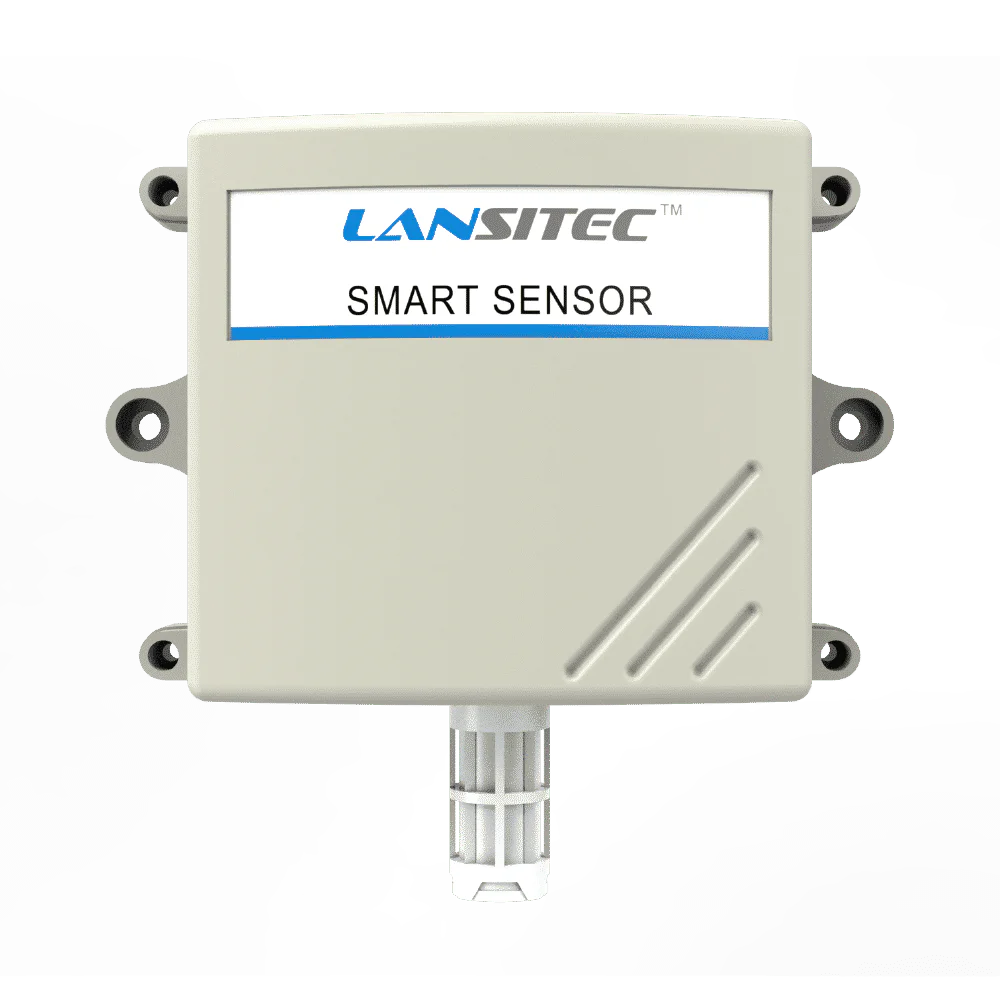

100-00196 - LoRaWAN Temperature and Humidity Sensor
Low Stock, 1 left
Product Description
LoRaWAN Temperature and Humidity Sensor
The Lansitec Temperature and Humidity Sensor leverages LoRaWAN technology for long-range connectivity and is powered by a 19,000mAh lithium thionyl chloride battery for up to 5 years of operation. Its IP65-rated enclosure makes it ideal for outdoor deployments in harsh environments, and the device can be easily managed via LoRaWAN downlink commands.
Its compact design, cost-effective operation and auto-calibration features help ensure consistent temperature and humidity monitoring with minimal maintenance. The sensor supports a wide measurement range and can integrate with Lansitec wireless data transfer units or existing LoRaWAN networks for rapid deployment across cold-chain, healthcare, agriculture and remote storage applications.
Product Specifications
| Model / Part Number | 100-00196 |
| Product Type | LoRaWAN Temperature and Humidity Sensor |
| Wireless Protocol | LoRaWAN 1.0.2B |
| Frequency Plans | EU868 / US915 / AS923 / IN865 and other supported regional plans |
| LoRa Range | >2 km in open environments |
| Temperature Measurement | -40°C to +125°C |
| Temperature Accuracy | ±0.3°C |
| Humidity Measurement | 0% to 99% RH |
| Humidity Accuracy | ±3% RH |
| Battery | 19,000mAh lithium thionyl chloride |
| Battery Life | Up to 5 years |
| Ingress Protection | IP65 |
| Housing | ABS |
| Operating Temperature | -40°C to +85°C |
| Remote Management | LoRaWAN downlink commands |
| Certifications | CE / FCC / RCM |
Product Features
- Wide Measurement Range: Measures temperature from -40°C to +125°C with ±0.3°C stated accuracy and relative humidity from 0% to 99% with ±3% RH stated accuracy.
- Flexible Connectivity: LoRaWAN 1.0.2B supports regional frequency plans including EU868, US915, AS923 and IN865, with long-range communication suitable for remote monitoring.
- Long Battery Life: A built-in 19,000mAh lithium thionyl chloride battery supports up to 5 years of service, reducing maintenance and battery replacement frequency.
- Auto-Calibration & Low Maintenance: Automatic calibration and remote LoRaWAN downlink management support consistent operation with minimal field intervention.
- Robust Enclosure: IP65 protection and an ABS housing help protect the device from dust and water in harsh environments.
- Easy Integration: Integrates with Lansitec wireless data transfer units or existing LoRaWAN networks for rapid deployment.
Package Includes
- 1 × Lansitec 100-00196 LoRaWAN Temperature and Humidity Sensor
Frequently Asked Questions
What is the 100-00196 - LoRaWAN Temperature and Humidity Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Temperature and humidity monitoring over LoRaWAN
- Temperature measurement from -40°C to +125°C with ±0.3°C stated accuracy
- Humidity measurement from 0% to 99% RH with ±3% RH stated accuracy
- 19,000mAh lithium thionyl chloride battery for up to 5 years of operation
- IP65-rated ABS enclosure for demanding indoor and outdoor deployments
- LoRaWAN 1.0.2B with EU868, US915, AS923, IN865 and other regional plans
- Wireless range greater than 2 km in open environments
- Remote configuration through LoRaWAN downlink commands
