100-00C11 - LTE Cat-1 Container Tracker
Low Stock, 1 left
Product Description
LTE Cat-1 Container Tracker

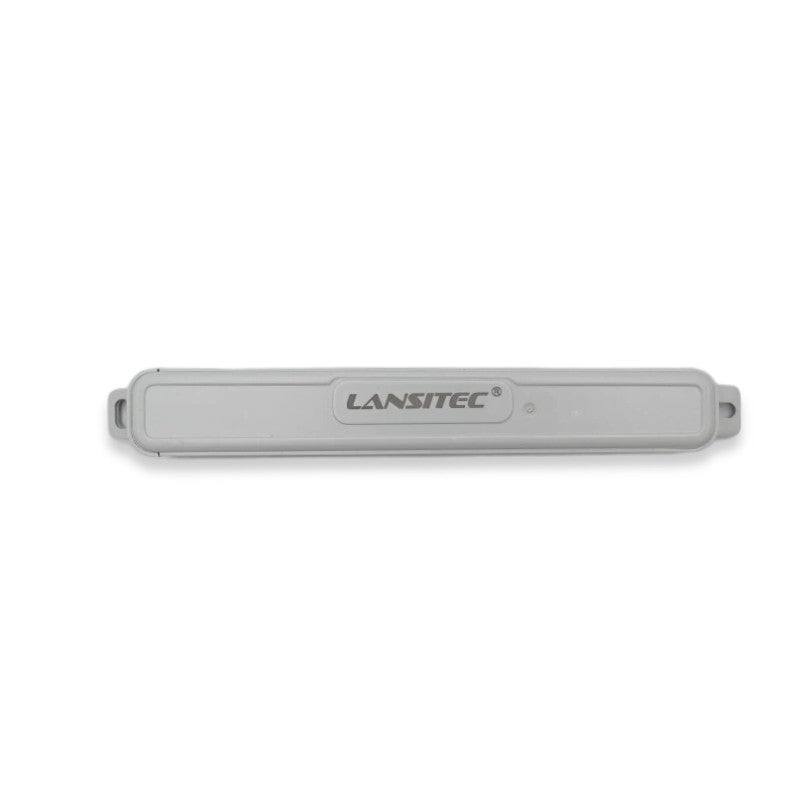

The Lansitec 100-00C11 LTE Cat-1 Container Tracker is a rugged, battery-powered GNSS and Bluetooth 5.0 asset-monitoring device built for cargo containers, pallets, transit cases and remotely deployed industrial equipment. GPS, BeiDou and GLONASS provide outdoor location fixes, while optional BLE tag reception adds visibility of nearby goods or assets. Position, motion and alarm information is uploaded through a compatible 4G LTE Cat-1 cellular network over MQTT, HTTP(S), TCP or UDP.
The slim 198 × 28 × 33 mm, 130 g tracker uses two non-rechargeable 4,000 mAh lithium-thionyl-chloride batteries (8,000 mAh total) inside an IP68-rated PC/ABS housing. Lansitec advertises up to five years of operation with 30-minute reporting in suitable conditions, and lists about 11,000 GNSS reports or 24,000 Bluetooth-positioning reports under its reference operating conditions. Tamper detection, door-open/close events, vibration or shock monitoring, a 3D accelerometer, offline caching of up to 40 positions and Bluetooth firmware updates support long-term asset protection. Temperature reporting is an optional order-time configuration, not guaranteed on the standard model.
Applications
Container Tracking
Logistics & Pallet Tracking
Transit Case Security
Industrial Equipment Monitoring
Remote Inventory
Fleet & Vehicle Tracking
Shipping & Returns Policy
Shipping, delivery, returns and replacements are governed by the published TwoElectrons policies and applicable order terms.
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-00C11 |
| Product Model | LTE Cat-1 Container Tracker |
| TwoElectrons SKU | 2ESE2209 |
| Category | RTLS / Asset Tracking |
| Primary Application | Asset, shipping container and transit-case tracking |
| Cellular Uplink | 4G LTE Cat-1 (regional band variants) |
| SIM | Nano SIM or eSIM |
| Server / Data Protocols | MQTT, HTTP(S), TCP and UDP |
| Multi-GNSS | GPS, BeiDou (BDS) and GLONASS |
| GNSS Position Accuracy | Less than 2.5 m CEP (OEM reference) |
| GNSS Cold Start | 30–60 seconds |
| Assisted GPS | Supported |
| Bluetooth Version | 5.0 |
| Beacon Reception | iBeacon, Eddystone and compatible private Bluetooth packets |
| Bluetooth Transmit Power | −20 to +4 dBm, configurable in 4 dBm increments |
| Bluetooth Receiver Sensitivity | −96 dBm |
| Nearby BLE Asset Tag Association | Supported |
| Battery Type | 2 × 4,000 mAh lithium-thionyl-chloride (Li-SOCl₂) primary cells |
| Nominal Battery Capacity | 8,000 mAh total (2 × 4,000 mAh) |
| Battery Charging | Non-rechargeable primary batteries |
| OEM Battery Life Estimate | Up to 5 years at 30-minute report intervals under reference operating conditions |
| GNSS Report Endurance | Approximately 11,000 reports with GNSS interval greater than 10 minutes (OEM test reference) |
| Bluetooth Positioning Reports | Approximately 24,000 reports (OEM test reference) |
| Standby Current | 25 µA |
| Maximum Current | 500 mA |
| Adjustable Position Report Interval | 5 seconds × n (n = 1 to 65,536) |
| Heartbeat Report Interval | 30 seconds × n (n = 1 to 65,536) |
| Tamper Detection | Supported |
| Door Open / Close Sensing | Supported |
| Vibration and Shock Detection | Supported |
| Movement Duration | Supported |
| 3-Axis Accelerometer | Built-in |
| Magnetic Power Switch | Supported |
| Bluetooth FOTA | Supported |
| Offline Position Storage | Up to 40 positions |
| NFC Tag | 1 KB |
| Temperature Reporting | Optional; to be specified at ordering |
| Optional Temperature Sensor Range | −40°C to +85°C |
| Optional Temperature Sensor Accuracy | Approximately ±5°C chamber temperature |
| Optional Temperature Resolution | 0.25°C |
| Dimensions | 198 × 28 × 33 mm |
| Weight | 130 g |
| Enclosure Material | PC and ABS |
| Ingress Protection | IP68 |
| PCB Coating | Waterproof coating |
| Operating Temperature | −20°C to +70°C (technical specifications) |
| Storage Temperature | −10°C to +30°C (technical specifications) |
| Humidity | 0%–95% RH, non-condensing |
| Regional Cellular Bands | Regional variants available; check the ordered India LTE Cat-1 variant and network operator compatibility |
| Deployment Dependency | Compatible cellular service with SIM/eSIM and a configured application server |
Product Features
- GNSS + LTE Cat-1 Coverage: Uses GPS, BeiDou and GLONASS to locate mobile assets outdoors, reporting coordinates through compatible LTE Cat-1 cellular connectivity.
- Bluetooth Tag Association: Scans Bluetooth 5.0 iBeacon, Eddystone and supported private advertisements to associate nearby secondary tags with containers, pallets and cases.
- Long-Life Primary Batteries: Two 4,000 mAh Li-SOCl₂ cells provide 8,000 mAh nominal combined capacity. OEM cites up to five years in a 30-minute-report example. Batteries are not rechargeable.
- Tamper and Door Events: Supports removal/tamper alerts and container door open/close event sensing to identify possible unauthorized access.
- Impact and Movement Monitoring: Built-in three-axis accelerometer, vibration/shock alerts and movement-duration tracking support goods security and equipment monitoring.
- IP68 Harsh-Environment Housing: Slim 198 × 28 × 33 mm PC/ABS enclosure uses waterproof PCB coating; operating range specified as −20°C to +70°C in the OEM technical table.
- Offline Data Caching: Stores up to 40 positions when a cellular network is unreachable, supporting recovery after service returns.
- Maintenance and Configuration: Magnetic Reed power switch, NFC (1 KB) and Bluetooth firmware-over-the-air updates support field configuration and device maintenance.
- Optional Temperature Measurement: Temperature reporting is an optional build/ordering feature; it is not guaranteed on every standard unit.
Package Includes
- 1 × Lansitec 100-00C11 LTE Cat-1 Container Tracker with standard integrated 2 × 4,000 mAh Li-SOCl₂ battery configuration
Activation SIM/eSIM, mounts, extra BLE tags and tracking-platform subscriptions are not confirmed as included; consult the supplier packing list.
Frequently Asked Questions
What is the Lansitec 100-00C11 LTE Cat-1 Container Tracker used for?
Does the 100-00C11 support GPS and Bluetooth positioning?
What is the battery capacity and how long does it last?
Can it detect tampering, vibration, and container-door opening?
How is the tracker connected, configured and maintained?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- LTE Cat-1 cellular GNSS tracker for shipping containers, pallets and industrial assets
- Multi-GNSS outdoor positioning (GPS, BeiDou and GLONASS), rated under 2.5 m CEP by OEM
- Bluetooth 5.0 scanning for nearby iBeacon, Eddystone and compatible BLE asset tags
- Up to 5 years OEM-estimated operation at 30-minute position reports with 2 × 4,000 mAh lithium primary batteries
- IP68-rated PC/ABS enclosure with tamper, door-opening and vibration/shock detection
- 3-axis accelerometer, magnetic power switch and 1 KB NFC tag
- Stores up to 40 positions during a cellular outage; uploads when network returns
- MQTT, HTTP(S), TCP or UDP reporting; Bluetooth FOTA and optional temperature sensing
