100-00C12 - Cat-1 Badge Tracker
Low Stock, 1 left
Product Description

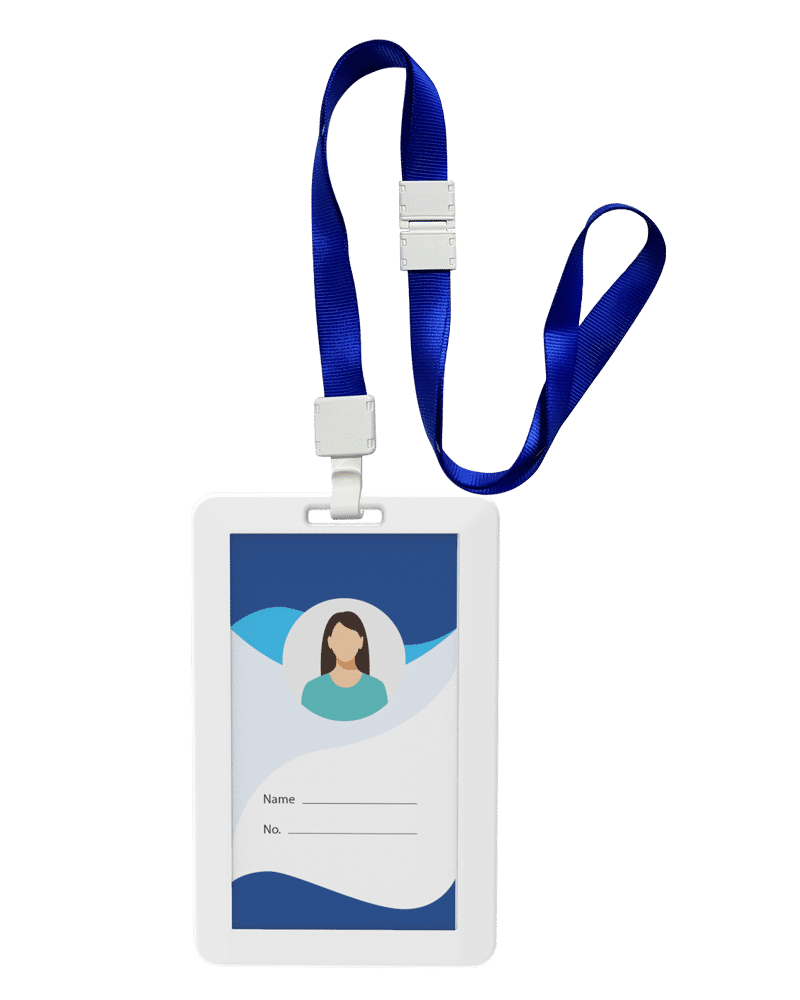

LTE Cat-1 Badge Tracker
The Lansitec 100-00C12 Cat-1 Badge Tracker is a lightweight, wearable tracking device for personnel, visitors and movable assets. It combines 4G LTE Cat-1 cellular reporting, multi-GNSS positioning for outdoor locations and Bluetooth 5.0 for compatible indoor RTLS deployments. With an integrated three-axis accelerometer, its tracking logic supports motion-aware power management and safety functions such as fall detection, panic alarms and geofencing with suitable platform setup.
The badge has a slim 97 × 62 × 7 mm ABS housing, weighs approximately 35 g and uses a 600 mAh rechargeable Li-ion battery. Lansitec lists up to six months of standby operation under reference conditions, about 600 GNSS position reports and approximately 2,000 Bluetooth positioning reports; battery performance depends on reporting intervals, positioning method and network coverage. Device functions include tamper and vibration alerts, a magnetic power switch, NFC tag, offline caching of up to 40 locations and Bluetooth firmware updates. Optional temperature sensing should be specified when ordering.
Applications
Hospital Personnel Tracking
Factory Worker Tracking
Construction Worker Safety
Visitor Management
Event Attendee Tracking
Asset & Vehicle Tracking
Shipping & Returns Policy
Dispatch, delivery, returns and replacements are subject to TwoElectrons' published shipping and returns policies and accepted order terms.
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-00C12 |
| Product Model | Cat-1 Badge Tracker |
| TwoElectrons SKU | 2ESE2210 |
| Product Category | RTLS / Asset Tracking |
| Primary Applications | Personnel, visitor, patient and movable-asset tracking |
| Connectivity | 4G LTE Cat-1, Bluetooth Low Energy, multi-GNSS |
| LTE Cellular Technology | LTE Cat-1 (regional-band variants; confirm ordered radio version) |
| SIM Card | Nano SIM or eSIM |
| Cellular Data Protocols | MQTT, HTTP(S), TCP and UDP |
| Bluetooth Version | 5.0 |
| BLE Formats | iBeacon, Eddystone and supported proprietary advertisements |
| Bluetooth Transmit Power | -20 dBm to +4 dBm, adjustable in 4 dB steps |
| Bluetooth Receiver Sensitivity | -96 dBm |
| Indoor Bluetooth Positioning | Approximately 1 to 3 m precision with compatible installation |
| GNSS Systems | GPS, BDS/BeiDou, Galileo, GLONASS, QZSS and SBAS |
| GNSS Accuracy | Less than 2.5 m CEP (OEM reference) |
| GNSS Cold Start | 30–60 seconds |
| Assisted GNSS | Supported |
| Battery Type | Rechargeable lithium-ion |
| Battery Capacity | 600 mAh |
| Maximum Standby | Up to 6 months (OEM reference; varies by network, positioning and report intervals) |
| GNSS Report Count | Approximately 600 at intervals greater than 10 minutes, under OEM reference conditions |
| Bluetooth Positioning Report Count | Approximately 2,000 (OEM reference) |
| Standby Current | 25 µA |
| Maximum Current | 200 mA |
| Dimensions | 97 × 62 × 7 mm (OEM technical page; ordering description also rounds to 95 × 61 × 7 mm) |
| Weight | 35 g |
| Enclosure Material | ABS |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Position Report Interval | 5 seconds × n, n = 1 to 65,536 |
| Heartbeat Report Interval | 30 seconds × n, n = 1 to 65,536 |
| 3-Axis Accelerometer | Built in |
| Geo-fencing | Supported |
| Fall Detection | Supported |
| Panic / Emergency Alert | Supported |
| Tamper Detection | Supported |
| Vibration / Shock Detection | Supported |
| Movement Duration | Supported |
| Nearby BLE Tag Management | Supported |
| Magnetic Reed Power Switch | Supported |
| Bluetooth Firmware Updates | Supported (FOTA over BLE) |
| Offline Cached Positions | Up to 40 |
| NFC Tag Capacity | 1 KB |
| Door Open / Close Sensing | Supported in OEM tracker function list; deployment dependent |
| Temperature Reporting | Optional; specify the sensor configuration at ordering |
| Optional Temperature Range | -40°C to +85°C |
| Optional Temperature Accuracy | ±5°C chamber temperature, OEM reference |
| Optional Temperature Resolution | 0.25°C |
| Ingress Protection Rating | Not specified on current OEM Cat-1 Badge Tracker product page |
| Certification Documentation | Specific certification approvals not listed on current OEM product page; request paperwork for supplied model |
Product Features
- Multi-Mode Positioning: Combines satellite positioning outdoors with Bluetooth 5.0 indoor location techniques and LTE Cat-1 cellular reports. Bluetooth accuracy depends on deployed tags, receivers and system calibration.
- People Safety Workflows: OEM highlights geofencing, fall detection and panic-button capabilities suitable for workforce visibility, patient safety and visitor management when supported by the deployed application.
- Multi-GNSS Reception: Supports GPS, BeiDou/BDS, Galileo, GLONASS, QZSS and satellite-based augmentation systems. Assisted GNSS can help shorten location acquisition under supported conditions.
- Motion-Aware Low Power: Integrated three-axis accelerometer and configurable position-report timing help tailor battery use to movement and reporting needs.
- Rechargeable Wearable Device: Slim 97 × 62 × 7 mm and 35 g ABS badge body integrates a 600 mAh rechargeable lithium-ion battery; charging and accessory inclusions are subject to the supplied order.
- Cellular Data Reporting: Cat-1 backhaul connects with supported Nano SIM/eSIM and sends location or status reports using MQTT, HTTP(S), TCP or UDP to a configured tracking server.
- Alarm and Asset Monitoring: Includes tamper, vibration/shock and movement-duration reporting; optional temperature sensor and nearby BLE tag association support asset tracking scenarios.
- Configurable Device Operation: Bluetooth FOTA, NFC tag, magnetic power switch and support for caching 40 locations during network loss simplify field administration and monitoring.
Package Includes
- 1 × Lansitec 100-00C12 Cat-1 Badge Tracker with integrated 600 mAh rechargeable lithium-ion battery
Lanyard, Micro-USB cable, power adapter, SIM service and tracking software are not confirmed as standard package inclusions and should be checked against the approved supplier packing list.
Frequently Asked Questions
What is the Lansitec 100-00C12 Cat-1 Badge Tracker used for?
Does the Cat-1 Badge Tracker support GPS and Bluetooth indoor tracking?
How long does the 600 mAh rechargeable battery last?
Which safety and monitoring features are available?
How is the badge connected, configured and maintained?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- GNSS, Bluetooth 5.0 and 4G LTE Cat-1 tracking for people and mobile assets
- Outdoor GNSS precision below 2.5 m CEP; Bluetooth-based indoor positioning approximately 1–3 m with compatible RTLS
- GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS navigation support
- Geo-fencing, fall detection, panic button and 3-axis accelerometer functions
- Rechargeable 600 mAh Li-ion battery, with up to 6 months maximum standby under reference conditions
- Ultra-slim 97 × 62 × 7 mm, 35 g ABS badge-style enclosure
- Motion, tamper, vibration/shock and optional temperature events; 40-position offline cache
- Bluetooth FOTA, 1 KB NFC tag and magnetic power switch; Nano SIM/eSIM Cat-1 reporting
