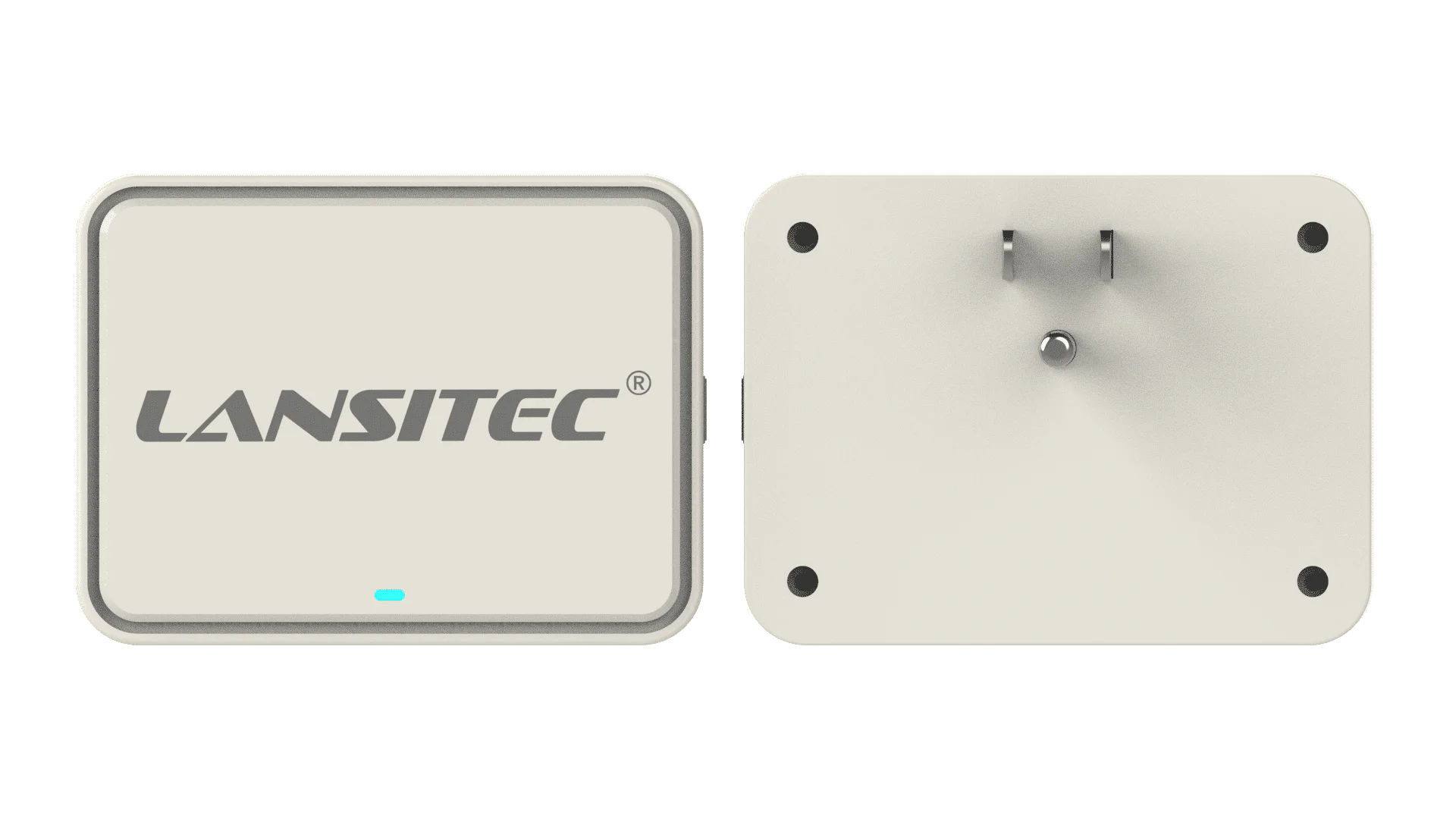

100-00PG1 - LoRaWAN SocketSync Bluetooth Gateway
Out of stock
Product Description
Bluetooth Socket Gateway
Streamline your indoor tracking and data collection with the Lansitec SocketSync Bluetooth Gateway. Built on a powerful combination of BLE and LoRaWAN technology, this compact device reads Bluetooth beacon data—such as location or sensor measurements—and forwards it securely via LoRaWAN to your preferred server or cloud platform.
Designed for easy installation in office buildings, hospitals, or public venues, the SocketSync Gateway features adjustable parameters—including heartbeat intervals and LoRaWAN work modes—so you can tailor its operation to your specific needs. Whether you’re tracking hospital equipment, monitoring staff movement, or managing public spaces, SocketSync offers a flexible, cost-efficient gateway solution with minimal downtime.
The gateway supports Bluetooth 5.0, up to 50 m BLE receiving range, LoRaWAN communication beyond 1.5 km in urban environments, AES128 encryption, FOTA over Bluetooth, configurable Bluetooth payload filtering, AC input from 85–305 VAC, and a 300 mAh rechargeable backup battery.
Product Specifications
| Model / Part Number | 100-00PG1 |
|---|---|
| Product Type | LoRaWAN SocketSync Bluetooth Gateway |
| Dimension | 81 × 61 × 26 mm (45 mm with mounting lug) |
| Housing Material | ABS with fire retardant |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| AC Input | 85–305VAC |
| Standby Current | 5mA |
| Maximum Current | 200mA |
| Backup Battery | 300mAh rechargeable Li-ion |
| Status LED | Supported |
| Switch | Mechanical / Supported |
| Bluetooth Protocol | Bluetooth 5.0 |
| Bluetooth TX Power | 4, 0, -4, -8, -12, -16, -20dBm |
| Bluetooth Sensitivity | -96dBm |
| Bluetooth Receiving Range | 50m |
| LoRaWAN Activation Mode | OTAA or ABP |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, ID920, KR920, IN865, KZ865, CN470, CN470-Ali |
| LoRa TX Power | 0 to 20dBm |
| LoRa Sensitivity | -139dBm @ SF12, BW125kHz, 434/470MHz; -137dBm @ SF12, BW125kHz, 868/915MHz |
| LoRa Communication Distance | >1.5km in urban area |
| Encryption | AES128 |
| Position Report Interval | 5s × n (1 to 65536) |
| Heartbeat Report Interval | 30s × n (1 to 65536) |
| FOTA over Bluetooth | Supported |
| Bluetooth Payload Filtering | Supported |
| Maximum Beacons Supported | 105; maximum 15 beacon messages in one LoRaWAN packet @ SF9 |
| Certification | CE, FCC, RCM |
Product Features
- Indoor BLE-to-LoRaWAN Gateway: Receives Bluetooth beacon and sensor messages and forwards selected data to a LoRaWAN gateway for cloud or application use.
- Long-Range Bluetooth: Bluetooth 5.0 with up to 50m receiving range and adjustable TX power.
- Long-Range LoRaWAN: Communication distance greater than 1.5km in urban environments.
- Flexible Device Activation: Supports OTAA or ABP activation modes and multiple global LoRaWAN frequency plans including IN865.
- Configurable Reporting: Position report interval 5s × n and heartbeat report interval 30s × n, each configurable from 1 to 65536.
- Bluetooth Payload Filtering: Select and report required bytes from BLE payloads through LoRaWAN.
- Backup Power: 300mAh rechargeable Li-ion battery supports continuity during short power interruptions.
- Remote Maintenance: FOTA over Bluetooth is supported.
Package Includes
- 1 × 100-00PG1 LoRaWAN SocketSync Bluetooth Gateway
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 and LoRaWAN gateway for indoor beacon and BLE sensor data forwarding.
- Plug-and-play installation with 85–305VAC input and a 300mAh rechargeable Li-ion backup battery.
- Bluetooth receiving range up to 50m and LoRaWAN communication distance greater than 1.5km in urban environments.
- Geo-fence support for indoor tracking applications.
- Adjustable position reporting and heartbeat intervals.
- Configurable Bluetooth payload filtering and reporting through LoRaWAN.
- FOTA over Bluetooth and AES128 encryption.
- Supports up to 105 beacons; maximum 15 beacon messages in one LoRaWAN packet at SF9.
- CE, FCC and RCM certified.
