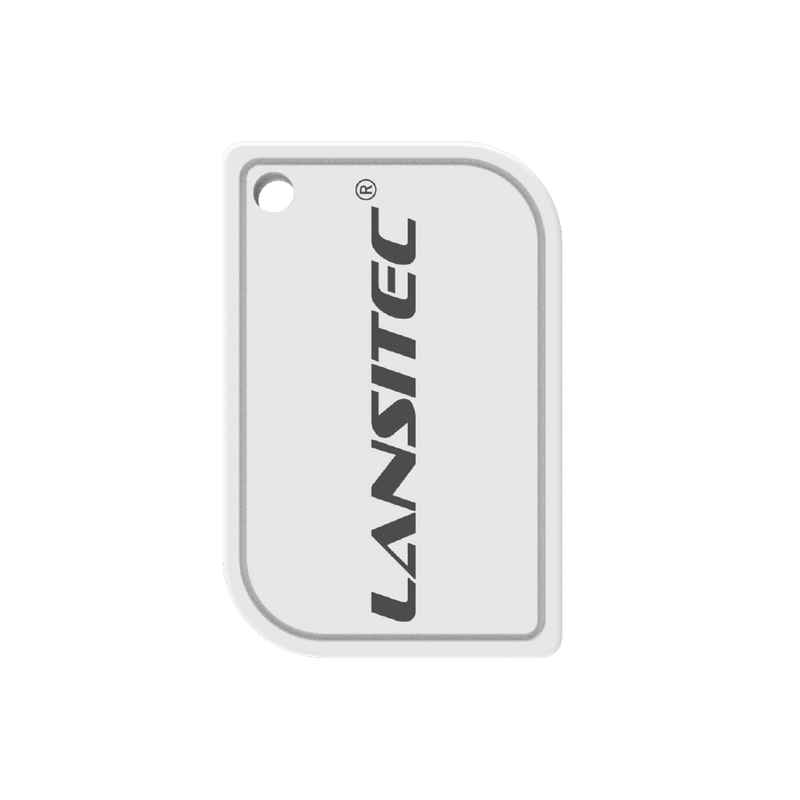

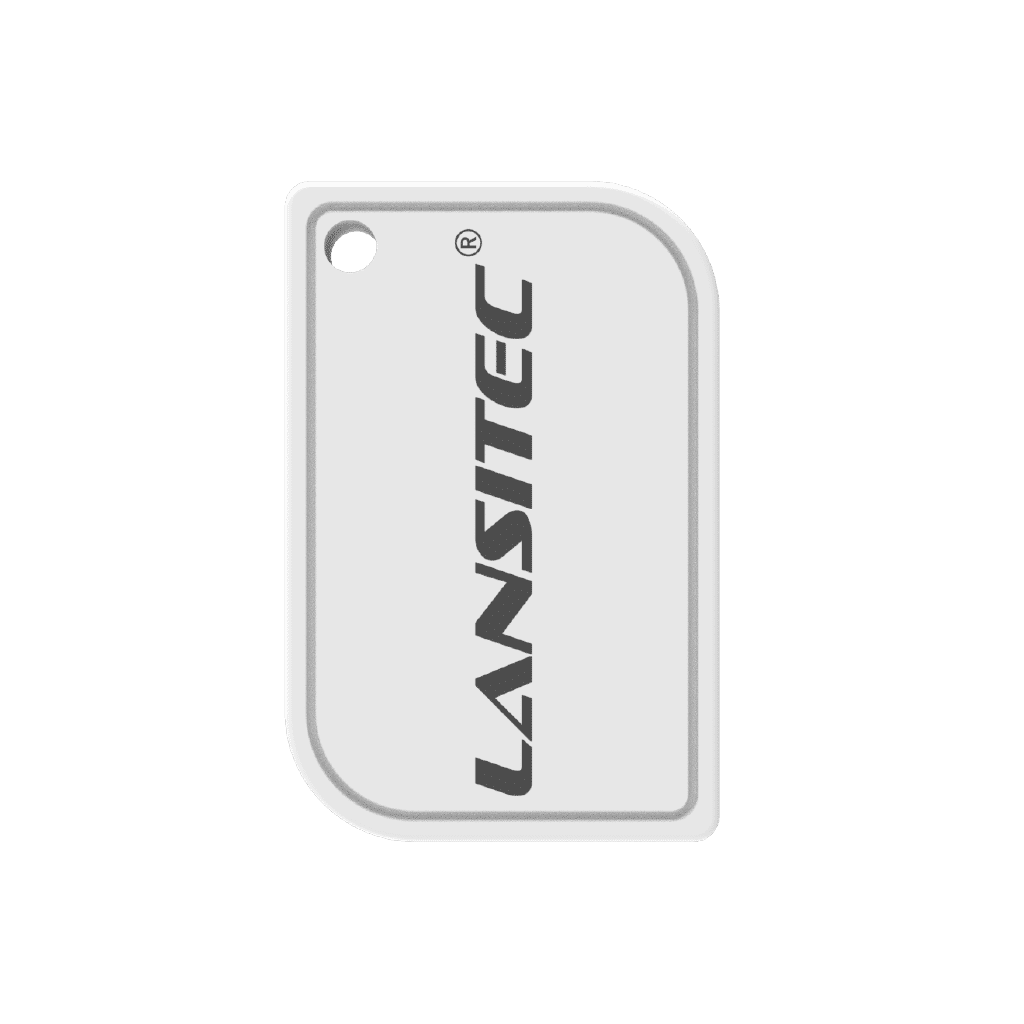

100-02198 - i3 Portable Bluetooth Tag
Out of stock
Product Description
The 100-02198 i3 Portable Bluetooth Tag is a 38 × 25 × 5mm Bluetooth 5.0/iBeacon device with motion-sensitive advertising via its integrated 3D accelerometer.
The 230mAh CR2032-powered tag supports up to six advertising frames, configurable transmit power and interval settings, and optional Angle of Arrival (AoA) positioning with suitable receiving infrastructure.
Applications
Asset Tracking
Indoor Asset Tracking
Equipment Tracking
Tool Tracking
Inventory Tracking
Medical Asset Tracking
Product Specifications
| Mechanics | |
|---|---|
| Dimensions | 38 × 25 × 5 mm |
| Weight | 6.2 g |
| Colour | White |
| Material | ABS |
| Hole Size | 3 mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +75°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Installation Method | Double-sided adhesive paste |
| Power | |
| Battery | CR2032 coin cell |
| Battery Capacity | 230 mAh |
| Battery Life | Up to 765 days on average at 0 dBm, 5 s advertising interval, without the 3D accelerometer |
| Standby Current | ≤5 μA |
| Peak Current | 8 mA |
| Average Current | 15 μA at 0 dBm, 5 s advertising interval, without the 3D accelerometer |
| Connectivity | |
| Beacon Protocol | iBeacon |
| RF Power | -20 to +4 dBm |
| Advertising Interval | 100 ms to 10 s |
| Transmission Distance | Up to 150 m line of sight |
| Bluetooth Protocol | Bluetooth 5.0 |
Product Features
- Compact Mounting: A lightweight 38 × 25 × 5mm form factor supports placement on small equipment and assets.
- Bluetooth Beacon Advertising: Continuously broadcasts compatible iBeacon messages and supports up to six advertising frames.
- Motion Sensing: Built-in 3D accelerometer supports movement-triggered advertising.
- Adjustable Wireless Settings: Supports 100ms–10s advertising intervals and configurable -20 to +4dBm transmit power.
- Coin-Cell Battery: CR2032 230mAh battery with up to 765 days of operation under the stated test configuration without accelerometer.
- Line-of-Sight Transmission: Manufacturer lists a range of up to 150m in open line-of-sight conditions.
- Optional AoA: Compatible Angle of Arrival receiving systems can enhance indoor positioning.
- Receiving System Needed: A compatible Bluetooth receiver or BLE gateway is required to collect and act on the beacon's advertisements.
Package Includes
- 1 × Lansitec 100-02198 i3 Portable Bluetooth Tag
Frequently Asked Questions
What is the Lansitec i3 Portable Bluetooth Tag used for?
What battery life does the i3 tag offer?
Does the i3 tag connect directly to LoRaWAN?
Does the i3 tag support motion detection and AoA?
What is included and what is the warranty?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Compact Bluetooth 5.0/iBeacon tag for assets and personnel.
- 38 × 25 × 5mm ABS enclosure weighing approximately 6.2g.
- Built-in 3D accelerometer for motion-based advertising.
- Up to six concurrent BLE advertising frames.
- Replaceable 230mAh CR2032 coin-cell battery.
- Up to 765 days battery life under stated 0dBm/5s test settings without accelerometer.
- Adjustable 100ms–10s advertising intervals and -20 to +4dBm RF power.
- Optional AoA positioning when used with compatible receivers.
