100-02388 - LoRaWAN Helmet Sensor
Out of stock
Product Description

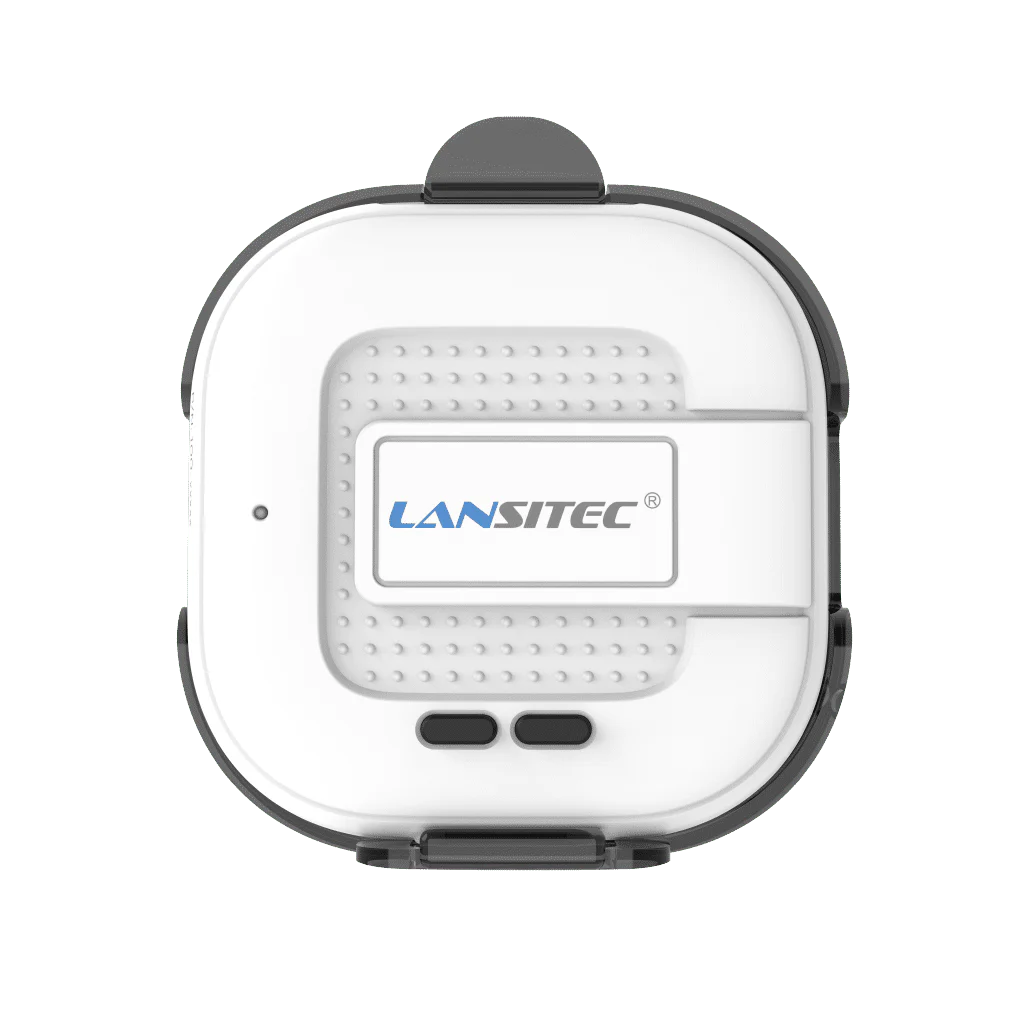

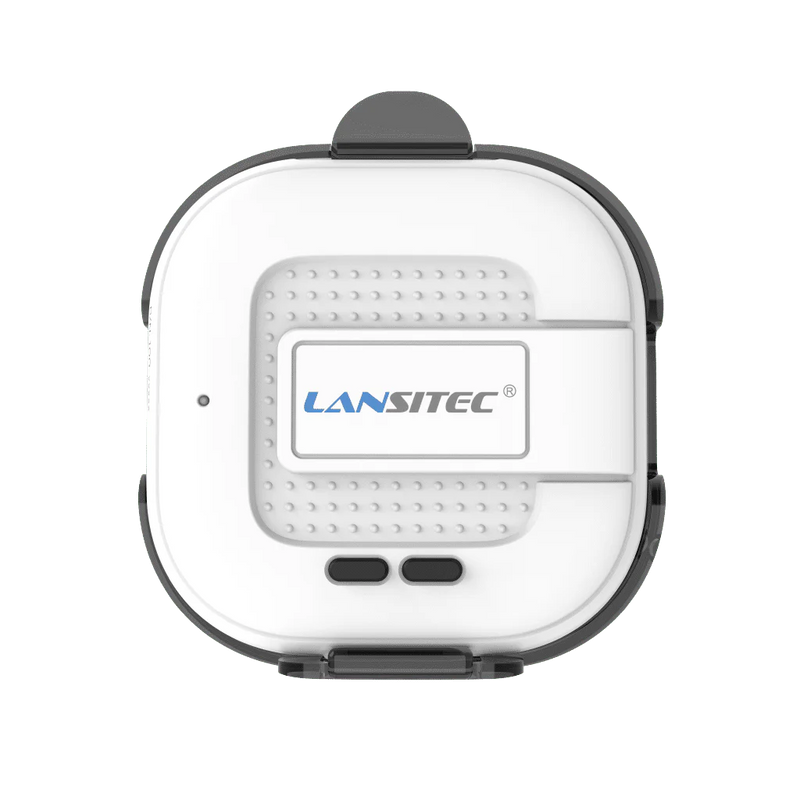

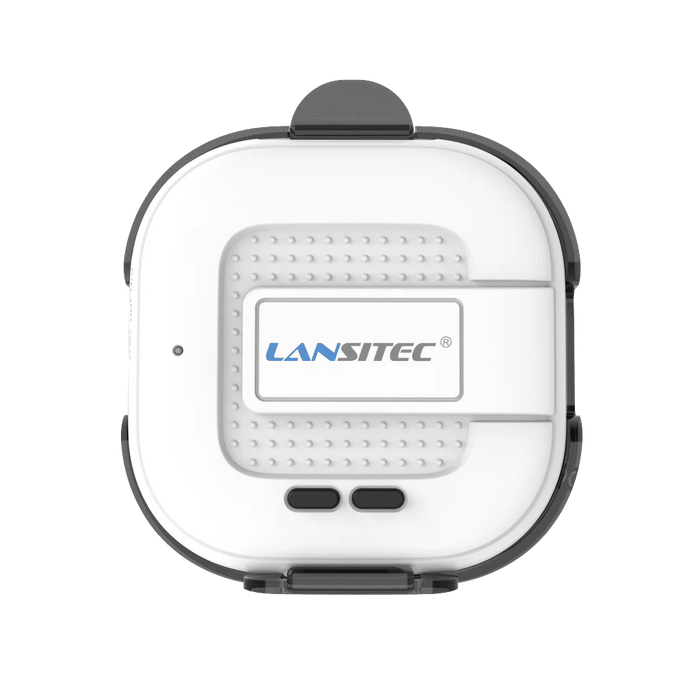

LoRaWAN Helmet Sensor
Enhance worker safety and operational efficiency with the Lansitec Helmet Sensor. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this sensor supports accurate indoor and outdoor positioning, making it ideal for construction sites, factories, distribution centers, or wide-open environments like ports and airports. From wear detection and fall alarms to zone-based alerts and step counting, the Helmet Sensor proactively monitors worker activities and conditions.
Its integrated 3-axis accelerometer helps conserve battery by adjusting tracking frequency based on motion, while the robust IP66 and IK10-rated enclosure stands up to harsh industrial settings. Whether you’re looking to streamline visitor management, protect lone workers, or optimize fleet oversight, the Lansitec Helmet Sensor delivers real-time data and reliable performance where it matters most.
Product Specifications
| Model / Part Number | 100-02388 |
|---|---|
| Product Type | LoRaWAN Helmet Sensor |
| Dimension | 80 × 80 × 35 mm |
| Operating Temperature | -10°C to +65°C |
| Charging Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Weight | 90 g |
| Housing Material | ABS and PC |
| Ingress Protection | IP66 |
| Impact Protection | IK10 |
| Battery | 1200mAh rechargeable Li-ion battery |
| GNSS Positioning Operations | Approx. 8,000 times at report interval greater than 10 minutes |
| Bluetooth Positioning Operations | Approx. 33,000 times |
| Standby Current | 25 μA |
| Maximum Current | 145 mA |
| Bluetooth Protocol | Bluetooth 5.0 / iBeacon |
| Bluetooth TX Power | -20 to +4 dBm, configurable in 4 dBm steps |
| Bluetooth Sensitivity | -96 dBm |
| Bluetooth Positioning Accuracy | 3 m |
| LoRaWAN Protocol | LoRaWAN 1.0.2B, Class A |
| Activation Mode | OTAA or ABP |
| LoRa Frequency | US915 / AU915 / EU868 / EU433 / AS923 / RU864 / KR920 / IN865 / CN470 |
| LoRa TX Power | 0–20 dBm |
| LoRa Sensitivity | -139 dBm @ SF12, BW125kHz, 434/470MHz; -137 dBm @ SF12, BW125kHz, 868/915MHz |
| LoRa Distance | >1 km in urban area |
| Encryption | AES128 |
| GNSS | BDS / GPS / GLONASS |
| GNSS Tracking Accuracy | 2.5 m |
| GNSS Cold Start | 30–120 s |
| 3D Accelerometer | Supported |
| Barometer | Supported, 10 cm altitude accuracy |
| PCB Coating | Waterproof coating |
| NFC Tag | Optional, 1 KB |
| Adjustable Position Report Interval | 5s × n (0–65535) |
| Heartbeat Report Interval | 30s × n (1–255) |
| Switch | 2 × touch buttons |
| FOTA over Bluetooth | Supported |
| Battery Level Report | Supported |
| Proximity Detection | Supported |
| Asset Management with Bluetooth | Reports nearby BLE beacons/tags through the LoRaWAN network |
Product Features
- Comprehensive Sensing & Alerts: Wear detection, fall detection, panic alarm, overstay alarm, and zone-based alerts for enhanced worker safety.
- Simple Integration & Deployment: NFC for quick device identification, magnetic charging port, and optional FOTA over Bluetooth streamline setup and updates.
- Accurate Indoor/Outdoor Tracking: Utilize Bluetooth for up to 3m accuracy indoors and GNSS with 2.5m precision outdoors.
- Flexible Connectivity: LoRaWAN connectivity provides low-cost, long-range coverage, reducing the need for expensive cellular plans.
- Robust Design: IP66-rated and IK10 impact protection keeps the device functioning in harsh environmental and industrial conditions.
- Asset Management Compatibility: Pair the sensor with BLE tags or beacons to gather location data from additional equipment or tools in the field.
- Efficient Battery Use: Built-in 3-axis accelerometer and barometer help manage power consumption by detecting motion and altitude changes.
Package Includes
- 1 × 100-02388 LoRaWAN Helmet Sensor
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- GNSS, Bluetooth 5.0 and LoRaWAN for accurate indoor and outdoor personnel positioning.
- Wear detection, fall detection, panic alarm, overstay alarm and zone-based safety alerts.
- Bluetooth positioning accuracy up to 3m indoors and GNSS accuracy of 2.5m outdoors.
- IP66 ingress protection and IK10 impact protection for demanding industrial environments.
- Built-in 1200mAh rechargeable Li-ion battery.
- 3-axis accelerometer and barometer for motion and altitude monitoring.
- LoRaWAN 1.0.2B Class A with OTAA or ABP activation.
- NFC support, proximity detection, battery reporting and FOTA over Bluetooth.
