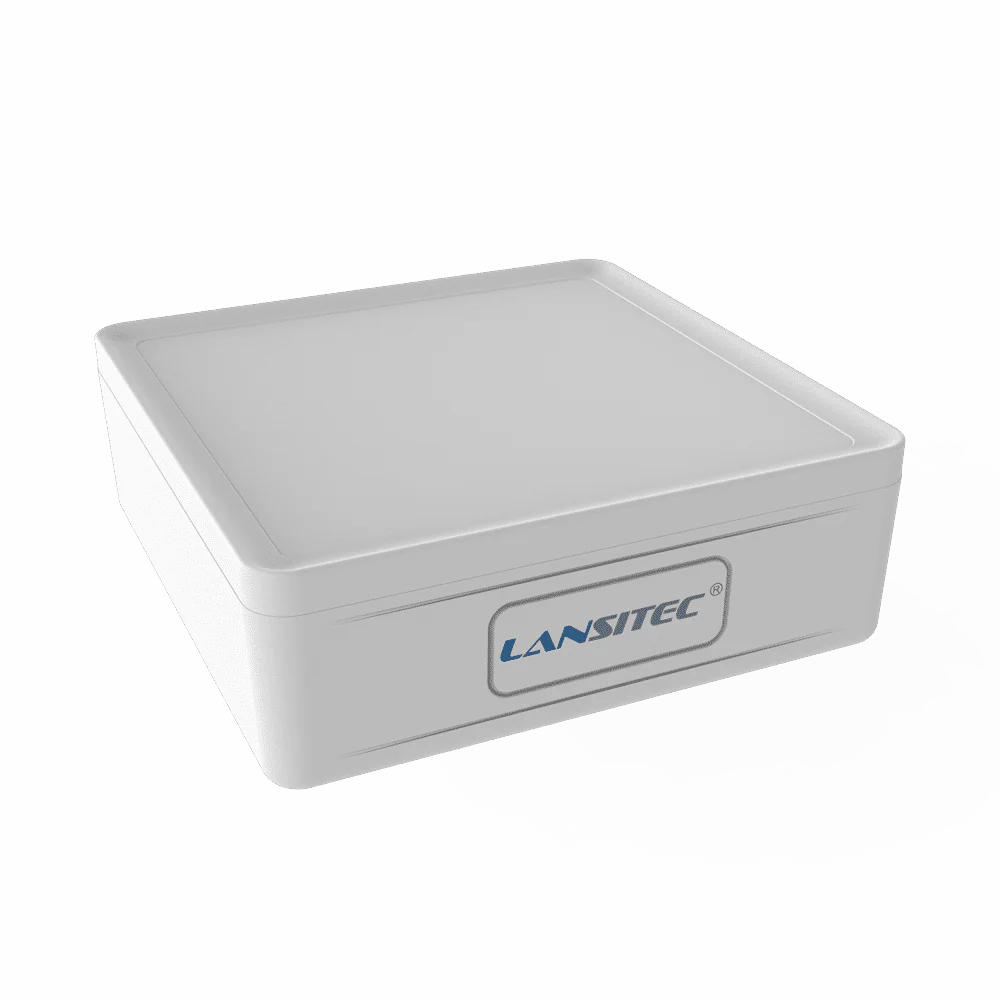

100-02538 - LoRaWAN Macro Tracker
Low Stock, 1 left
Product Description
LoRaWAN Macro Tracker for Long-Term Indoor & Outdoor Asset Monitoring
100-02538 - LoRaWAN Macro Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. LoRaWAN Protocol support is listed as LoRaWAN 1.0.2B. Power is provided through the stated Li-SOCl2, 2 × 19000mAh (38,000mAh total); optional 4 × 19000mAh arrangement. The Bluetooth TX Power specification is -20 to +4 dBm, configurable in 4 dBm steps. When choosing this lorawan macro tracker, start with the documented configuration.
Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. The LoRa TX Power specification is 0 to 20 dBm. The High TX Power Option specification is Max. 30 dBm and -150 dBm receiving sensitivity. The Bluetooth Receiving Range specification is 50 m. The LoRa Frequency specification is US915 / AU915 / EU868 / AS923 / LA915 / RU864 / KR920 / IN865 / KZ865 / CN470. The LoRaWAN Gateway Capacity specification is >500 devices per gateway.
Applications
Product Specifications
| Model / Part Number | 100-02538 |
|---|---|
| Product Type | LoRaWAN Macro Tracker |
| Dimensions | 160 × 160 × 55 mm |
| Weight | 530 g |
| Operating Temperature | -45°C to +85°C |
| Storage Temperature | -60°C to +90°C |
| Operating Humidity | 0%–95% RH, non-condensing |
| Ingress Protection | IP66 |
| Battery | Li-SOCl2, 2 × 19000mAh (38,000mAh total); optional 4 × 19000mAh |
| Standby Current | 25μA |
| Switch | Supported |
| Status LED | Supported |
| Bluetooth | Bluetooth 5.0 |
| Bluetooth TX Power | -20 to +4 dBm, configurable in 4 dBm steps |
| Bluetooth Sensitivity | -96 dBm |
| Bluetooth Receiving Range | 50 m |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| Activation Mode | OTAA or ABP |
| LoRa Frequency | US915 / AU915 / EU868 / AS923 / LA915 / RU864 / KR920 / IN865 / KZ865 / CN470 |
| LoRa TX Power | 0 to 20 dBm |
| High TX Power Option | Max. 30 dBm and -150 dBm receiving sensitivity |
| LoRa Sensitivity | -139 dBm @ SF12, BW125kHz, 434/470MHz; -137 dBm @ SF12, BW125kHz, 868/915MHz |
| LoRaWAN Gateway Capacity | >500 devices per gateway |
| LoRa Communication Distance | >2 km in urban area |
| Encryption | AES128 |
| GNSS | BDS / GPS / GLONASS |
| GNSS Accuracy | <2.5 m CEP50 |
| GNSS Cold Start | 30–120 s |
| Position Report Interval | 5s × n (1–65536) |
| Heartbeat Report Interval | 30s × n (1–255) |
| GNSS Position Report Interval | 5s × n (1–65536) |
| Adjustable Bluetooth Payload Reporting | Supported |
| FOTA over Bluetooth | Supported |
| Optional Temperature Report | Available on request |
| Temperature Sensor Range | -40°C to +85°C |
| Temperature Accuracy | ±5°C chamber temperature in beacon |
| Temperature Resolution | 0.25°C |
| Certification | CE, FCC |
Product Features
- Battery Operation:Provided by A 38,000mAh industrial Li-SOCl2 battery: up to 7 years of standby time, reducing maintenance visits and downtime.
- LoRaWAN Connectivity:Used by Secure long-range communication exceeds 2km in urban areas and: AES128 encryption without recurring cellular data fees.
- Accurate Indoor & Outdoor Tracking:Delivered by GNSS: less than 2.5m CEP50 accuracy outdoors while Bluetooth 5.0 supports close-range indoor monitoring.
- Configurable Data & Reporting:Set position reporting, heartbeat periods and Bluetooth payload reporting to match operational requirements.
- IP66-Rated Durability:This version has designed for dust, water and wide-temperature operation from -45°C to +85°C.
- Simple Deployment:Built-in status LED, optional temperature reporting and FOTA over Bluetooth simplify installation and lifecycle management.
Package Includes
- 1 × 100-02538 LoRaWAN Macro Tracker
