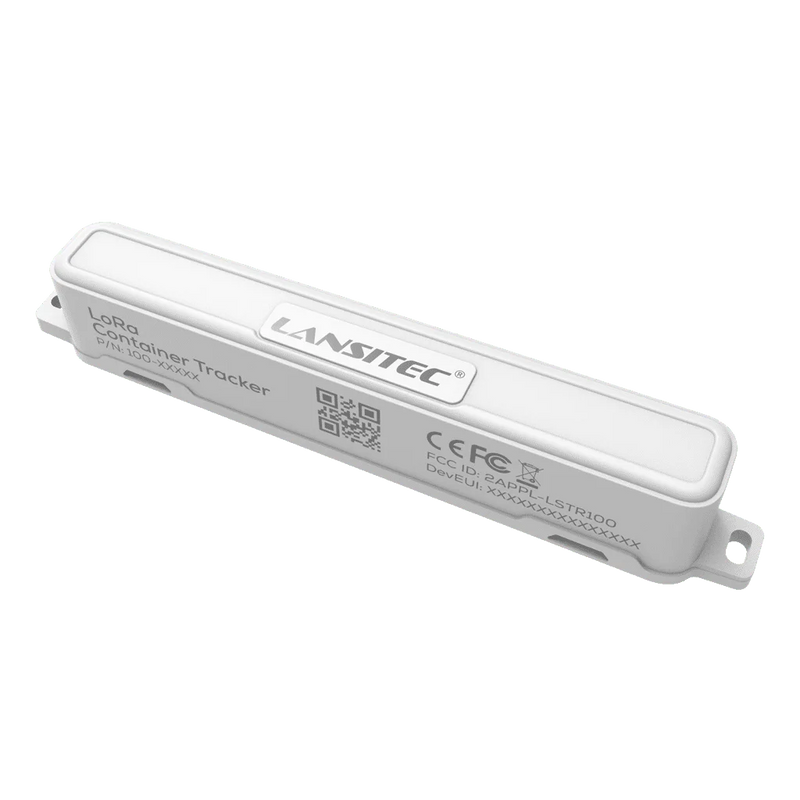

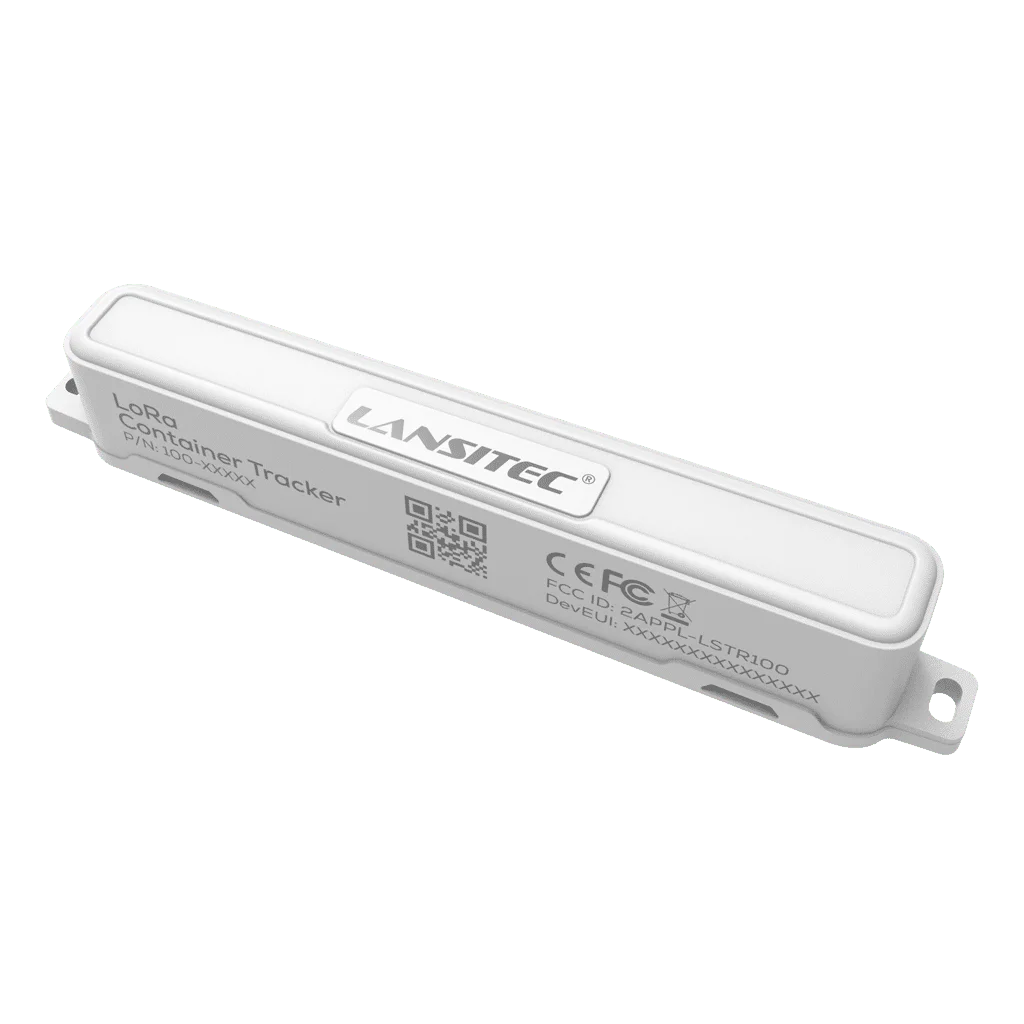

100-02702 - LoRaWAN Container Tracker
Low Stock, 1 left
Product Description
LoRaWAN Container Tracker
100-02702 - LoRaWAN Container Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. Power is provided through the stated Li/SOCl2 4000mAh × 2 arrangement. The Bluetooth TX Power specification is -20 to +4dBm, configurable in 4dB steps. The LoRa TX Power specification is 0–20dBm. When choosing this lorawan container tracker, start with the documented configuration.
Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. The Power Switch specification is Magnetic reed switch; magnetic enable/disable supported. The LoRa Frequency specification is US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470. The Optional Temperature Range specification is -40°C to +85°C. The Optional Temperature Resolution specification is 0.25°C. The dimensions figure is 198 × 28 × 33 mm.
Product Specifications
| Model / Part Number | 100-02702 |
|---|---|
| Product Type | LoRaWAN Container Tracker |
| Dimensions | 198 × 28 × 33 mm |
| Housing Material | PC and ABS |
| Weight | 133 g |
| Ingress Protection | IP68 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -10°C to +30°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Battery | Li/SOCl2 4000mAh × 2 |
| Standby Current | 15μA |
| Maximum Current | 145mA |
| GNSS Reports | Approx. 30,000 reports when interval is greater than 10 minutes |
| Bluetooth Positioning Reports | Approx. 500,000 reports |
| Bluetooth | Bluetooth 5.0, iBeacon |
| Bluetooth TX Power | -20 to +4dBm, configurable in 4dB steps |
| Bluetooth Sensitivity | -96dBm |
| LoRaWAN | LoRaWAN 1.0.2B, Class A |
| Activation Mode | OTAA / ABP |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa TX Power | 0–20dBm |
| LoRa Sensitivity | -137dBm @ SF12, BW125kHz, 868/915MHz |
| LoRa Communication Distance | Greater than 1km in urban area |
| Encryption | AES128 |
| GNSS Accuracy | Less than 2.5m CEP |
| GNSS Cold Start | 30–60 seconds |
| Position Report Interval | 5s × n (1–65536) |
| Heartbeat Report Interval | 30s × n (1–65536) |
| Power Switch | Magnetic reed switch; magnetic enable/disable supported |
| Tamper Detection | Supported |
| Door Open/Close Sensing | Supported |
| Vibration / Shock Detection | Supported |
| Movement Duration | Supported |
| Nearby Bluetooth Tags | Supported |
| Offline Position Cache | 40 positions |
| FOTA over Bluetooth | Supported |
| 3D Accelerometer | Built-in |
| NFC | 1KB |
| Optional Temperature Range | -40°C to +85°C |
| Optional Temperature Accuracy | ±5°C chamber temperature |
| Optional Temperature Resolution | 0.25°C |
Product Features
- Indoor & Outdoor Positioning:Supported by Multi-GNSS positioning: GPS, BDS, GALILEO, GLONASS, QZSS and SBAS, while Bluetooth 5.0/iBeacon enables indoor positioning.
- LoRaWAN Connectivity:LoRaWAN 1.0.2B Class A with OTAA or ABP activation and global frequency plans including IN865.
- Long Battery Operation:Dual 4000mAh Li/SOCl2 batteries support approximately 30,000 GNSS reports at intervals above 10 minutes and approximately 500,000 Bluetooth positioning reports.
- Asset Security:Tamper detection, door open/close sensing, vibration/shock detection and movement-duration monitoring help protect mobile assets.
- Offline Position Cache:Stores up to 40 position records when the network is unavailable and reports them after connectivity resumes.
- Remote Maintenance:FOTA over Bluetooth is supported for firmware upgrades.
- Secondary Asset Monitoring:Reports nearby Bluetooth tags for container contents, tools and associated assets.
- Optional Temperature Monitoring:Temperature reporting can be enabled when specified at ordering.
Package Includes
- 1 × 100-02702 LoRaWAN Container Tracker
Frequently Asked Questions
What is the 100-02702 - LoRaWAN Container Tracker used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
