100-03983 - B006 Badge Bluetooth Beacon
Low Stock, 1 left
Product Description

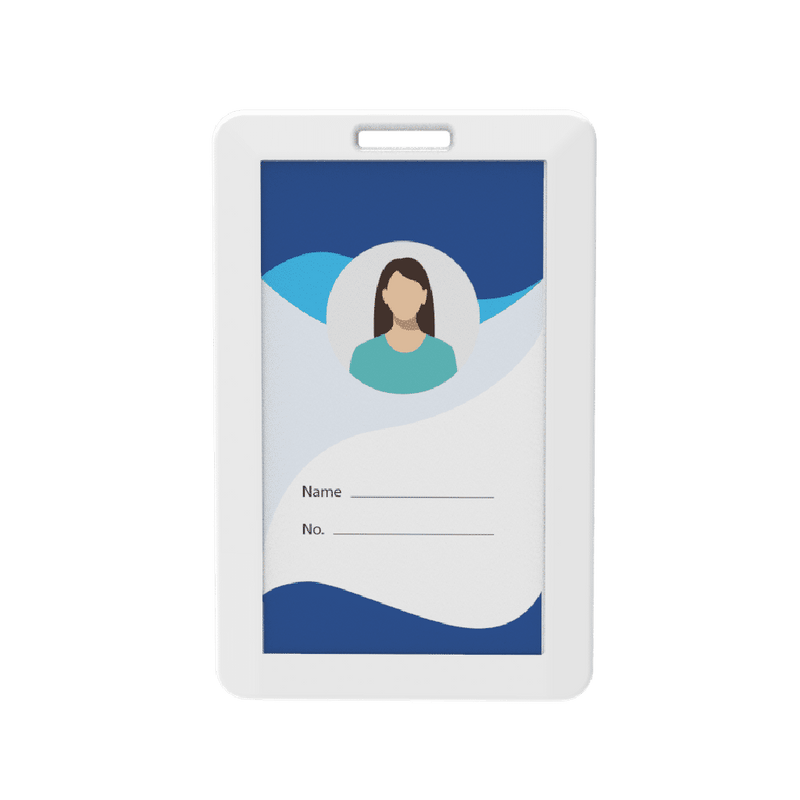

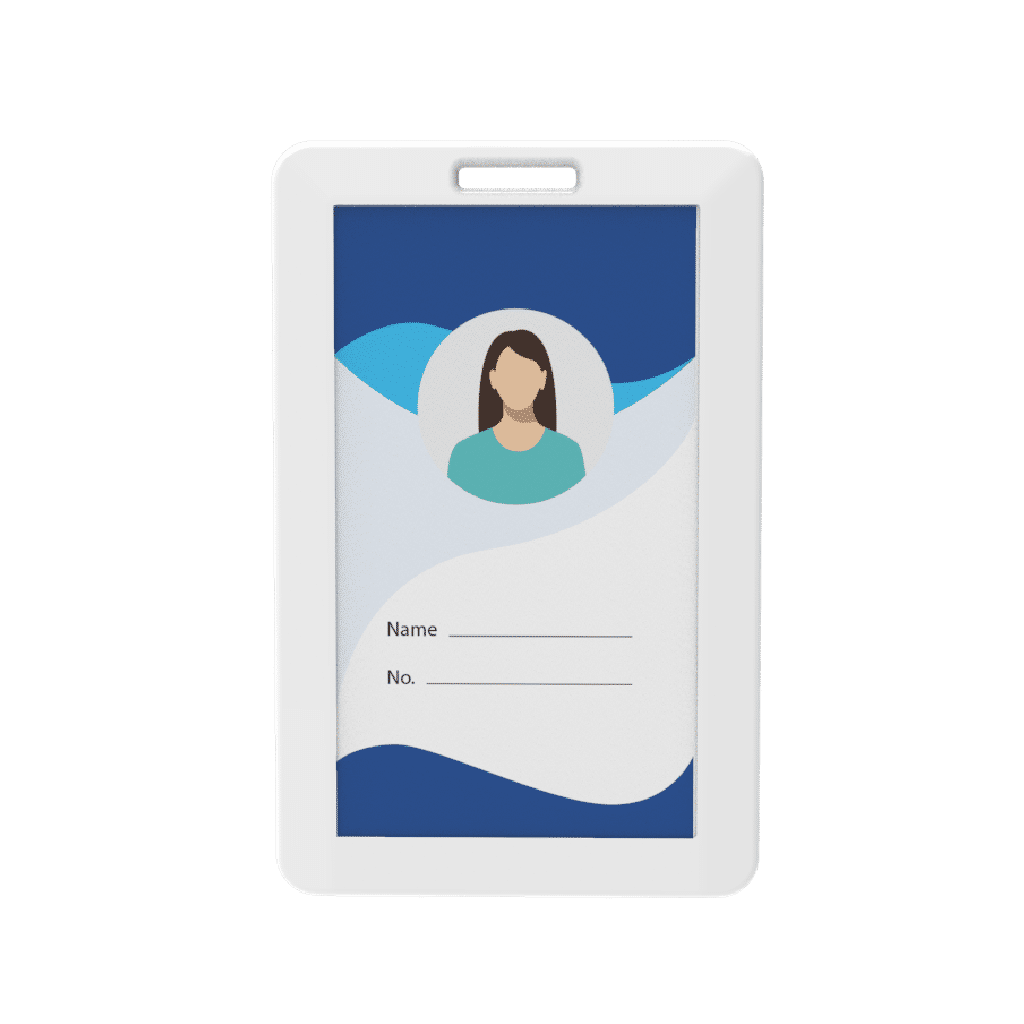

B006 Badge Bluetooth Beacon
The Lansitec B006 Badge Bluetooth Beacon (Part No. 100-03983) is a slim Bluetooth 5.0 iBeacon transmitter for people and asset identification. The badge-style 97 × 62 × 7 mm enclosure suits staff passes, hospital equipment, warehouse operations, visitor management and facility access workflows, when integrated with suitable Bluetooth receiving infrastructure.
The rechargeable 600 mAh Li-ion version combines adjustable radio transmission power (-20 to +4 dBm), 100 ms to 5 second broadcast intervals and up to 150 m line-of-sight Bluetooth range. Lansitec estimates up to one year of battery life at 0 dBm and a 1-second advertising interval. Optional AoA-compatible positioning, temperature reporting and buzzer functions depend on the ordered configuration.
Applications
Hospital Asset Tracking
Warehouse Asset Tracking
Smart Factory
Vehicle & Key Tracking
Facility Access & Visitors
Event Badge Tracking
Product Specifications
| Brand / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-03983 |
| Model | B006 Badge Bluetooth Beacon |
| TwoElectrons SKU | 2ESE2201 |
| Category | RTLS / Asset Tracking |
| Form Factor | Wearable / badge-style Bluetooth beacon |
| Bluetooth Technology | Bluetooth 5.0 |
| Beacon Protocol | iBeacon |
| RF Power | -20 to +4 dBm, 4 dBm increments |
| Receiver Sensitivity | -97 dBm |
| Broadcasting / Advertising Interval | 100 ms to 5 seconds, configurable |
| Bluetooth Coverage | Up to 150 m line of sight |
| Battery in 100-03983 Variant | Rechargeable 600 mAh Li-ion |
| Alternative Battery Option | 440 mAh, 2 × CR2032 non-rechargeable (separate version) |
| Battery Life (OEM Reference) | Up to 1 year at 0 dBm TX and 1 s advertising |
| Dimensions | 97 × 62 × 7 mm |
| Colour | White |
| Housing Material | ABS |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -20°C to +80°C |
| Relative Humidity | 5%–95%, non-condensing |
| Optional AoA Support | Available on supported configuration with compatible AoA anchors |
| Optional Temperature Measurement | -40°C to +85°C internal sensing range |
| Optional Temperature Accuracy | ±5°C for internal chamber temperature |
| Optional Temperature Resolution | 0.25°C |
| Optional Buzzer | Available, subject to ordered configuration |
| Ingress Protection Rating | Not specified on cited OEM product specifications |
| Regulatory Certificates | OEM B006 user manual references FCC and CE; exact 100-03983 certificate to be verified |
| Remote Configuration | Configurable over Bluetooth using compatible configuration tools; not standalone cloud remote access |
| Warranty | 6 months - TwoElectrons seller warranty terms apply |
Product Features
- Badge-Based Tracking: Thin 97 × 62 × 7 mm device can serve as an identification badge or be attached to movable equipment.
- Rechargeable Power: Part number 100-03983 is the 600 mAh rechargeable battery variant; a separate 2 × CR2032 disposable-battery version also exists.
- Long Runtime: Lansitec states up to one year of battery operation at 0 dBm and a 1-second advertising interval; service life depends on reporting settings and conditions.
- Adjustable Radio: BLE transmit power is adjustable from -20 to +4 dBm, in 4 dBm increments, and advertising intervals from 100 ms to 5 seconds.
- Up to 150 m Coverage: Open line-of-sight Bluetooth transmission can reach 150 m with compatible receiver equipment; indoor range is site dependent.
- Optional Positioning and Alerts: AoA upgrade, buzzer and temperature reporting depend on ordered configuration and compatible RTLS infrastructure.
- Flexible Integration: Compatible receiving systems can relay iBeacon identifiers to dashboards used for visitor, employee or asset visibility.
Package Includes
- 1 × Lansitec B006 Badge Bluetooth Beacon, Part No. 100-03983 (600 mAh rechargeable configuration)
Charging accessories, fasteners and optional features are not confirmed as standard package contents; please verify the supplier packing list.
Frequently Asked Questions
What is the B006 Badge Bluetooth Beacon used for?
Is part number 100-03983 rechargeable?
What is the Bluetooth coverage range and battery life?
Does the B006 connect directly to GPS or LoRaWAN?
Can the B006 be configured, and are buzzer or temperature features included?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 iBeacon for badge-style people and asset identification
- Compact 97 × 62 × 7 mm white ABS badge enclosure
- 100-03983 rechargeable version with 600 mAh Li-ion battery
- Up to 1 year estimated battery life at 0 dBm and 1-second broadcast interval
- Bluetooth range up to 150 m under favourable line-of-sight conditions
- Configurable -20 to +4 dBm transmission power and 100 ms to 5 s advertising
- Optional Angle of Arrival (AoA), buzzer and temperature sensing
- Works with compatible BLE receivers, gateways and RTLS software
