100-0B011 - B011 Helmet Beacon
Low Stock, 5 left
Product Description

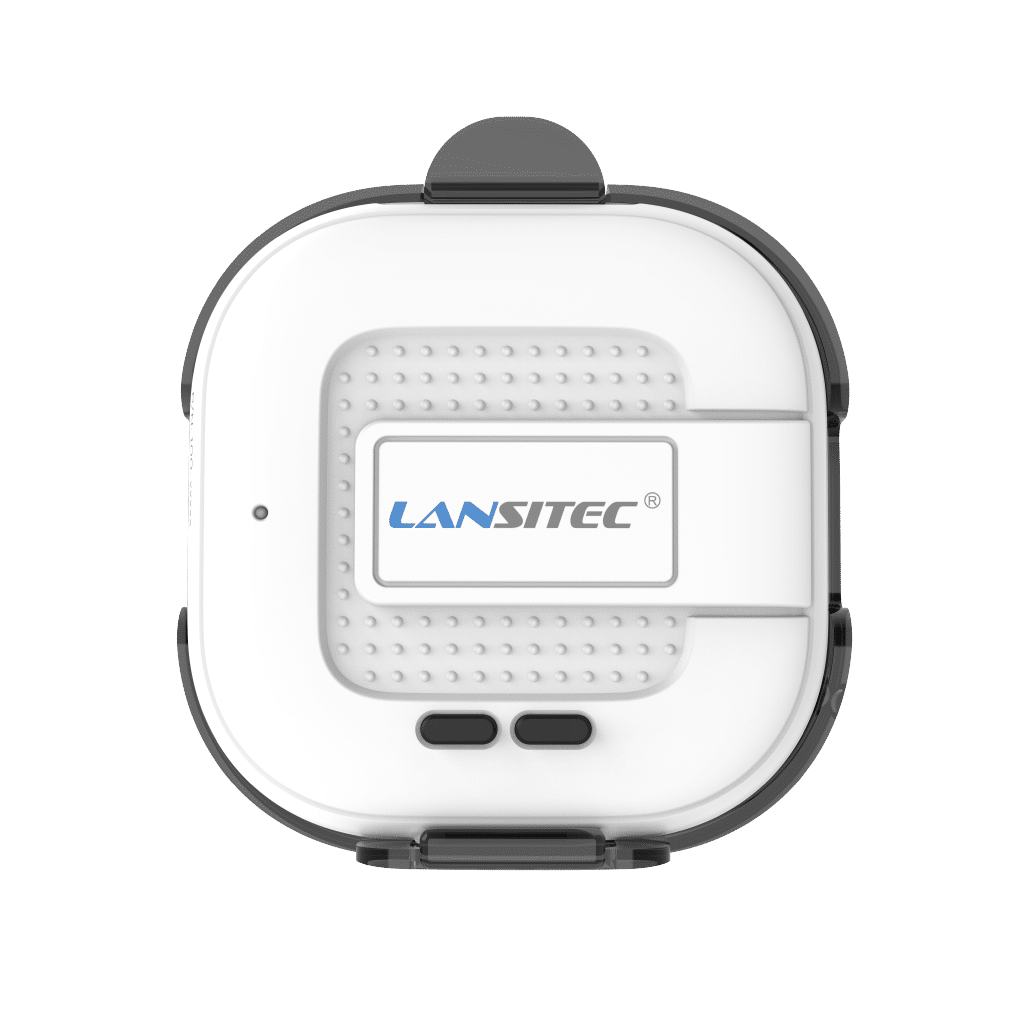

B011 Helmet Beacon
The Lansitec B011 Helmet Beacon (100-0B011) is a rugged Bluetooth 5.1 iBeacon designed for helmet-mounted personnel tracking in construction sites, factories, warehouses, healthcare facilities and industrial environments. Its IP66-rated ABS/PC enclosure and up to 150 m line-of-sight Bluetooth coverage support reliable broadcasts to compatible RTLS gateways and positioning systems.
A rechargeable 1,200 mAh Li-ion battery provides up to one year of operation under Lansitec's specified test conditions (0 dBm transmit power and 0.5-second advertising interval). Configurable transmission settings, optional Bluetooth Angle of Arrival (AoA), temperature monitoring and buzzer capabilities make it suitable for worker visibility and asset-location projects. Optional functions require the relevant ordered configuration and compatible infrastructure.
Applications
Construction Worker Tracking
Factory Personnel Tracking
Warehouse Workforce Tracking
Industrial People Tracking
Smart Building Personnel Tracking
Healthcare Asset Tracking
Product Specifications
| OEM Part Number | 100-0B011 |
|---|---|
| Model | B011 Helmet Beacon |
| TwoElectrons SKU | 2ESE2199 |
| Product Type | Bluetooth personnel tracking beacon |
| Bluetooth Version | 5.1 |
| RF Frequency | 2.4 GHz |
| Beacon Protocol | iBeacon; AoA optional |
| RF Transmit Power | -20 dBm to +4 dBm, 4 dBm increments |
| Sensitivity | -96 dBm |
| Advertising Interval | 100 ms to 10 s |
| Range | Up to 150 m line-of-sight |
| Battery | 1200 mAh rechargeable Li-ion |
| Battery Life | Up to 1 year at 0 dBm and 0.5 s interval (OEM reference) |
| Dimensions | 80 × 80 × 35 mm |
| Weight | 90 g |
| Material | ABS and PC |
| Colour | White |
| Ingress Protection | IP66 |
| Operating Temperature | -10°C to +65°C (standard) |
| Storage Temperature | -25°C to +75°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Temperature Sensing | Optional: -40°C to +85°C; ±5°C accuracy; 0.25°C resolution |
| Buzzer | Optional |
| Certifications Listed by OEM | CE, FCC |
Product Features
- Helmet-Based Personnel Tracking: Broadcasts Bluetooth identification packets to compatible receivers for industrial RTLS applications.
- Reliable Bluetooth Coverage: Up to 150 m sight-distance range under favourable conditions; actual deployment range varies with the environment.
- Industrial Protection: White ABS/PC housing with IP66 dust and water resistance, measuring 80 × 80 × 35 mm.
- Rechargeable Power: Integrated 1,200 mAh Li-ion battery with an OEM estimate of up to one year at 0 dBm and 0.5 s transmission intervals.
- Flexible Beacon Settings: Supports configurable -20 to +4 dBm output and 100 ms to 10 s advertising intervals.
- Optional AoA Positioning: Can be used with supported AoA receivers where the relevant configuration is ordered.
- Optional Extra Functions: Temperature reporting and buzzer availability are configuration-dependent; confirm with Lansitec before ordering.
Package Includes
- 1 × Lansitec 100-0B011 B011 Helmet Beacon
Frequently Asked Questions
What is the Lansitec B011 Helmet Beacon used for?
Does the B011 Helmet Beacon have GPS or LoRaWAN connectivity?
What is the Bluetooth range of the B011 Helmet Beacon?
How long does the B011 Helmet Beacon battery last, and can it be recharged?
Is the B011 Helmet Beacon waterproof, and does it support AoA positioning?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.1 iBeacon for helmet-mounted people and asset tracking.
- Up to 150 m Bluetooth coverage in clear line-of-sight conditions.
- IP66 enclosure for demanding indoor and outdoor industrial environments.
- 1,200 mAh rechargeable Li-ion battery; up to one-year OEM reference endurance.
- Configurable -20 to +4 dBm RF output and 100 ms to 10 s advertising intervals.
- Optional Bluetooth Angle of Arrival (AoA) support for compatible positioning systems.
- Optional temperature monitoring (-40°C to +85°C sensing range).
- Optional buzzer for audible indications and alerts.
SKU: 2ESE2199
