100-0B014 - B014 Flex Tag
Out of stock
Product Description
B014 Flex Tag

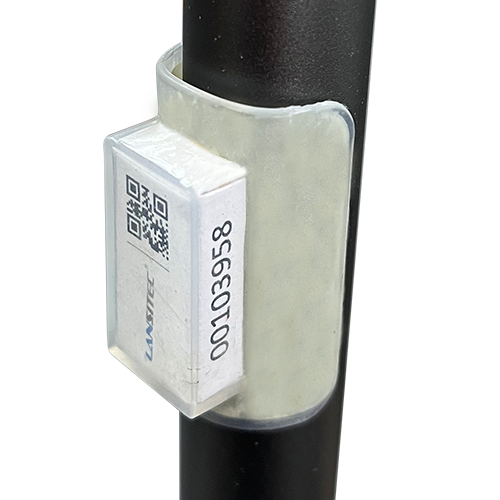

The Lansitec 100-0B014 B014 Flex Tag is a flexible Bluetooth 5.0 iBeacon designed to track assets on curved, uneven and cylindrical surfaces. Its soft silicone-gel construction fits tools, medical supplies, crates, equipment and other objects that are difficult to label with a rigid beacon.
It continuously broadcasts iBeacon messages and supports up to six simultaneous advertising frames. Adjustable transmission power and advertising intervals from 100 ms to 10 seconds allow deployment settings to balance wireless coverage and battery consumption. The BLE beacon has a stated line-of-sight transmission distance of up to 150 m.
Two non-replaceable 50 mAh CR1225 batteries are specified to provide up to five years of service at 0 dBm and a 10-second advertising interval, subject to operating conditions. Its IP65 enclosure, magnetic button, status LED, battery-level reporting and Bluetooth FOTA support enable practical asset-monitoring applications.
Product Specifications
| Mechanics | |
|---|---|
| Dimensions (OEM technical table) | 90 × 60 × 1.5 mm; thickness 1.5–2.5 mm. OEM overview separately states 40 × 25 × 18.6 mm; confirm variant dimensions with Lansitec. |
| Weight | 6.3 g |
| Housing Material | Silicone gel |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP65 |
| Power | |
| Battery | 2 × CR1225 (50 mAh each), non-replaceable |
| Battery Life | Up to 5 years at 0 dBm with a 10-second advertising interval (OEM technical specification) |
| Maximum Current | 8 mA |
| Standby Current | 16 μA (shown as standby time on OEM page) |
| Bluetooth | |
| Beacon Protocol | iBeacon; supports up to 6 advertising frames |
| RF / TX Power | Configurable from -20 dBm to +4 dBm per OEM feature description (technical table states +5 dBm) |
| Advertising Interval | 100 ms to 10 seconds |
| Transmission Distance | Up to 150 m, line of sight |
| Bluetooth Version | Bluetooth 5.0 |
| Antenna | PCB antenna |
| Functions | |
| Magnetic Button | Supported |
| Status LED | Supported |
| FOTA over Bluetooth | Supported |
| Battery Level Reporting | Supported |
| Certification | CE: To be obtained (not confirmed certified) |
Product Features
- Attach Everywhere: Soft silicone-gel design allows the tag to follow curved, irregular, cylindrical and non-flat equipment surfaces.
- Multi-Frame Advertising: Supports up to six Bluetooth beacon advertising frames, including iBeacon data for RTLS monitoring.
- Flexible Triggers: Configurable 100 ms–10 s advertising intervals and adjustable TX power help balance coverage and battery life.
- Extended Battery Life: Two built-in, non-replaceable CR1225 50 mAh cells are specified to provide up to five years of operation at 0 dBm and a 10-second advertising interval.
- Durable Tag: IP65-rated silicone-gel housing weighing approximately 6.3 g; operating temperature -20°C to +60°C.
- Remote Maintenance: Supports Bluetooth FOTA, magnetic button operation, status LED and battery-level reporting.
Package Includes
- 1 × Lansitec 100-0B014 B014 Flex Tag (built-in non-replaceable batteries)
