100-0NBM4 - NB-IoT & LTE-M Asset Management Tracker
Low Stock, 1 left
Product Description

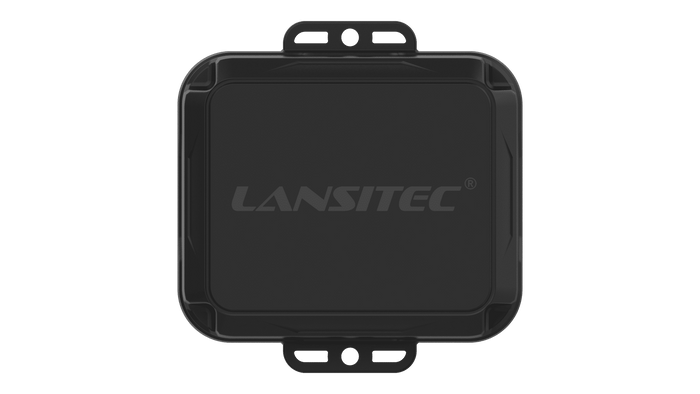

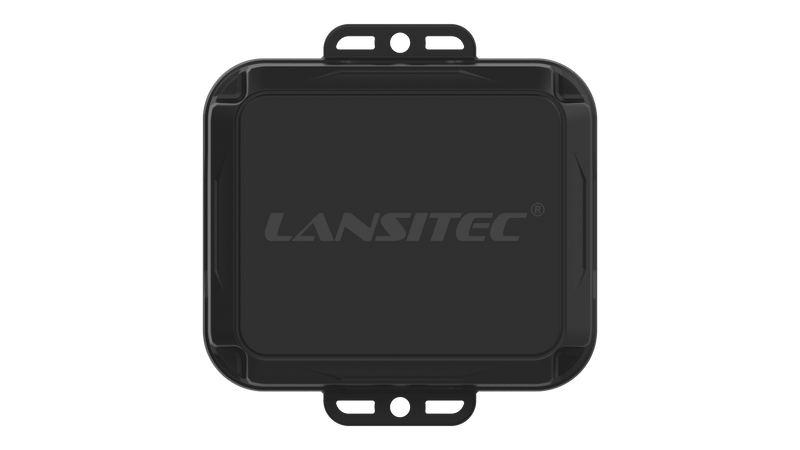

NB-IoT & LTE-M Asset Management Tracker
The Lansitec 100-0NBM4 NB-IoT & LTE-M Asset Management Tracker combines multi-constellation GNSS positioning, Bluetooth 5.0 proximity scanning and low-power NB-IoT/LTE-M cellular connectivity to track industrial equipment, containers and valuable assets. The tracker collects outdoor GNSS location and nearby Bluetooth tag data, while its 6-axis motion sensing, barometric pressure sensing, proximity detection and door/seal monitoring help identify movement, impacts and possible tampering. Configurable Bluetooth payload filtering and compression reduce the data sent to compatible MQTT or HTTP servers.

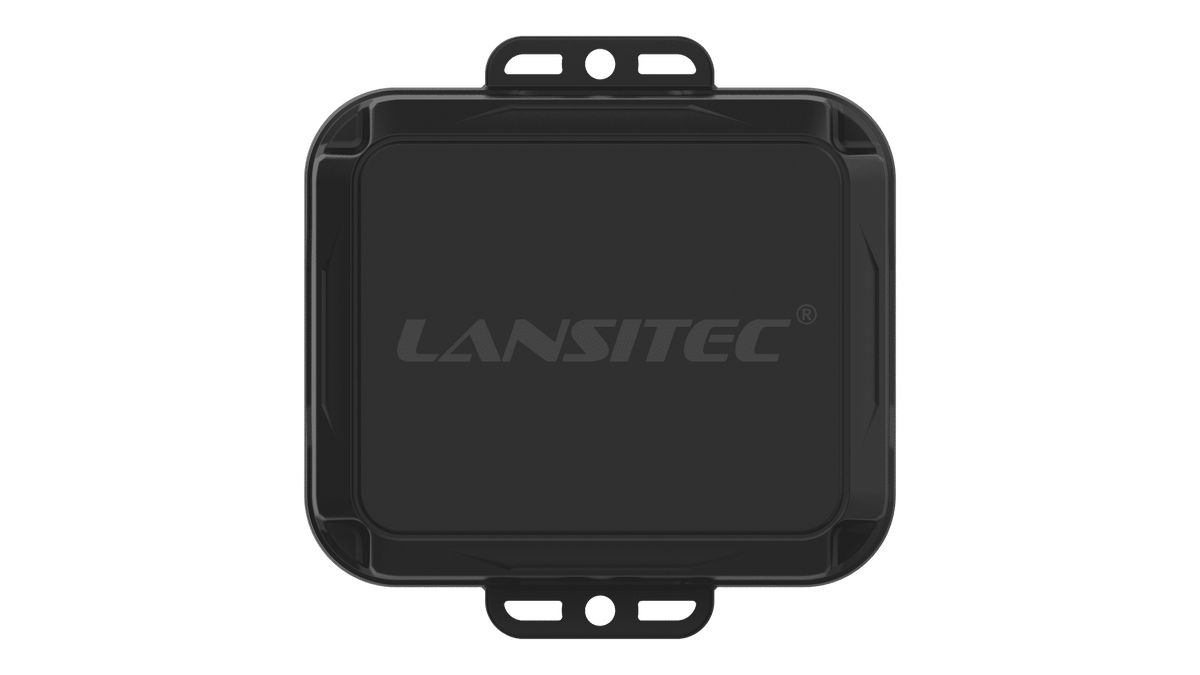

The IP68-rated PC/ABS enclosure measures 78 × 79 × 35 mm including mounting lugs and weighs approximately 133 g. Two non-rechargeable 4,000 mAh lithium-thionyl-chloride batteries provide 8,000 mAh nominal total capacity, with OEM reference estimates of approximately 30,000 GNSS location reports or 500,000 Bluetooth positioning reports under their respective conditions. GNSS precision is rated below 2.5 m CEP and indoor BLE positioning approximately 3 m with suitable infrastructure. The device supports adjustable position and heartbeat intervals, offline report caching, Bluetooth firmware updates and optional NFC configuration; LTE-M/NB-IoT service and compatible radio coverage are required.
Applications
Container & Cargo Tracking
Heavy Machinery Monitoring
Warehouse Asset Management
Pipeline Inspection Equipment
Industrial Tool Tracking
High-Value Asset Protection
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-0NBM4 |
| Product Model | NB-IoT & LTE-M Asset Management Tracker |
| TwoElectrons SKU | 2ESE2213 |
| Product Category | RTLS / Asset Tracking |
| Device Function | Industrial GNSS / Bluetooth 5.0 asset management tracker with NB-IoT & LTE-M backhaul |
| Cellular Connectivity | NB-IoT (Cat NB1 / NB2) and LTE-M (Cat M1) |
| SIM Interface | Nano SIM or eSIM |
| Cloud Transport Protocols | MQTT and HTTP |
| Optional LoRaWAN Interface | OEM lists an optional variant; not assumed for the standard NB-IoT/LTE-M device |
| Optional Wi-Fi | 2.4 GHz for positioning only (optional); not its standard backhaul |
| GNSS Constellations | BDS (BeiDou), GPS, GLONASS, Galileo and QZSS |
| GNSS Position Accuracy | Below 2.5 m CEP under OEM reference conditions |
| GNSS Cold Start Duration | 30–120 seconds |
| Assisted GNSS | Supported |
| Bluetooth Version | Bluetooth 5.0 |
| Bluetooth Supported Frames | iBeacon, Eddystone and proprietary BLE data |
| Bluetooth TX Power | -20 to +4 dBm, configurable in 4 dBm increments |
| Bluetooth Receiver Sensitivity | -96 dBm |
| Bluetooth Positioning Accuracy | Approximately 3 m with suitable BLE RTLS deployment |
| Bluetooth Payload Filtering | Supports selective bytes from BLE messages |
| Bluetooth Data Compression | Supported |
| Standard Battery Type | 2 × lithium-thionyl-chloride (Li-SOCl₂) primary cells, non-rechargeable |
| Battery Capacity | 2 × 4,000 mAh (8,000 mAh nominal total) |
| Estimated GNSS Position Reports | Approximately 30,000 at reporting interval above 10 minutes (OEM reference) |
| Estimated BLE Position Reports | Approximately 500,000 (OEM reference) |
| Standby Current | 15 µA |
| Maximum Current | 145 mA |
| Adjustable Position Report Interval | 5 seconds × n (n = 1–65,536) |
| Heartbeat Report Interval | 30 seconds × n (n = 1–65,536) |
| GNSS Position Report Interval | 5 seconds × n (n = 1–65,536) |
| Movement Duration | Supported |
| 6-Axis IMU and G-Sensor | Supported per current OEM product information |
| Fall Detection | Supported |
| Vibration, Shock and Tamper Monitoring | Supported |
| Door / Seal Status Monitoring | Supported with magnetic sensing |
| Barometric Pressure Sensor | Supported |
| Proximity Detection | Supported |
| Battery Level Reporting | Supported |
| Offline Data Logging | Supported; records uploaded when cellular connectivity resumes |
| Control Buttons | 2 buttons |
| NFC Tag | Optional, 1 KB |
| Firmware Updates | FOTA over Bluetooth |
| Dimensions With Mounting Lugs | 78 × 79 × 35 mm |
| Dimensions Without Mounting Lugs | 78 × 66 × 35 mm |
| Weight | 133 g |
| Housing Material | PC and ABS |
| PCB Coating | Waterproof coating |
| Ingress Protection | IP68 |
| Operating Temperature | -45°C to +85°C |
| Storage Temperature | -60°C to +90°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Certifications | Product-specific certificates not confirmed; request certificates from Lansitec for the exact radio variant |
| Network Requirements | Compatible operator NB-IoT or LTE-M coverage, supported hardware variant, active SIM/eSIM and configured endpoint |
Product Features
- NB-IoT / LTE-M Data Uplink: Cellular NB-IoT or LTE-M transports asset location, state and compatible Bluetooth-tag reports over configured MQTT or HTTP services; an active compatible SIM/eSIM is required.
- Multi-Constellation Outdoor Location: GNSS includes BDS, GPS, GLONASS, Galileo and QZSS with OEM accuracy below 2.5 m CEP in suitable sky conditions and assisted-GNSS support.
- Bluetooth 5.0 Indoor Asset Association: Receives iBeacon, Eddystone and supported private BLE advertisements, with approximately 3 m location performance when a compatible BLE RTLS system is deployed.
- Long-Life Primary Batteries: Two non-rechargeable 4,000 mAh Li-SOCl₂ batteries offer 8,000 mAh nominal total capacity; actual field life depends on GNSS, BLE, cellular reporting and environmental conditions.
- IP68 Industrial Enclosure: Compact PC/ABS housing with waterproof PCB coating for outdoor and indoor industrial deployment and a stated operating range from -45°C to +85°C.
- Intelligent Motion and Security: 6-axis IMU and motion/shock logic, fall detection, barometric pressure, proximity detection and magnetic door/seal monitoring support automated activity alerts.
- Low-Data Network Management: Configurable position/heartbeat intervals, filtered and compressed BLE advertising data, and cached data retransmission can reduce mobile data use.
- Maintenance and Provisioning: Supports FOTA over Bluetooth, battery-level reporting, two control buttons and optionally a 1 KB NFC tag; compatible OEM tools and server software are required.
Package Includes
- 1 × Lansitec 100-0NBM4 NB-IoT & LTE-M Asset Management Tracker
- 2 × 4,000 mAh Li-SOCl₂ primary batteries (standard battery configuration, as fitted by OEM)
SIM/eSIM service, separate BLE tags, mounting accessories, optional Wi-Fi positioning/NFC functions and asset-management software subscriptions are not assumed to be included. Confirm the approved OEM packing list before dispatch.
Frequently Asked Questions
What is the Lansitec 100-0NBM4 NB-IoT & LTE-M Asset Management Tracker used for?
Does this asset tracker support GNSS and indoor Bluetooth positioning?
How long does the 8,000 mAh battery last, and is it rechargeable?
Is the 100-0NBM4 suitable for harsh outdoor conditions and tamper monitoring?
Which cellular networks and remote management functions does it support?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- NB-IoT and LTE-M cellular asset tracker with multi-GNSS and Bluetooth 5.0
- GPS, BeiDou, GLONASS, Galileo and QZSS with less than 2.5 m CEP GNSS accuracy (OEM reference)
- Bluetooth 5.0 iBeacon, Eddystone and proprietary BLE-tag scanning, approximately 3 m positioning accuracy in suitable RTLS deployments
- 2 × 4,000 mAh non-rechargeable Li-SOCl₂ batteries, 8,000 mAh nominal total
- IP68 PC/ABS enclosure for industrial asset, tool and container tracking
- Motion, vibration, shock, fall, tamper, door/seal and proximity monitoring, plus barometer
- Adjustable position/heartbeat intervals, offline buffering and BLE payload filtering/compression
- Bluetooth firmware updates, Nano SIM/eSIM support, and optional 2.4 GHz Wi-Fi positioning / NFC tag
