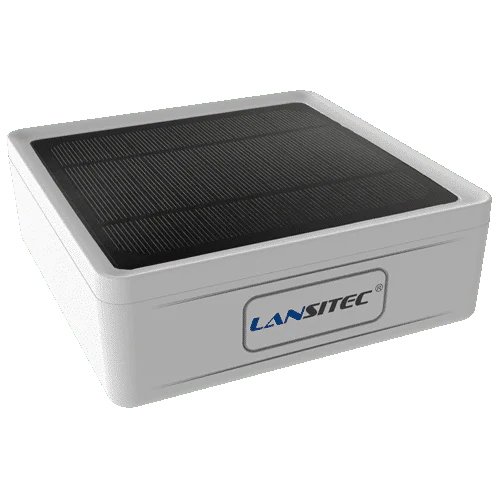

100-18361 - LoRaWAN Solar Tracker
Low Stock, 1 left
Product Description
LoRaWAN Solar Tracker for Indoor & Outdoor Asset Tracking
100-18361 - LoRaWAN Solar Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. LoRaWAN Protocol support is listed as LoRaWAN 1.0.2B. Power is provided through the stated 5300mAh rechargeable Li-ion battery arrangement. The Bluetooth TX Power specification is -20 to +4 dBm, configurable in 4 dBm steps. When choosing this lorawan solar tracker, start with the documented configuration.
Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. The LoRa TX Power specification is 0 to 20 dBm. The Bluetooth Receiving Range specification is 50 m. The LoRa Frequency specification is US915 / AU915 / EU868 / AS923 / LA915 / RU864 / KR920 / IN865 / KZ865 / CN470. The Optional Temperature Sensor Range specification is -40°C to +85°C. The dimensions figure is 160 × 160 × 55 mm.
Product Specifications
| Model / Part Number | 100-18361 |
|---|---|
| Product Type | LoRaWAN Solar Tracker |
| Dimensions | 160 × 160 × 55 mm |
| Weight | 460 g |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 0%–95% RH, non-condensing |
| Ingress Protection | IP66 |
| Battery | 5300mAh rechargeable Li-ion battery |
| Solar Panel | 3W solar panel |
| Bluetooth | Bluetooth 5.0 |
| Bluetooth TX Power | -20 to +4 dBm, configurable in 4 dBm steps |
| Bluetooth Sensitivity | -96 dBm |
| Bluetooth Receiving Range | 50 m |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| Activation Mode | OTAA or ABP |
| LoRa Frequency | US915 / AU915 / EU868 / AS923 / LA915 / RU864 / KR920 / IN865 / KZ865 / CN470 |
| LoRa TX Power | 0 to 20 dBm |
| LoRa Communication Distance | >2 km in urban area |
| Encryption | AES128 |
| GNSS | BDS / GPS / GLONASS |
| GNSS Accuracy | <2.5 m CEP50 |
| GNSS Cold Start | 30–120 s |
| Position Report Interval | 5s × n (1–65536) |
| Heartbeat Report Interval | 30s × n (1–255) |
| GNSS Position Report Interval | 5s × n (1–65536) |
| Adjustable Bluetooth Payload Reporting | Supported |
| FOTA over Bluetooth | Supported |
| Optional Temperature Report | Available on request |
| Optional Temperature Sensor Range | -40°C to +85°C |
Product Features
- Hybrid Indoor/Outdoor Tracking:Combines GNSS with <2.5m positioning accuracy for outdoor tracking and Bluetooth 5.0 for localized indoor asset monitoring.
- Solar-Powered & Long-Lasting Battery:A 3W solar panel and 5300mAh rechargeable battery reduce manual charging and maintenance requirements.
- LoRaWAN Connectivity:Used by Sends data over distances greater than 2km in urban areas and: AES128 encryption for secure communication.
- Adaptable Reporting Intervals:GNSS position, heartbeat and Bluetooth payload reporting can be adjusted to balance battery life and real-time visibility.
- IP66-Rated Enclosure:Rugged construction protects against dust and water for challenging outdoor and semi-outdoor installations.
- Nearby Tag Reporting:Collects data from nearby Bluetooth beacons or tags and relays it through LoRaWAN for centralized monitoring.
- Offline Caching & FOTA:Available functions include storing location information when the network is unavailable and firmware-over-the-air updates through Bluetooth.
