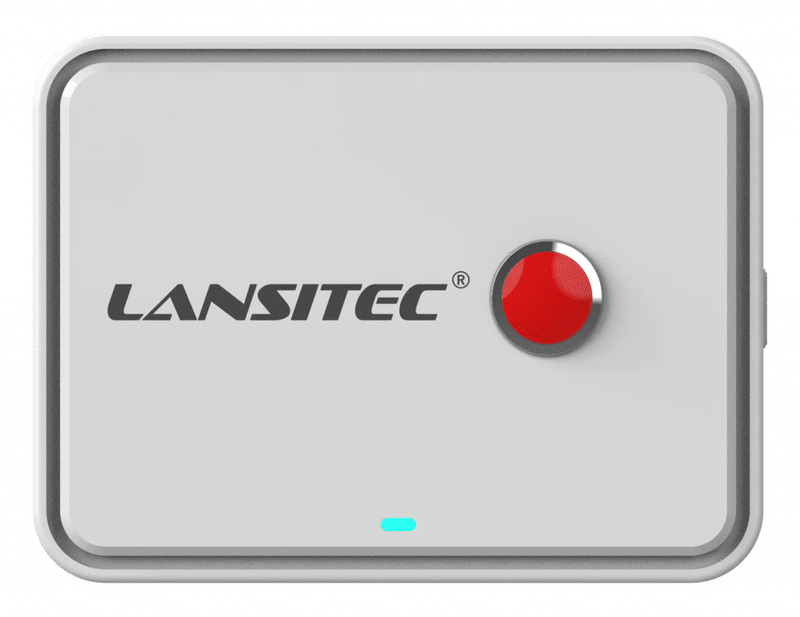

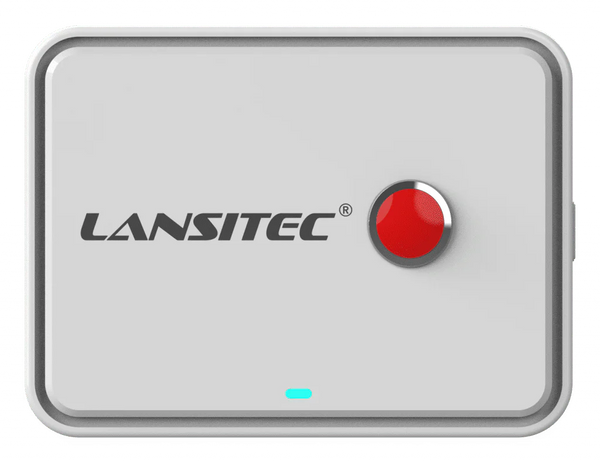

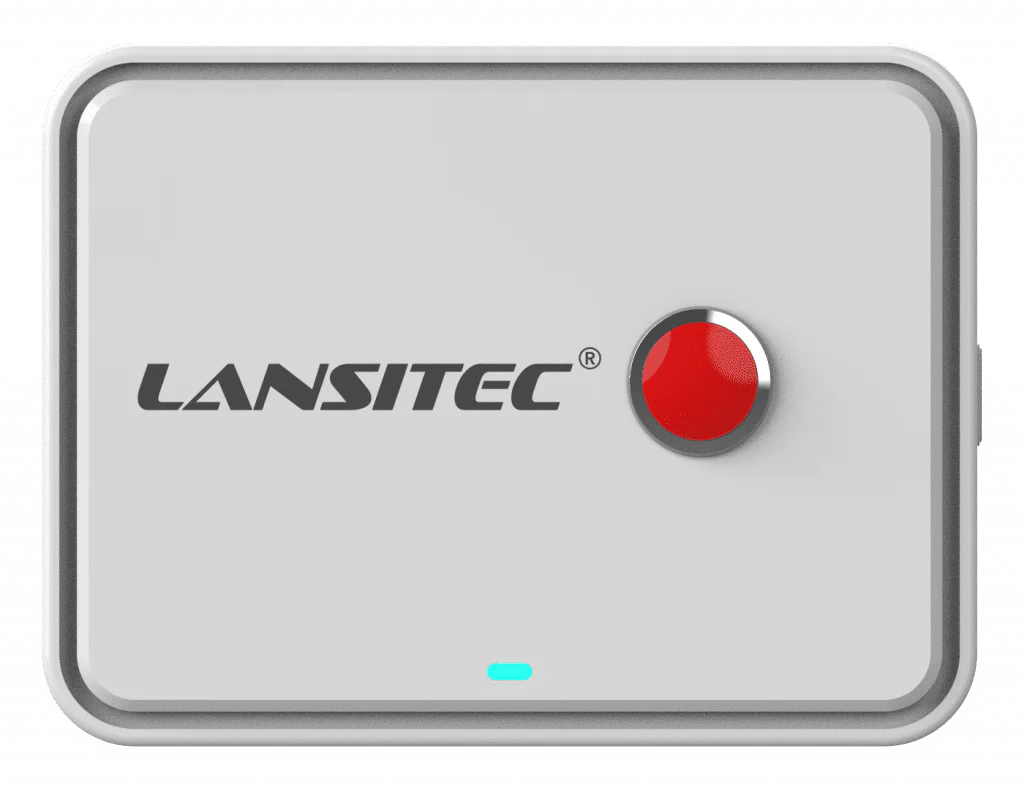

100-18364 - LoRaWAN SocketSync Proximity Gateway
Out of stock
Product Description
LoRaWAN SocketSync Proximity Gateway
The Lansitec SocketSync Proximity Gateway combines Bluetooth 5.0 and LoRaWAN connectivity to provide indoor proximity detection, local audible and visual alarms, and long-range wireless reporting. When a Bluetooth beacon enters the configured proximity range, the gateway activates its buzzer and LED, then forwards the beacon ID and received signal strength indicator (RSSI) through LoRaWAN for centralized monitoring.
In addition to proximity alarming, the device operates as a Bluetooth gateway, collecting messages from nearby tracking labels, beacons, sensors, bracelets and other BLE devices. Configurable settings include alarm RSSI threshold, buzzer volume and duration, position report interval, heartbeat interval and Bluetooth payload filtering. With geo-fencing, FOTA over Bluetooth, AES128 encryption, AC mains power and a built-in rechargeable battery, it is suited to indoor safety, asset protection and personnel-monitoring applications.
Product Specifications
| Product / Part Number | 100-18364 |
|---|---|
| Product Type | LoRaWAN SocketSync Proximity Gateway |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915 / AU915 / EU868 / AS923 / LA915 / RU864 / KR920 / IN865 / KZ865 / CN470 |
| LoRa TX Power | 0 to 20 dBm |
| LoRa Sensitivity | -139 dBm @ SF12, BW125kHz, 434/470MHz; -137 dBm @ SF12, BW125kHz, 868/915MHz |
| LoRa Communication Distance | >1.5 km in urban area |
| Encryption | AES128 |
| Bluetooth Protocol | Bluetooth 5.0 |
| Bluetooth TX Power | 4 / 0 / -4 / -8 / -12 / -16 / -20 dBm |
| Bluetooth Sensitivity | -96 dBm |
| Bluetooth Receiving Range | 50 m |
| Alarm RSSI Threshold | Default -65 dBm, adjustable |
| Buzzer Volume Level | 0 (silent) to 4 (maximum) |
| Buzzer Duration | 10s × n (1–255) |
| Position Report Interval | 5s × n (1–65536) |
| Heartbeat Report Interval | 30s × n (1–255) |
| Bluetooth Payload Filtering | Configurable; selected payload bytes can be reported via LoRaWAN |
| FOTA over Bluetooth | Supported |
| Switch | Mechanical |
| Maximum Beacons Supported | 105; maximum 15 beacon messages per LoRaWAN packet @ SF9 |
| Dimension | 81 × 61 × 26 mm (45 mm with mounting lug) |
| Housing Material | Fire-retardant ABS |
| Operating Temperature | -10°C to +60°C |
| Weight | 85 g |
| AC Input | 85–305 VAC in specification table; ordering information lists 90–260 VAC |
| Standby Current | 15 μA |
| Maximum Current | 200 mA |
| Status LED | Supported |
| Battery | 300mAh rechargeable Li-ion |
| Certifications | CE, FCC, RCM |
Product Features
- Proximity Alarm: Activates buzzing and LED flashing when a Bluetooth beacon enters the configured RSSI range.
- Dual Gateway Function: Works as a Bluetooth gateway, collecting BLE messages and forwarding them through LoRaWAN.
- Indoor Geo-Fencing: Supports zone-based monitoring for personnel, assets and restricted areas.
- Configurable Reporting: Adjustable position report interval, heartbeat interval, buzzer duration and Bluetooth payload filtering.
- Bluetooth 5.0: Provides up to 50 m receiving range with configurable TX power.
- LoRaWAN: Supports LoRaWAN 1.0.2B and multiple regional frequency plans including IN865.
- Flexible Power: AC-powered design with built-in 300mAh rechargeable Li-ion battery.
- Remote Maintenance: FOTA over Bluetooth with AES128 encryption.
Package Includes
- 1 × 100-18364 LoRaWAN SocketSync Proximity Gateway
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 and LoRaWAN proximity gateway with local buzzer and LED alerts.
- Detects nearby Bluetooth beacons and forwards beacon ID and RSSI through LoRaWAN.
- Configurable alarm RSSI threshold, buzzer volume and alarm duration.
- Geo-fence support for indoor asset, personnel and restricted-zone monitoring.
- Bluetooth receiving range up to 50 m and LoRaWAN urban communication distance over 1.5 km.
- Supports nearby tracking labels, beacons, sensors and bracelets.
- Configurable Bluetooth payload filtering and reporting via LoRaWAN.
- FOTA over Bluetooth, AES128 encryption and CE/FCC/RCM certification.
