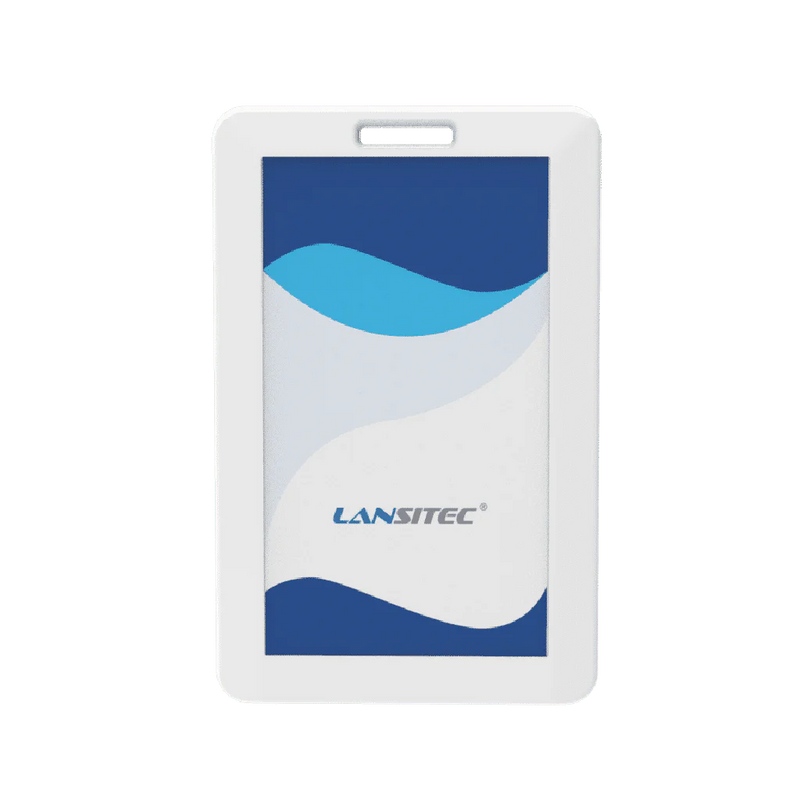

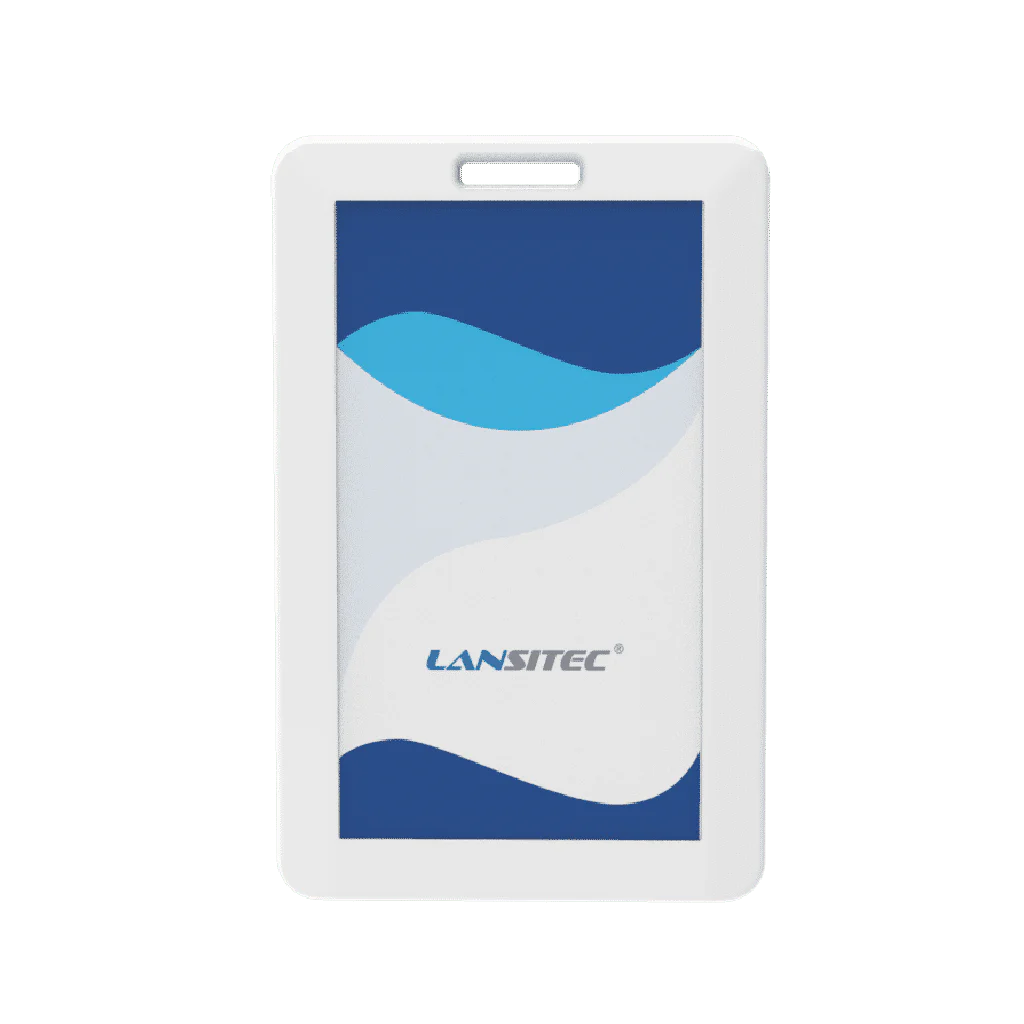

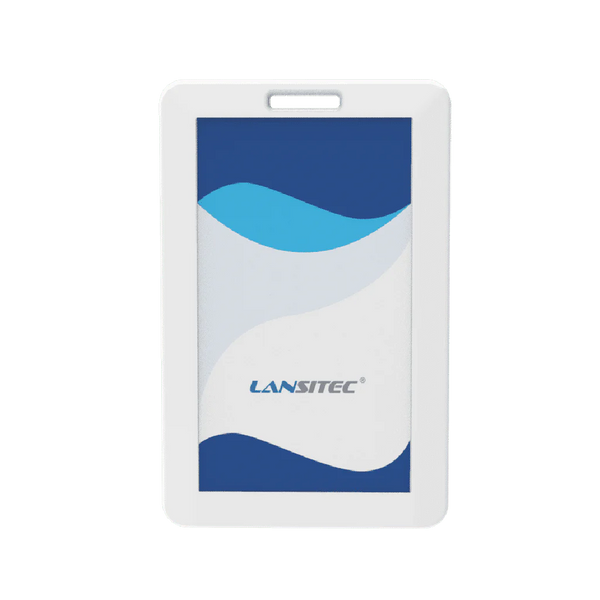

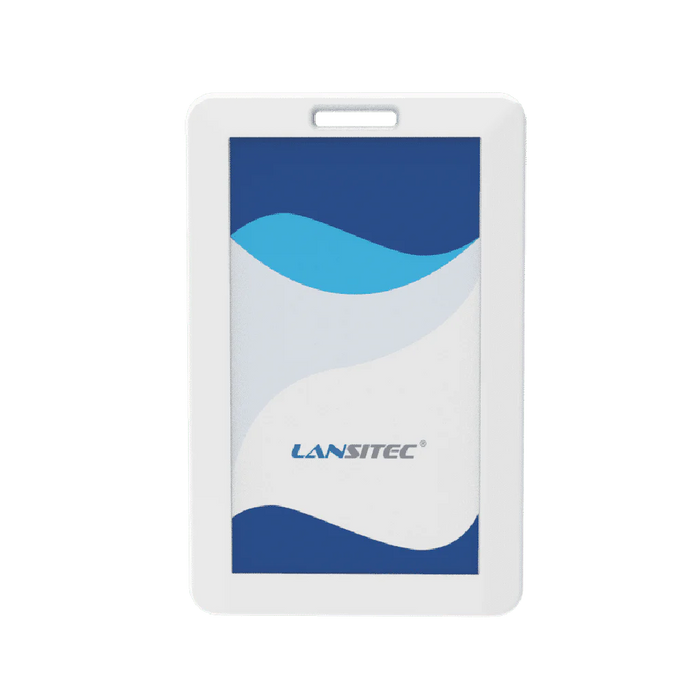

100-18479 - LoRaWAN Compact Bluetooth Gateway
Low Stock, 1 left
Product Description
The 100-18479 LoRaWAN Compact Bluetooth Gateway receives nearby Bluetooth 5.0 beacon messages and forwards selected data over LoRaWAN for indoor monitoring.
Its portable 97 × 62 × 7mm enclosure houses a 600mAh rechargeable Li-ion battery. BLE payload filtering, geo-fencing, configurable reporting and Bluetooth FOTA are supported.
Applications
Indoor Asset Tracking
Personnel Tracking
Indoor Positioning
Wireless Sensor Networking
Facility Monitoring
Geofencing
Product Specifications
| Model / Part Number | 100-18479 |
|---|---|
| Product Type | LoRaWAN Compact Bluetooth Gateway |
| Dimension | 97 × 62 × 7 mm |
| Weight | 35g |
| Housing Material | ABS |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Battery | 600mAh rechargeable Li-ion |
| Standby Current | 25μA |
| Maximum Current | 500mA |
| Power Supply | 5V / 1A |
| Charging Interface | Micro USB |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | IN865 (part number 100-18479) |
| LoRa Communication Interval | As fast as 5s |
| LoRa Sensitivity | -139dBm @ SF12, BW125kHz, 434/470MHz; -137dBm @ SF12, BW125kHz, 868/915MHz |
| Transmission Capacity | Receives up to 100 beacon messages within 1s; sends max. 15 beacon messages per LoRaWAN packet |
| Encryption | AES128 |
| Geo-Fence | Supported |
| Bluetooth Data Filter & Report | Supported |
| Position Report Interval | 5s × n (1 to 65536) |
| Heartbeat Report Interval | 30s × n (1 to 65536) |
| FOTA over Bluetooth | Supported |
| Maximum Beacons Supported | 105; max. 15 beacon messages in one LoRaWAN packet @ SF9 |
| Certification | CE, FCC, RCM |
Product Features
- Portable Deployment: Compact, lightweight form factor suited to temporary indoor tracking, pop-up venues and mobile installations.
- Bluetooth 5.0 Reception: Collects compatible BLE beacon and sensor messages.
- LoRaWAN Backhaul: Forwards selected BLE data through a LoRaWAN 1.0.2B network; model 100-18479 is associated with IN865.
- Battery-Powered Operation: 600mAh rechargeable Li-ion battery provides approximately 10 hours under the stated operating configuration.
- Geo-Fence Support: Supports virtual zone-based tracking when integrated with suitable software.
- Payload Filtering: Selectively forwards Bluetooth payload information for efficient uplink use.
- Charging and Power: 5V/1A Micro USB power input with rechargeable battery.
- Remote Maintenance: FOTA over Bluetooth with adjustable position and heartbeat reporting intervals.
Package Includes
- 1 × 100-18479 LoRaWAN Compact Bluetooth Gateway
Frequently Asked Questions
What is the 100-18479 - LoRaWAN Compact Bluetooth Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Portable Bluetooth 5.0-to-LoRaWAN gateway for beacon and sensor data.
- Slim 97 × 62 × 7mm enclosure weighing approximately 35g.
- Built-in 600mAh rechargeable Li-ion battery.
- Approximately 10 hours operation under stated configuration conditions.
- LoRaWAN 1.0.2B; 100-18479 is listed as the IN865 version.
- BLE data filtering, adjustable reporting and geo-fencing support.
- Receives up to 100 beacon messages per second under stated conditions.
- 5V/1A Micro USB charging, Bluetooth FOTA and AES128 encryption.
