100-18579 - WiFi Indoor Bluetooth Gateway
Low Stock, 1 left
Product Description

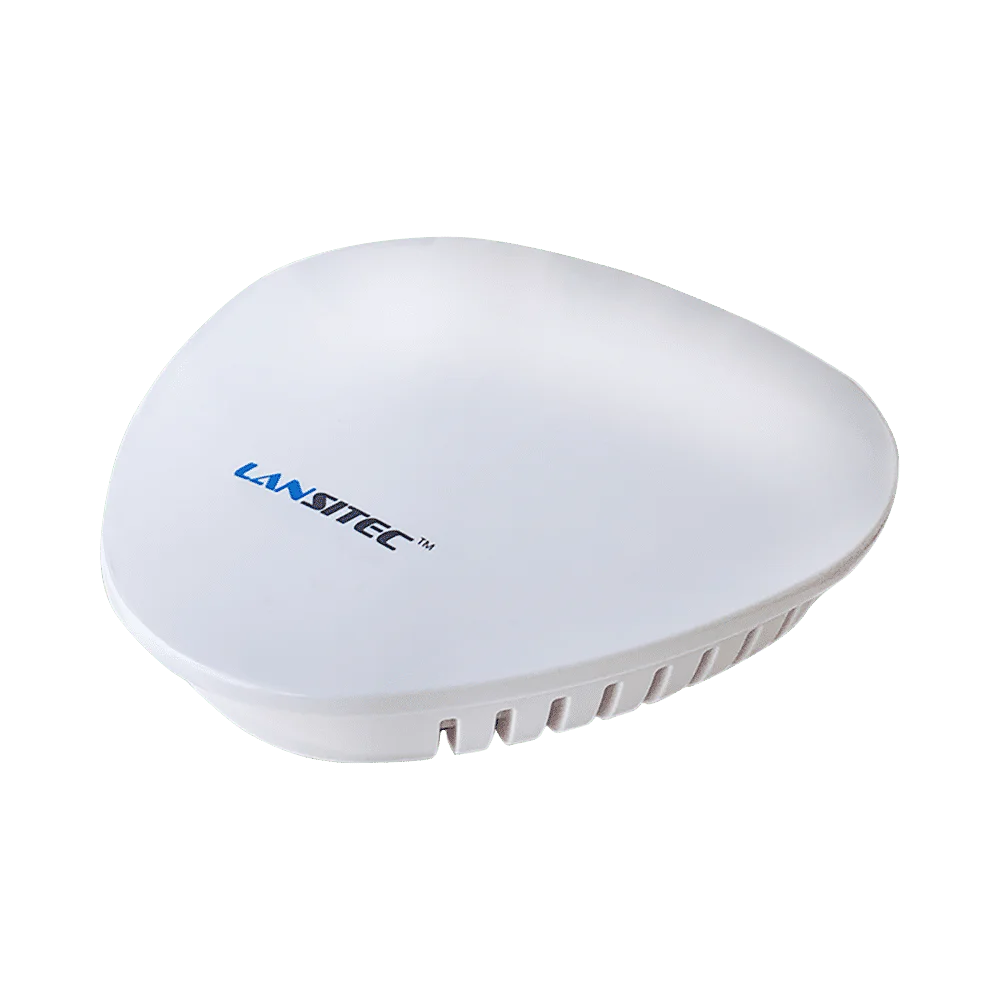

WiFi Indoor Bluetooth Gateway
The Lansitec WiFi Indoor Bluetooth Gateway (Part No. 100-18579) combines Bluetooth 5.0 iBeacon reception with 2.4 GHz Wi-Fi network connectivity for indoor asset and personnel tracking. It collects signals from compatible Bluetooth tags, staff badges and wireless sensors, then forwards data to a configured server using HTTP or MQTT. Designed for facilities, factories, hospitals, offices and event spaces, it supports configurable Bluetooth payload filtering, reporting intervals and geo-fence workflows with suitable software.
The 120 × 120 × 31 mm gateway has a rugged ABS/PC enclosure, 600 mAh rechargeable Li-ion battery, Micro-USB charging and 5 V/1 A external power. It supports 802.11 b/g/n Wi-Fi, WPA/WPA2, TLS/SSL and firmware updates over Bluetooth. Lansitec specifies handling up to 200 received beacon messages per second and up to 15 beacon messages in a reporting package. Positioning accuracy is stated as approximately 3 m for suitable indoor BLE RTLS setups; actual accuracy depends on the beacon/receiver layout and deployment.
Applications
Smart Building
Smart Office
Smart Factory
Hospital Asset Tracking
Retail Inventory Management
Conference Attendee Tracking
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-18579 (buyer-provided ordering reference; confirm with supplier) |
| Model | WiFi Indoor Bluetooth Gateway |
| TwoElectrons SKU | 2ESE2205 |
| Category | Edge Networking / BLE Gateways |
| Function | Bluetooth Low Energy gateway with Wi-Fi network backhaul |
| Bluetooth Protocol | Bluetooth 5.0, iBeacon |
| Bluetooth RF Frequency | 2.4 GHz ISM |
| Bluetooth TX Power | -20 to +4 dBm, 4 dB configuration increments |
| Bluetooth Receiver Sensitivity | -96 dBm |
| BLE Positioning Accuracy | Approx. 3 m with suitable site layout and RTLS software |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Security | WPA/WPA2; open networks supported |
| Data Transport Protocols | HTTP; MQTT |
| TLS / SSL | Supported |
| Encryption | AES 128/256 |
| Payload / Data Formats | JSON, HEX, plain text |
| Bluetooth Beacon Handling | Up to 200 beacon messages received per second |
| Maximum Reports per Package | 15 beacon messages per default data package |
| Position Report Interval | 5 s × n, n = 1 to 65536 |
| Heartbeat Report Interval | 30 s × n, n = 1 to 65536 |
| Wi-Fi Scan Interval | 5 s × n, n = 0 to 65535 |
| Geo-fence | Supported with compatible location infrastructure |
| Bluetooth Data Filtering | Configurable |
| Bluetooth FOTA | Supported |
| Power Supply | 5 V / 1 A external supply |
| Built-In Battery | 600 mAh rechargeable Li-ion |
| Charging Port | Micro USB |
| Status LED | Supported |
| Dimensions | 120 × 120 × 31 mm |
| Weight | 175 g |
| Enclosure | ABS and PC |
| Operating Temperature | −40°C to +85°C (OEM specification) |
| Storage Temperature | −45°C to +85°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Network Dependencies | Requires available 2.4 GHz Wi-Fi and configured HTTP/MQTT service |
| LoRaWAN / Cellular Backhaul | Not listed for this Wi-Fi model; separate Lansitec variants use other backhaul technologies |
| IP / Hazardous Area Ratings | Not established on the Wi-Fi model's OEM product page |
Product Features
- BLE-to-Wi-Fi Data Bridge: Collects Bluetooth 5.0 iBeacon and compatible BLE device signals and sends selected data through 2.4 GHz Wi-Fi to configured HTTP or MQTT application endpoints.
- Indoor Positioning Workflows: Supports RTLS systems for badges and asset tags; Lansitec cites approximately 3 m positioning accuracy with a suitable beacon layout and application.
- Edge Data Filtering: Configurable Bluetooth payload filtering helps forward only relevant beacon IDs, sensor readings, status or alarm data to reduce unnecessary network traffic.
- Flexible Device Reporting: Position reporting interval 5 s × n (n = 1–65536), heartbeat 30 s × n (1–65536), and Wi-Fi scanning interval 5 s × n (0–65535).
- High-Throughput BLE Reception: Manufacturer specifies 200 BLE beacon packets received per second and 15 default beacons included per report package.
- Secure Wi-Fi Backhaul: Supports WPA/WPA2 and open Wi-Fi networks, AES 128/256 encryption and TLS/SSL with HTTP/MQTT connectivity.
- Power Flexibility: 600 mAh built-in rechargeable battery for portable/temporary use; 5 V/1 A Micro-USB supply supports fixed indoor installation.
- Maintenance and Geofencing: Bluetooth FOTA provides supported firmware updates. Application geo-fence events support monitoring of people or assets crossing designated zones.
Package Includes
- 1 × Lansitec WiFi Indoor Bluetooth Gateway, Part No. 100-18579
USB cable, adapter, mounting accessories and other supplied items should be verified against Lansitec's packing list; Bluetooth beacons and cloud/software subscriptions are separate.
Frequently Asked Questions
What is the Lansitec 100-18579 WiFi Indoor Bluetooth Gateway used for?
Does this gateway require LoRaWAN or a SIM card?
How many BLE beacon messages can the gateway process?
Can the gateway operate from battery power and be configured remotely?
What are the supported Wi-Fi, data and security protocols?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 iBeacon reception with 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) backhaul
- Receives and forwards BLE beacons, staff badges and compatible wireless sensor data
- HTTP and MQTT data reporting; JSON, HEX and plain-text payload formats
- Supports TLS/SSL, WPA/WPA2 Wi-Fi security and AES 128/256 encryption
- Configured for geo-fence alerts and selective Bluetooth payload forwarding
- Receives up to 200 beacon messages per second; up to 15 per report package
- 600 mAh rechargeable Li-ion battery plus 5 V/1 A Micro-USB external power
- Bluetooth firmware-over-the-air updates, LED status and configurable report intervals
