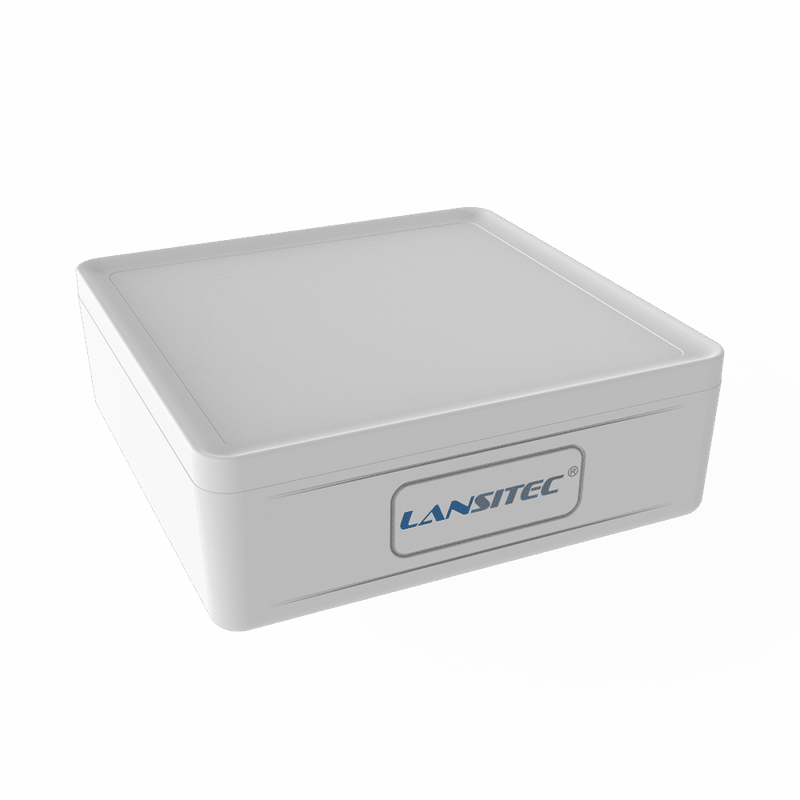

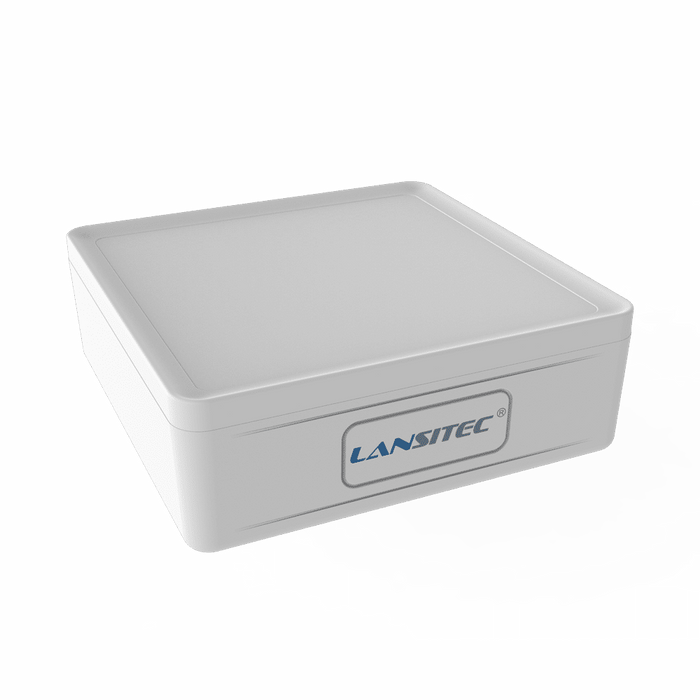

100-NBBG2 - NB-IoT & LTE-M Macro Bluetooth Gateway
Low Stock, 1 left
Product Description
NB-IoT & LTE-M Macro Bluetooth Gateway
The Lansitec 100-NBBG2 NB-IoT & LTE-M Macro Bluetooth Gateway is an industrial BLE-to-cellular data collector for gathering nearby Bluetooth 5.0 beacon, sensor and controller messages and forwarding selected reports through NB-IoT or LTE-M mobile networks. It supports iBeacon, Eddystone and compatible proprietary BLE protocols, configurable payload filtering and MQTT/HTTP cloud reporting. It is suitable for hospital equipment visibility, industrial inventory, vehicle-related BLE sensor relay, shipping cargo and other remote asset monitoring deployments that require low-maintenance cellular connectivity.

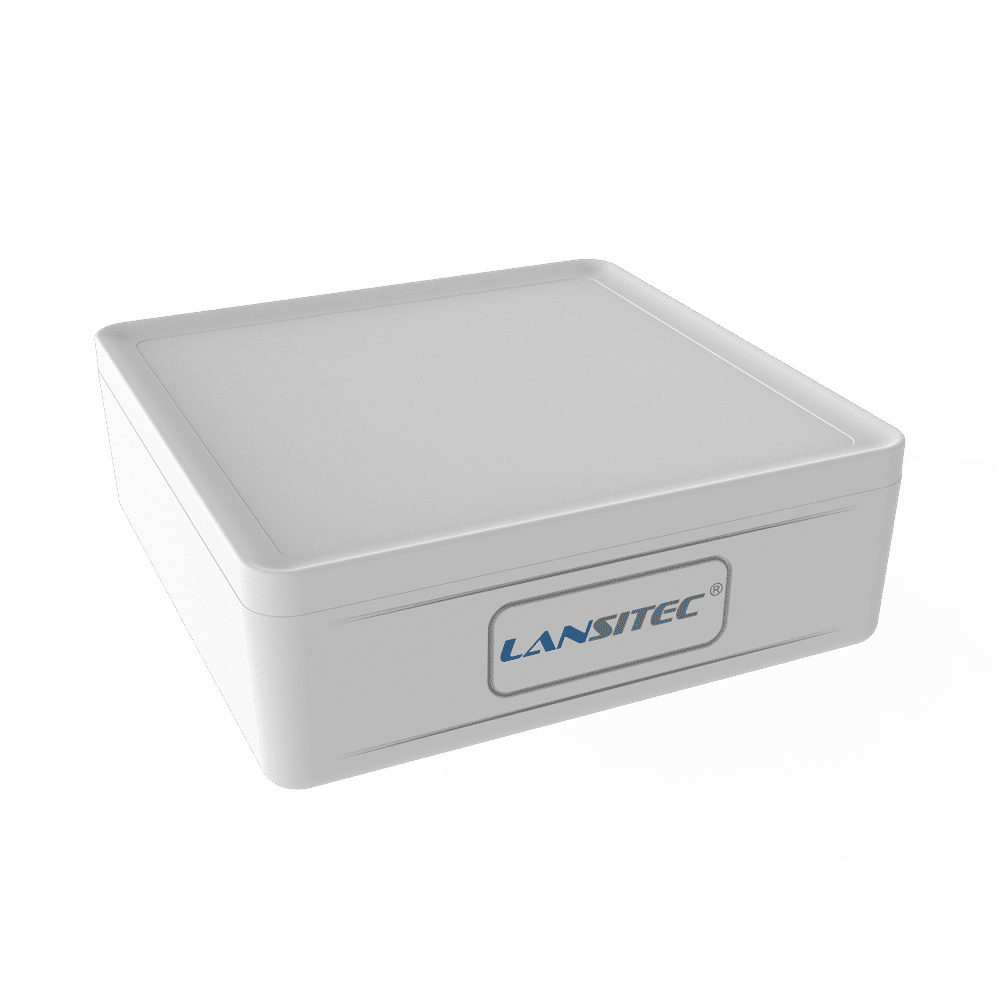

The rugged IP66-rated, anti-UV PC-ABS housing measures 160 × 160 × 55 mm and weighs approximately 530 g. Two 19,000 mAh non-rechargeable Li-SOCl₂ batteries provide 38,000 mAh nominal capacity; the OEM rates battery service around five years at 5-second Bluetooth receiving and 240-second reporting in reference conditions, while actual field life depends on cellular coverage, reporting frequency and ambient conditions. The gateway supports up to 105 nearby compatible Bluetooth beacons, MQTT/HTTP reporting, TLS 1.2 transport encryption, 1,400-byte maximum uplink reports, Bluetooth firmware upgrades and adjustable report/heartbeat intervals. LoRaWAN and 2.4 GHz Wi-Fi positioning are optional OEM configurations rather than standard cellular backhaul.
Applications
Hospital Asset Tracking
Fleet Sensor Monitoring
Industrial Inventory
Supply Chain Visibility
Off-Grid Infrastructure
Warehouse Asset Management
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-NBBG2 |
| Product Name | NB-IoT & LTE-M Macro Bluetooth Gateway |
| TwoElectrons SKU | 2ESE2218 |
| Product Category | Edge Networking / BLE Gateways |
| Gateway Function | BLE beacon/sensor data collection with NB-IoT and LTE-M cellular uplink |
| Cellular Technology | NB-IoT (Cat NB1/NB2) and LTE-M (Cat M1) |
| SIM Interface | Nano SIM or eSIM |
| Application Transport | MQTT / HTTP |
| BLE Standard | Bluetooth 5.0 |
| Supported BLE Protocols | iBeacon, Eddystone and compatible private BLE protocol frames |
| Bluetooth TX Power | -20 to +4 dBm, configurable in 4 dBm steps |
| Bluetooth Receiver Sensitivity | -96 dBm |
| BLE Payload Filter | Configurable bytes selected from BLE advertisements |
| Maximum Beacons Supported | 105, OEM reference; consult OEM for higher quantity |
| Maximum Uplink Report Size | 1,400 bytes |
| Transport Encryption | TLS 1.2 |
| Data Report Interval | 5 seconds × n, n = 1 to 65,536 |
| Heartbeat Report Interval | 30 seconds × n, n = 1 to 65,536 |
| Firmware Upgrade | FOTA over Bluetooth |
| Power Switch | Mechanical |
| Battery Technology | Lithium-thionyl-chloride (Li-SOCl₂), non-rechargeable primary battery |
| Standard Battery Configuration | 2 × 19,000 mAh |
| Standard Nominal Battery Capacity | 38,000 mAh |
| Optional Battery Configurations | 4 × 19,000 mAh or 6 × 19,000 mAh subject to OEM confirmation and quotation |
| OEM Rated Battery Life | 5 years at 5-second Bluetooth receiving and 240-second report interval; reference estimate |
| OEM Bluetooth Positioning Operations | Approx. 1 million operations under OEM reference conditions; detailed scenario to be checked with battery calculator |
| Standby Current | 25 µA |
| Maximum Operating Current | 300 mA |
| Dimensions | 160 × 160 × 55 mm |
| Weight | 530 g |
| Enclosure Material | Anti-UV PC-ABS |
| Ingress Protection Rating | IP66 |
| PCB Protection | Waterproof coating |
| Operating Temperature | -20°C to +65°C (OEM technical specification table) |
| Storage Temperature | -60°C to +90°C |
| Operating Humidity | 0–95% RH, non-condensing |
| LoRaWAN Connectivity | Optional OEM configuration; not standard on 100-NBBG2 |
| Wi-Fi | Optional 2.4 GHz positioning function; not standard data backhaul |
| GNSS / GPS | No standalone onboard GNSS/GPS specified by OEM for standard macro BLE gateway |
| Manufacturer-Listed Certifications | CE, FCC, RCM and BQB; check supplied variant documentation |
| Network Requirements | Region-compatible cellular modem, active SIM/eSIM, supported NB-IoT/LTE-M operator coverage and configured server |
Product Features
- Low-Power Cellular BLE Gateway: Collects compatible nearby Bluetooth beacons, tags, sensors or controllers and sends selected BLE data to an IoT server over NB-IoT or LTE-M. An activated supported cellular SIM/eSIM and cloud endpoint are needed.
- Five-Year Reference Battery Life: Uses two 19,000 mAh Li-SOCl₂ primary cells (38,000 mAh total). Lansitec states approximately five years at 5 s BLE-receiving and 240 s reporting conditions; shorter intervals and weak mobile coverage can reduce real-life endurance.
- Indoor and Outdoor Asset Intelligence: Suitable for hospitals, vehicles, industrial warehouses, shipping containers and unmanned infrastructure, gathering BLE sensor information without local Ethernet or Wi-Fi backhaul.
- Rugged Long-Term Installation: 160 × 160 × 55 mm, approximately 530 g housing of anti-UV PC-ABS, IP66 ingress resistance and waterproof PCB coating for harsh industrial exposure.
- BLE Protocol Compatibility: Bluetooth 5.0 with iBeacon, Eddystone and OEM proprietary formats. Bluetooth transmitter power adjustable -20 to +4 dBm in 4 dBm steps; receiver sensitivity -96 dBm.
- Data Filtering and Scalability: Filters selected BLE advertising bytes and forwards up to 1,400 bytes per uplink report; supports up to 105 beacon devices under OEM reference parameters.
- Encrypted Remote Reporting: Supports MQTT/HTTP, TLS 1.2 transport protection and adjustable report and heartbeat intervals for monitoring or RTLS applications.
- Lifecycle Management: Offers a mechanical switch, firmware over the air using Bluetooth, and optional OEM variants with LoRaWAN or 2.4 GHz Wi-Fi positioning (not included by default).
Package Includes
- 1 × Lansitec 100-NBBG2 NB-IoT & LTE-M Macro Bluetooth Gateway
- Factory-integrated standard 2 × 19,000 mAh non-rechargeable Li-SOCl₂ battery configuration, subject to OEM packing confirmation
SIM/eSIM data subscription, separate Bluetooth beacons and tags, mounting materials, external sensors and server/platform subscriptions are not confirmed as included. Refer to accepted supplier packing list.
Frequently Asked Questions
What is the Lansitec 100-NBBG2 NB-IoT & LTE-M Macro Bluetooth Gateway used for?
What is the battery capacity and service life of the Macro Bluetooth Gateway?
Is the NBBG2 suitable for outdoor installations?
How many Bluetooth beacons are supported and what cloud protocols can it use?
Can the NBBG2 be configured remotely and does it include Wi-Fi, LoRaWAN or GPS?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Industrial Bluetooth 5.0 gateway with NB-IoT and LTE-M cellular backhaul
- Receives iBeacon, Eddystone and supported proprietary BLE beacons and sensors
- Long-life non-rechargeable Li-SOCl₂ battery pack: 2 × 19,000 mAh (38,000 mAh total)
- Up to 5 years OEM reference operation at 5-second BLE receiving and 240-second uplink intervals
- IP66 anti-UV PC-ABS enclosure with waterproof PCB coating
- Supports up to 105 Bluetooth beacons with customizable BLE payload filtering
- MQTT/HTTP server reporting with TLS 1.2 transport encryption; up to 1,400 bytes per uplink
- Configurable data/heartbeat intervals, mechanical power switch and Bluetooth FOTA
