100-NBBG3 - NB-IoT & LTE-M Compact Bluetooth Gateway
Low Stock, 1 left
Product Description

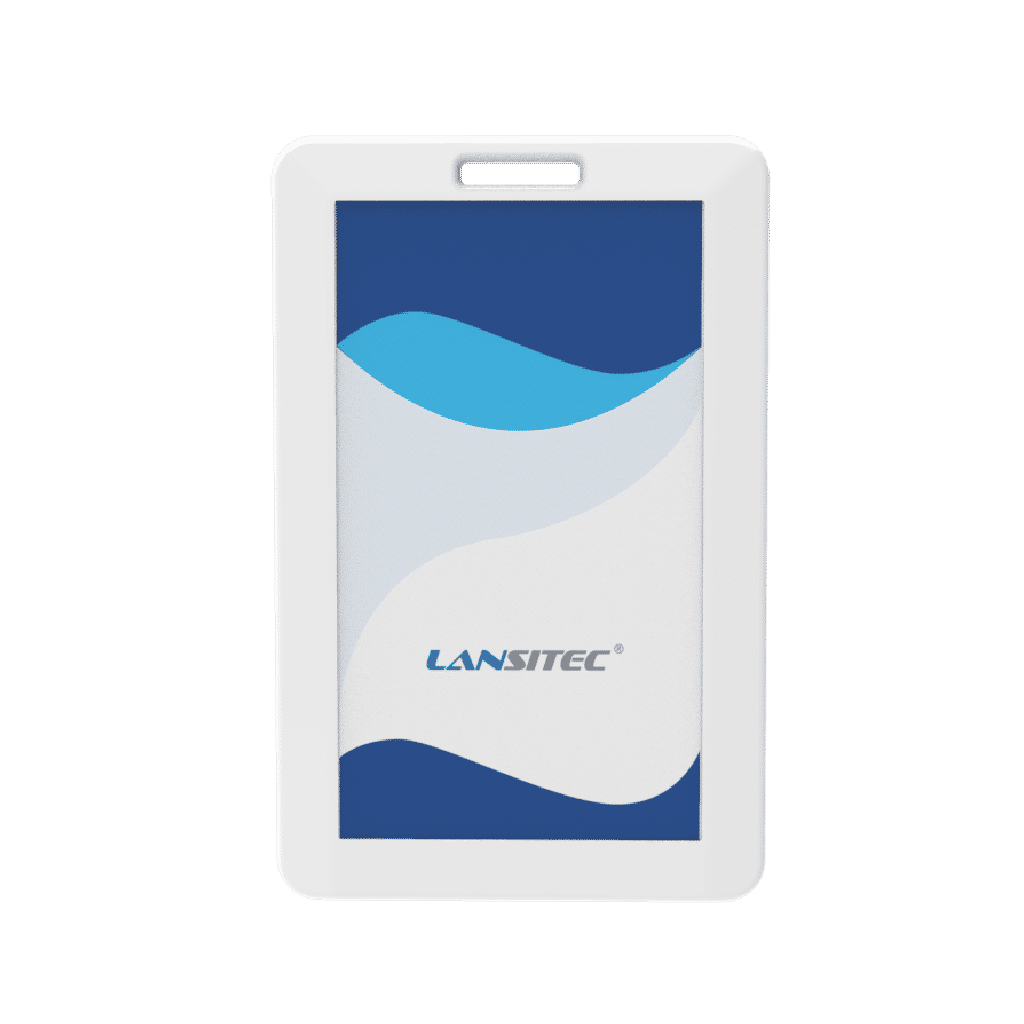

NB-IoT & LTE-M Compact Bluetooth Gateway
The Lansitec 100-NBBG3 NB-IoT & LTE-M Compact Bluetooth Gateway is a pocket-sized, portable Bluetooth 5.0 receiver with NB-IoT and LTE-M cellular uplink for collecting nearby BLE beacon and compatible sensor data. It supports iBeacon, Eddystone and proprietary Bluetooth frames, forwarding selected or compressed payloads to a configured MQTT or HTTP server without relying on local Wi-Fi for the standard data uplink. Suitable applications include hospital equipment visibility, fleet BLE-sensor collection, smart-city infrastructure monitoring, offices and short-term industrial installations.
The slim 97 × 62 × 7 mm ABS enclosure weighs approximately 35 g and incorporates a 600 mAh rechargeable Li-ion battery, 5 V / 1 A Micro-USB power and a mechanical power switch. Lansitec illustrates approximately 10 hours of portable operation without external power under reference conditions; endurance varies with scanning, transmission and cellular coverage. It provides adjustable reporting and heartbeat intervals, BLE payload filtering and compression, battery-level reporting, AES-128 encryption and firmware updates over Bluetooth. Lansitec specifies approximately 3 m BLE positioning accuracy in suitable RTLS deployments. Optional LoRaWAN and 2.4 GHz Wi-Fi positioning configurations must be confirmed separately and are not standard cellular backhaul.
Applications
Hospital Asset Tracking
Vehicle & Fleet Monitoring
Public Infrastructure Monitoring
Construction & Remote Sites
Smart Office
Warehouse Asset Management
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-NBBG3 |
| Product Model | NB-IoT & LTE-M Compact Bluetooth Gateway |
| TwoElectrons SKU | 2ESE2216 |
| Product Category | Edge Networking / BLE Gateways |
| Gateway Function | Bluetooth 5.0 beacon/sensor data bridge to NB-IoT and LTE-M cellular networks |
| Cellular Technology | NB-IoT (LTE Cat NB1 / NB2) and LTE-M (Cat M1) |
| SIM Interface | Nano SIM or eSIM |
| Data / Server Protocols | MQTT, HTTP |
| Bluetooth Standard | Bluetooth 5.0 |
| Bluetooth Frame Formats | iBeacon, Eddystone and private BLE frames |
| Bluetooth Transmit Power | −20 to +4 dBm, adjustable in 4 dBm steps |
| Bluetooth Receiver Sensitivity | −96 dBm |
| Indoor BLE Positioning Precision | Approx. 3 m with compatible beacons, infrastructure and software |
| Bluetooth Payload Filters | Configurable BLE advertisement-byte selection |
| Bluetooth Data Compression | Supported |
| Payload Encryption | AES-128 |
| Device Data Report Interval | 5 s × n, n = 1 to 65,536 |
| Device Heartbeat Interval | 30 s × n, n = 1 to 65,536 |
| Firmware Update | Firmware over the air via Bluetooth supported |
| Battery Level Reporting | Supported |
| Mechanical Power Switch | Supported |
| Battery Type | Rechargeable lithium-ion |
| Battery Capacity | 600 mAh |
| Typical Untethered Runtime | Approximately 10 h under OEM reference conditions; actual runtime varies |
| Bluetooth Positioning Report Capacity | Approx. 2,250 operations per OEM reference power table, depending on configuration |
| OEM GNSS Power-Table Figure | Approx. 900 operations in power table; built-in GNSS capability for specific purchased variant is unconfirmed |
| Power Input | 5 V DC / 1 A |
| Charge / Power Connector | Micro USB |
| Standby Current | 25 µA |
| Maximum Current | 350 mA |
| External LoRaWAN Radio | Optional manufacturer configuration, not standard |
| 2.4 GHz Wi-Fi | Optional, positioning only; not standard cellular uplink |
| Dimensions | 97 × 62 × 7 mm (ordering description 95.4 × 61.4 × 7 mm) |
| Weight | 35 g |
| Housing Material | ABS |
| Operating Temperature | −10°C to +65°C |
| Storage Temperature | −20°C to +80°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Ingress Protection Rating | No IP rating specified for this compact product on current OEM page |
| OEM-Listed Certifications | CE, FCC; confirm applicable certifications for the actual regional supplied variant |
| Network and Configuration | Supported NB-IoT/LTE-M operator coverage, region-compatible gateway radio, active SIM/eSIM and configured MQTT/HTTP server |
Product Features
- Cellular BLE Data Bridge: Receives Bluetooth 5.0 beacon and sensor advertisements and sends filtered reports through NB-IoT or LTE-M cellular service to compatible MQTT or HTTP endpoints.
- Portable Form Factor: At 97 × 62 × 7 mm and 35 g, the unit is suitable for portable asset monitoring, field testing, temporary inventory surveys and vehicle-carried BLE data collection.
- Rechargeable 600 mAh Battery: Integrated rechargeable lithium-ion battery supports about 10 h untethered operation under OEM reference conditions, depending on scan windows, uplink frequency and cellular coverage.
- BLE Protocol Compatibility: Receives iBeacon, Eddystone and supported proprietary beacon frames; supports programmable BLE transmit power and payload filtering.
- Edge Filtering and Compression: Selects particular bytes of Bluetooth advertisements and compresses the payload to reduce cellular traffic and cloud ingestion overhead.
- Configurable Reporting: Data reporting interval uses 5 s × n and heartbeat interval uses 30 s × n (n 1–65,536), configurable with compatible software and device firmware.
- Remote Data Integration and Maintenance: Supports MQTT and HTTP data delivery, battery telemetry, Bluetooth FOTA, mechanical switching and AES-128 encryption as specified by the OEM.
- Indoor BLE Positioning: Supports approximately 3 m BLE-based positioning precision under appropriate beacon placement and RTLS software. Do not treat the compact BLE gateway as a standalone GPS tracker.
- Optional Connectivity Variants: LoRaWAN and 2.4 GHz Wi-Fi positioning are optional manufacturer configurations. The standard 100-NBBG3 uses NB-IoT/LTE-M uplink, not built-in Wi-Fi data backhaul.
Package Includes
- 1 × Lansitec 100-NBBG3 NB-IoT & LTE-M Compact Bluetooth Gateway with built-in rechargeable 600 mAh Li-ion battery
USB charging cable, 5 V / 1 A adapter, active SIM/eSIM plan, separate BLE beacons, mounting accessories and cloud platform subscription are not confirmed as standard inclusions; verify the supplier packing list.
Frequently Asked Questions
What does the Lansitec 100-NBBG3 Compact Bluetooth Gateway do?
Is it NB-IoT/LTE-M or a Cat-1 Bluetooth Gateway?
How long does the rechargeable battery last and how is it powered?
What is the size and indoor positioning precision?
Can the Bluetooth data filtering and firmware be managed?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Pocket-sized Bluetooth 5.0 gateway with integrated NB-IoT and LTE-M cellular backhaul
- Collects iBeacon, Eddystone and private BLE tag or sensor broadcasts
- Compact 97 × 62 × 7 mm ABS housing with approximate weight of 35 g
- Rechargeable 600 mAh Li-ion battery; approximately 10 h untethered runtime in OEM example
- Micro-USB 5 V / 1 A charging and power input with mechanical switch
- Configurable BLE advertisement payload filtering and Bluetooth data compression
- MQTT and HTTP reporting, adjustable data and heartbeat intervals, AES-128 security
- Bluetooth firmware upgrades, battery-level reporting and approximately 3 m indoor BLE positioning precision with suitable RTLS
