100-NBBG5 - NB-IoT & LTE-M Indoor Bluetooth Gateway
Low Stock, 1 left
Product Description

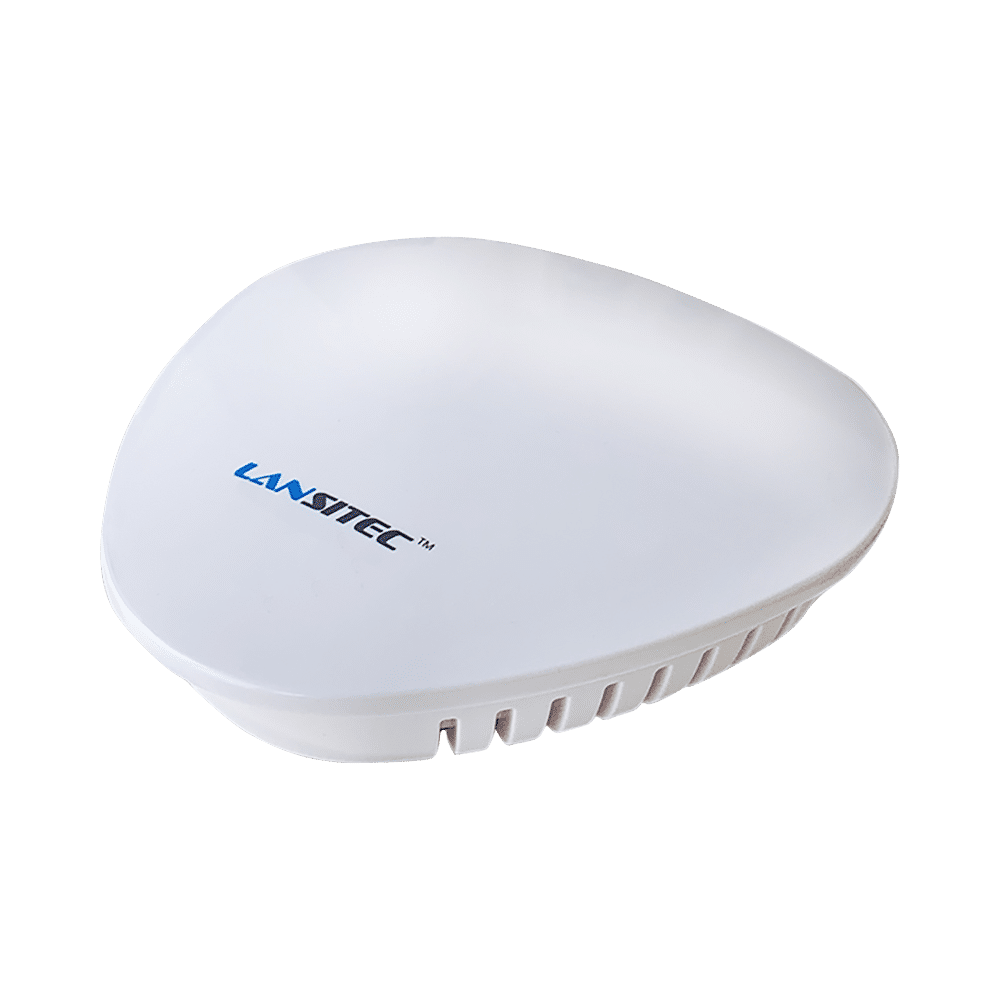

NB-IoT & LTE-M Indoor Bluetooth Gateway
The 100-NBBG5 NB-IoT & LTE-M Indoor Bluetooth Gateway collects Bluetooth 5.0 signals from compatible asset beacons, staff badges and wireless sensors and sends selected data to an IoT server over NB-IoT or LTE-M cellular connectivity. It is designed for indoor asset visibility, visitor monitoring, smart buildings, factories and hospitals where local Wi-Fi networking is unavailable or undesirable. The gateway receives iBeacon, Eddystone and proprietary BLE data, supports configurable packet filtering and compression, and forwards reports using MQTT or HTTP. It can process up to 200 received beacon messages per second and includes 15 beacon messages in a standard reporting package.
Applications
Indoor Asset Tracking
Personnel Tracking
Wireless Sensor Networking
Facility Monitoring
Remote Sensor Monitoring
Warehouse Monitoring
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-NBBG5 |
| Product Model | NB-IoT & LTE-M Indoor Bluetooth Gateway |
| Product Category | Edge Networking / BLE Gateways |
| Gateway Function | Bluetooth Low Energy indoor beacon receiver with NB-IoT / LTE-M cellular uplink |
| Cellular Connectivity | NB-IoT (Cat NB1/NB2) and LTE-M (Cat M1); regional radio variant required |
| SIM Type | Nano SIM or eSIM |
| Server Reporting Protocols | MQTT, HTTP (HTTPS transport as supported with TLS 1.2) |
| LoRaWAN | Optional OEM configuration, not standard |
| 2.4 GHz Wi-Fi | Optional for positioning only; not standard backhaul |
| Bluetooth Version | Bluetooth 5.0 |
| Supported Bluetooth Payloads | iBeacon, Eddystone, proprietary BLE beacon and sensor frames |
| Bluetooth TX Power | -20 to +4 dBm, adjustable in 4 dBm steps |
| Bluetooth Sensitivity | -96 dBm |
| Bluetooth Reception Distance | Up to 120 m in clear line-of-sight, OEM reference |
| BLE Positioning Accuracy | Approximately 3 m with compatible BLE beacon / tracking infrastructure |
| Beacon Reception Throughput | Up to 200 messages per second |
| Default Uplink Message Bundle | 15 beacon messages per cellular package |
| BLE Payload Filtering | Configurable, including selected bytes from BLE advertisements |
| BLE Data Compression | Supported |
| Transport Encryption | TLS 1.2 |
| Payload Security | AES-128 highlighted in current OEM marketing features; deployment security depends on application |
| Position / Report Interval | 5 s × n (n=1 to 65,536) |
| Heartbeat Report Interval | 30 s × n (n=1 to 65,536) |
| Geo-Fence / Boundary Rules | Supported with compatible RTLS software |
| Firmware Updates | FOTA over Bluetooth |
| External Power | 5 V DC / 1 A |
| Charging Interface | Micro USB |
| Backup Battery Type | Rechargeable lithium-ion |
| Backup Battery Capacity | 600 mAh |
| OEM Backup Runtime | Approximately 10 hours under reference operating conditions |
| Status LED | Supported |
| Dimensions | 120 × 120 × 31 mm |
| Weight | 175 g |
| Operating Temperature | -40°C to +85°C (OEM technical specification) |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 5–95% RH, non-condensing |
| Indoor / Outdoor Rating | Designed for indoor installations; ingress protection rating not listed on OEM product page |
| Certifications Listed by OEM | CE, FCC, RCM (confirm exact supplied regional model and documentation) |
| Deployment Requirements | 5 V / 1 A supply, supported NB-IoT/LTE-M coverage, activated SIM/eSIM and configured MQTT/HTTP server |
Product Features
- Cellular Bluetooth Data Gateway: Receives BLE 5.0 advertisements and uploads compatible beacon and sensor data to a tracking server over NB-IoT or LTE-M, without requiring on-site Wi-Fi as the primary uplink.
- High-Throughput BLE Data Collection: The OEM specifies receiving up to 200 beacon messages per second and a default transmission bundle of 15 beacon messages per cellular report.
- Wide Indoor Bluetooth Coverage: BLE reception reaches up to 120 m clear line-of-sight; approximately 3 m indoor positioning accuracy requires the right beacon geometry and compatible RTLS software.
- Rechargeable Backup Battery: A 600 mAh Li-ion backup battery provides roughly 10 hours of outage continuity in reference conditions while external 5 V/1 A Micro-USB power supports normal operation.
- Secure Data Integration: Uses MQTT or HTTP transport, with TLS 1.2 encryption and configurable data compression/filtering to reduce bandwidth and cloud ingestion cost.
- Configurable Reporting: Adjustable position/report intervals (5 s × n) and heartbeat intervals (30 s × n), where n is 1–65,536, support application-specific data freshness.
- Deployment and Management: Wall- or ceiling-friendly compact 120 × 120 × 31 mm housing, status LED, Bluetooth firmware upgrades and geo-fence event applications with compatible software.
- Optional Radio Configurations: The OEM lists LoRaWAN as optional and 2.4 GHz Wi-Fi as an optional positioning-only feature; these are not the standard cellular data backhaul.
Package Includes
- 1 × Lansitec 100-NBBG5 NB-IoT & LTE-M Indoor Bluetooth Gateway with built-in 600 mAh rechargeable Li-ion backup battery
Micro-USB charging cable, 5 V/1 A adapter, wall/ceiling hardware, active SIM/eSIM, BLE tags and RTLS/cloud subscriptions are not confirmed as standard package inclusions; verify the accepted supplier packing list.
Frequently Asked Questions
What is the Lansitec 100-NBBG5 NB-IoT & LTE-M Indoor Bluetooth Gateway used for?
Does the 100-NBBG5 require Wi-Fi or Ethernet to send data?
How far does Bluetooth reach, and how many beacon messages can it receive?
What power supply and backup battery does the Indoor Bluetooth Gateway use?
Can the gateway be configured and updated, and what certifications are listed?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 indoor gateway with cellular NB-IoT and LTE-M backhaul
- Receives iBeacon, Eddystone and compatible proprietary BLE beacons / sensors
- Up to 120 m Bluetooth reception in clear line of sight
- High-throughput BLE receiver: up to 200 beacon messages per second
- Reports 15 BLE beacon messages per default cellular packet
- 5 V / 1 A external power with 600 mAh rechargeable Li-ion backup battery (~10 h under reference conditions)
- MQTT / HTTP server reporting with TLS 1.2 encrypted connectivity
- Configurable Bluetooth payload filtering/compression, report intervals, geo-fence support and Bluetooth FOTA
