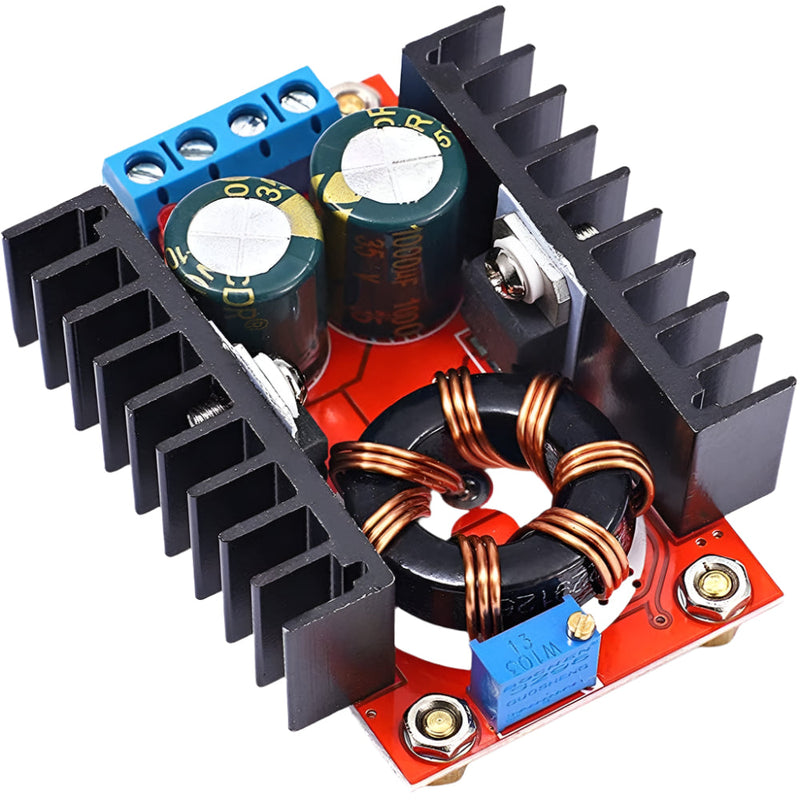

120W 12-32V to 35-60V 6A DC-DC Boost Converter Module
120W 12-32V to 35-60V 6A DC-DC Boost Converter Module
Low Stock, 5 left
Product Description
Adjustable 120W DC-DC boost converter designed to step 12–32VDC input up to a higher 35–60VDC output. Its non-isolated step-up architecture, multi-turn adjustment and onboard indicator suit battery systems, higher-voltage DC loads and electronics prototyping.
Applications
Product Specifications
| Converter Type | Non-isolated boost / step-up |
|---|---|
| Input Voltage | 12–32VDC |
| Output Voltage | 35–60VDC adjustable |
| Output Rating | Up to 6A / 120W class per product title and description |
| Input Current | Up to 16A; enhanced cooling recommended at high current |
| Adjustment | Multi-turn potentiometer |
| Protection | No reverse-polarity or short-circuit protection |
Product Features
- High Step-Up Range
Converts a 12–32V DC source to an adjustable 35–60V DC output. - 120W Class Module
Designed for higher-power DC conversion with suitable cooling and wiring. - Fine Voltage Control
Multi-turn adjustment helps set the desired output before connecting a load. - Project Integration
Screw terminals and visible power indication simplify prototype use.
Package Includes
1 × 120W 12-32V to 35-60V 6A DC-DC Boost Converter ModuleOther Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 120W non-isolated boost converter
- 12–32VDC input
- 35–60VDC adjustable output
- 6A product-rated output
- Multi-turn voltage adjustment
- Onboard LED power indication
- Heavy-duty inductor and heatsinking
