3.2 Inch TFT LCD Touch Screen Display V4.0 for Raspberry Pi
3.2 Inch TFT LCD Touch Screen Display V4.0 for Raspberry Pi
Lead Time
Product Description
The 3.2 Inch TFT LCD Touch Screen Display V4.0 for Raspberry Pi offers a bright, colourful 3.2-inch display with 240 × 320 pixels and individual RGB pixel control. Its attached resistive touchscreen detects finger or stylus presses across the screen.
The display includes a controller with RAM buffering to reduce the processing work required from the host. It communicates through SPI (Serial Peripheral Interface) and mounts directly onto compatible Raspberry Pi GPIO pins, drawing power through the GPIO connection without a separate display power supply.
This module provides a compact alternative to an HDMI display for compatible Raspberry Pi projects. LCD and touchscreen drivers must be installed and configured in the operating system; suitable drivers are provided for compatible custom Raspbian and Ubuntu images.
Power recommendation: Use a suitable 5V, 2A power adapter for the compatible Raspberry Pi setup. An insufficient PC USB power supply may prevent reliable startup.
Applications
Product Specifications
| Item Type | Display |
| Version | V4.0 |
| Display Size (Inch) | 3.2 |
| Touchscreen | Yes — resistive |
| Resolution | 240 × 320 pixels |
| Operating Voltage | DC 5V |
| Touch Controller | XPT2046 |
| Interface | SPI / Raspberry Pi GPIO |
| Shipping Weight | 0.15 kg |
| Shipping Dimensions | 10 × 6 × 3 cm |
Product Features
- 240 × 320 pixel resolution with touch support
- SPI communication and direct Raspberry Pi GPIO mounting
- Designed for Raspberry Pi Model B/B+; listed compatibility includes A+, B, B+, Raspberry Pi 2 Model B and Raspberry Pi 3 Model B
- Drivers provided for compatible custom Raspbian and Ubuntu systems
- Three buttons for application controls
- Immersion-gold PCB finish
- Supports video playback, including MP4, with suitable software
- Touch-operated photo capture and camera modes with suitable camera hardware and software
- Software keyboard support for interaction without a physical keyboard or mouse
- Web browsing through the configured Raspberry Pi system

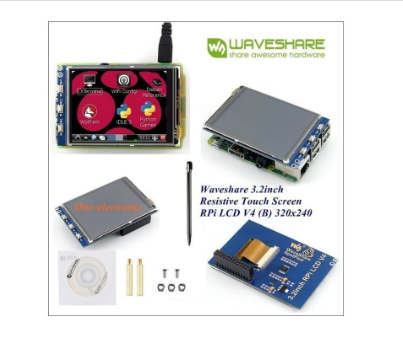

Package Includes
- 1 × 3.2 Inch TFT LCD Screen for Raspberry Pi
- 1 × Resistive touchscreen pen / stylus
- 1 × Standoff and nut-bolt set
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time for orders within India is 7-10 working days. Delivery varies based on location and courier service.
- Delivery time for orders outside India is up to 20 working days. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Version: V4.0
- Resistive touchscreen
- Display size: 3.2 inch
- Operating voltage: DC 5V
- Touch controller: XPT2046
- Resolution: 240 × 320 pixels
