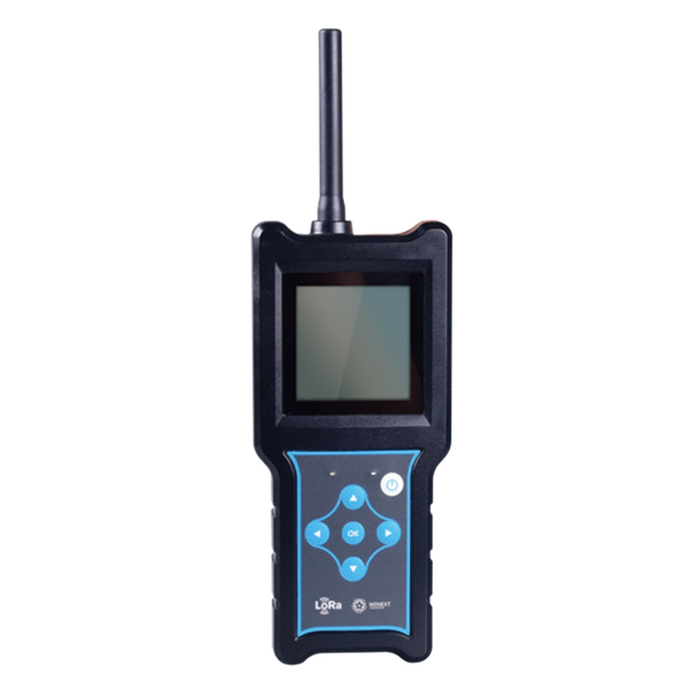

AN-106 LoRa Tester, LoRaWAN Signal Tester
Low Stock, 1 left
Product Description
AN-106 LoRa Tester, LoRaWAN Signal Tester is designed for the observation, measurement or test functions listed below. It suits bench or field work that falls within the instrument’s stated capabilities and operating limits. Protocol support is listed as LoRaWAN Class A. The Maximum Tx Power specification is 19dBm. Power is provided through the stated Built-in rechargeable battery arrangement. When choosing this lorawan signal tester, start with the documented configuration.
Choose the instrument around the quantity being investigated and the specified range. Display and portability are useful practical details, while input limits, accessories and any setup requirements determine how it can be used for a test. The Battery Capacity specification is 3.7V / 3500mAh. It accepts DC 3.7V at the specified input. The Power Consumption specification is 110mW. The Frequency Bands specification is CN470–510 MHz / EU863–870 MHz / US902–928 MHz / AS923 MHz / AU915–928 MHz (optional). The dimensions figure is 295 × 85.5 × 29.5 mm.
Applications
IoT Gateway Connectivity
Network Infrastructure Monitoring
Remote Device Management
Wireless Sensor Networking
Product Specifications
| Brand | Winext |
| Model | AN-106 |
| Product Type | LoRaWAN Signal Tester |
| Data Transmission Rate | 300bps–5.4Kbps |
| Frequency Bands | CN470–510 MHz / EU863–870 MHz / US902–928 MHz / AS923 MHz / AU915–928 MHz (optional) |
| Protocol | LoRaWAN Class A |
| GPS Positioning Accuracy | Within 5 m |
| Maximum Tx Power | 19dBm |
| Rx Sensitivity | -141dBm (SF12) |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–95% |
| Power Supply | Built-in rechargeable battery |
| Battery Capacity | 3.7V / 3500mAh |
| Supply Voltage | DC 3.7V |
| Tx Current | ≤125mA |
| Rx Current | ≤16mA |
| Power Consumption | 110mW |
| Dimensions | 295 × 85.5 × 29.5 mm |
Product Features
- Portable LoRaWAN signal-quality tester intended for gateway commissioning, site surveys and coverage verification.
- Measures uplink and downlink packet-loss performance to help identify weak or unreliable communication areas.
- Displays Received Signal Strength Indicator (RSSI) and Signal-to-Noise Ratio (SNR) values received during gateway communication.
- Provided by Integrated GPS: location information with positioning accuracy within 5 m for mapping field-test points.
- Allowed by LCD interface: technicians to review network and test information directly in the field.
- Supported by Built-in 3.7V / 3500mAh rechargeable battery: extended portable operation of up to 36 hours.
- Available functions include multiple commonly used LoRaWAN regional frequency bands for deployment across different markets.
- Use this version for LoRaWAN deployment validation in smart-city, smart-building, agricultural and transportation networks.
Package Includes
- 1 × Winext AN-106 LoRa Signal Tester
Frequently Asked Questions
What is the AN-106 LoRa Tester, LoRaWAN Signal Tester used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
